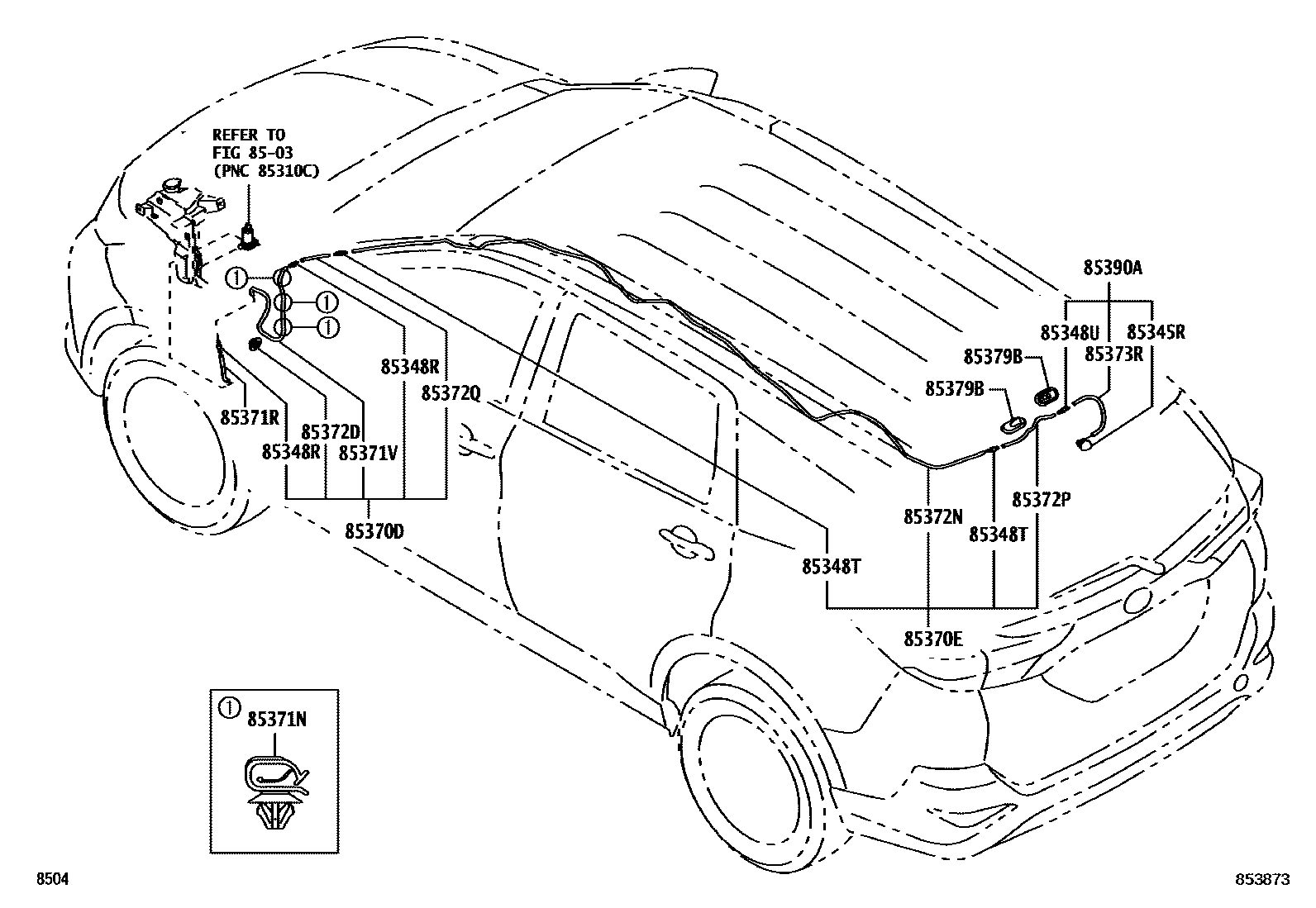

Toyota RUSH — REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-BZ120i201712-202305

85348RJOINT, REAR WASHER HOSE, NO.1

main85317-BZ080×2i201712-202305

85348TJOINT, REAR WASHER HOSE, NO.2

main85317-BZ080×2i201712-202305

85348UJOINT, REAR WASHER HOSE, NO.3

main85317-BZ080i201712-202305

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-BZB20i201712-202305

85370EHOSE ASSY, REAR WASHER, NO.2

main85370-BZB30i201712-202305

85371NCLAMP, REAR WASHER HOSE

main82711-BZ100×3i201712-202305

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main85374-BZA60i201712-202305

*H,L=100

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main85374-BZE40i201712-202305

*H,L=690

85372DGROMMET, REAR WASHER HOSE

main90044-80126i201712

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main85374-BZE60i201712-202305

*H,L=3000

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main85374-BZF60i201712-202305

*H,L=270

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main85374-BZE50i201712

*H,L=110

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main85374-BZ370i201908-202305

*H,L=210

main85374-BZE80i201712-201907

*H,L=240

85379BGROMMET, WASHER, A

main85373-BZ010×2i201712-202305

85390ANOZZLE & HOSE ASSY, RR WASHER

main85390-BZ250i201712-202305

17 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota RUSH

This section contains 17 genuine Toyota parts for the REAR WASHER system of the Toyota RUSH. Key components include: WINDSHIELD WASHER, NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER HOSE, NO.2, JOINT, REAR WASHER HOSE, NO.3.
