Toyota RUSH — REAR SPRING & SHOCK ABSORBER

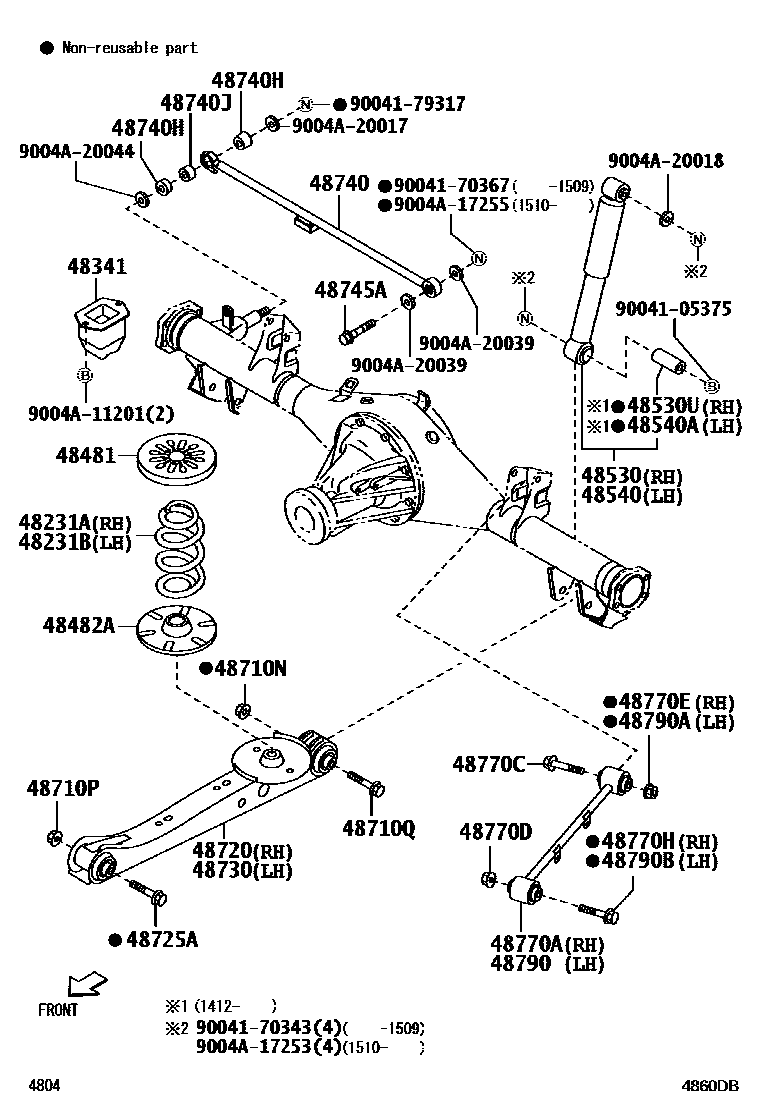

Parts diagram
48231ASPRING, COIL, REAR RH
main48231-BZ150i200612-201009
main48231-BZ160i200712-201009
main48231-BZ320i201010-201402
OD=13.7
main48231-BZ321i201402-201503
OD=15.4
main48231-BZ750i201602
TRD RUSH SPECAL EDITION
48231BSPRING, COIL, REAR LH
main48231-BZ150i200612-201009
main48231-BZ160i201010-201503
main48231-BZ320i201010-201402
OD=13.7
main48231-BZ321i201402-201503
OD=15.4
main48231-BZ750i201602
TRD RUSH SPECAL EDITION
48341BUMPER, REAR SPRING
main48341-BZ010×2i200612-201009
48481SEAT, REAR SPRING, UPPER
main48481-BZ010×2i200612-201009
48482ASEAT, REAR SPRING, LOWER
main48482-BZ010×2i201503
48530ABSORBER ASSY, SHOCK, REAR RH
main48531-BZ220i200612-201009
MARK 48531-BZ220
main48531-BZ290i200712-201009
MARK 48531-BZ290
main48531-BZ291i201012-201312
MARK 48531-BZ291
main48531-BZ292i201401-201411
MARK 48531-BZ292
main48531-BZ293i201412-201503
MARK 48531-BZ293
main48531-BZ410i201010-201312
MARK 48531-BZ410
main48531-BZ411i201401-201402
MARK 48531-BZ411
main48531-BZ412i201402-201411
MARK 48531-BZ412
main48531-BZ413i201412-201503
MARK 48531-BZ413
main48531-BZ860i201503-201504
MARK 48531-BZ860
main48531-BZ861i201504
MARK 48531-BZ861
main48531-BZA80i201602
MARK 48531-BZA80,TRD RUSH SPECAL EDITION
48530UBUSH(FOR REAR SHOCK ABSORBER RH)
main48537-BZ040i201412-201503
48540ABSORBER ASSY, SHOCK, REAR LH
main48531-BZ220i200612-201009
MARK 48531-BZ220
main48531-BZ290i200712-201009
MARK 48531-BZ290
main48531-BZ291i201012-201312
MARK 48531-BZ291
main48531-BZ292i201401-201411
MARK 48531-BZ292
main48531-BZ293i201412-201503
MARK 48531-BZ293
main48531-BZ410i201010-201312
MARK 48531-BZ410
main48531-BZ411i201401-201402
MARK 48531-BZ411
main48531-BZ412i201402-201411
MARK 48531-BZ412
main48531-BZ413i201412-201503
MARK 48531-BZ413
main48531-BZ860i201503-201504
MARK 48531-BZ860
main48531-BZ861i201504
MARK 48531-BZ861
main48531-BZA80i201602
MARK 48531-BZA80,TRD RUSH SPECAL EDITION
48540ABUSH(FOR REAR SHOCK ABSORBER LH)
main48537-BZ040i201412-201503
48710NNUT, NO.1(FOR REAR LOWER CONTROL ARM)
main90041-70366×2i200612-201009
main9004A-17254×2i201510
48710PNUT, NO.2(FOR REAR LOWER CONTROL ARM)
main90041-79318×2i200612-201009
main9004A-17257×2i201510
48710QBOLT(FOR REAR LOWER CONTROL ARM)
main90041-01664×2i201503-201510
main9004A-10159×2i201511
48720ARM ASSY, LOWER CONTROL, RH
main48720-BZ020i200612-201009
main48720-BZ021i201204-201503
48725ABOLT(FOR LOWER CONTROL ARM)
main90041-01663×2i200612-201009
main90041-05378×2i201108-201503
main9004A-10149×2i201511
48730ARM ASSY, LOWER CONTROL, LH
main48720-BZ020i200612-201009
main48720-BZ021i201204-201503
48740ROD ASSY, REAR LATERAL CONTROL
main48740-BZ030i200612-201009
main48740-BZ031i201403-201503
48740HBUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
main48706-BZ060×2i201402-201503
main90043-85149×2i200612-201009
48740JBUSH, NO.2(FOR REAR LATERAL CONTROL ROD)
main90043-86103i200612-201009
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
main90041-05407i200612-201009
main9004A-10160i201511
48770AARM ASSY, UPPER CONTROL, REAR RH
main48710-BZ010supersedes 48710-BZ021i201010-201203
main48710-BZ011i201204-201503
ABS(ANTI-LOCK BRK SYSTM)-W/O ABS,L/ABS; L/ABS
main48710-BZ021i201503
W/ABS
main48710-BZ061supersedes 48710-BZ072i200612-201009
main48710-BZ062i201204-201503
ABS(ANTI-LOCK BRK SYSTM)-W/O ABS
main48710-BZ072i201503
48770CBOLT(FOR REAR UPPER CONTROL ARM)
main90041-01662×2i201010-201503
main9004A-10157×2i201511
48770DNUT(FOR REAR UPPER CONTROL ARM)
main90041-79318×2i201503-201509
main9004A-17257×2i201510
48770ENUT, NO.1(FOR REAR UPPER CONTROL ARM RH)
main90041-70366i200612-201009
main9004A-17254i201510
48770HBOLT(FOR REAR UPPER CONTROL ARM RH)
main90041-01661i200612-201009
main9004A-10152i201511
48790ARM ASSY, UPPER CONTROL, REAR LH
main48710-BZ010supersedes 48710-BZ021i201010-201203
main48710-BZ011i201204-201503
ABS(ANTI-LOCK BRK SYSTM)-W/O ABS,L/ABS; L/ABS
main48710-BZ021i201503
W/ABS
main48710-BZ061supersedes 48710-BZ072i200612-201009
main48710-BZ062i201204-201503
ABS(ANTI-LOCK BRK SYSTM)-W/O ABS
main48710-BZ072i201503
48790ANUT, NO.1(FOR REAR UPPER CONTROL ARM LH)
main90041-70366i201010-201503
main9004A-17254i201510
48790BBOLT(FOR REAR UPPER CONTROL ARM LH)
main90041-01661i201503-201510
main9004A-10152i201511
9004105375
main90041-05375
9004170343
main90041-70343
9004170367
main90041-70367
9004179317
main90041-79317
9004A11201
main9004A-11201
9004A17253
main9004A-17253
9004A17255
main9004A-17255
9004A20017
main9004A-20017
9004A20018
main9004A-20018
9004A20039
main9004A-20039
9004A20044
main9004A-20044

38 parts on this diagram · 1 diagram in section

REAR SPRING & SHOCK ABSORBER for Toyota RUSH

This section contains 38 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota RUSH. Key components include: SPRING, COIL, REAR RH, SPRING, COIL, REAR LH, BUMPER, REAR SPRING, SEAT, REAR SPRING, UPPER, SEAT, REAR SPRING, LOWER.
