Toyota RUSH — REAR COMBINATION LAMP

81496GUIDE, REAR COMBINATION LAMP

main81496-B4010×2i200811-200911

81550LAMP ASSY, REAR COMBINATION, RH

main81550-B4060i200811-200911

81550HBULB, TAIL & STOP LAMP

main90049-51130×2i200811-200911

81550LBULB, REAR TURN SIGNAL LAMP

main90049-51179×2i200811-200911

81550NBULB, BACK UP LAMP

main90049-51194×2i200811-201806

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-B4050i200811-200911

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-B4010i200811-200911

81560LAMP ASSY, REAR COMBINATION, LH

main81560-B4060i200811-200911

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-B4060i200811-200911

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-B4010i200811-200911

81559B2020MOULDING, REAR COMBINATION LAMP, RH

main81559-B2020

9004119693

main90041-19693

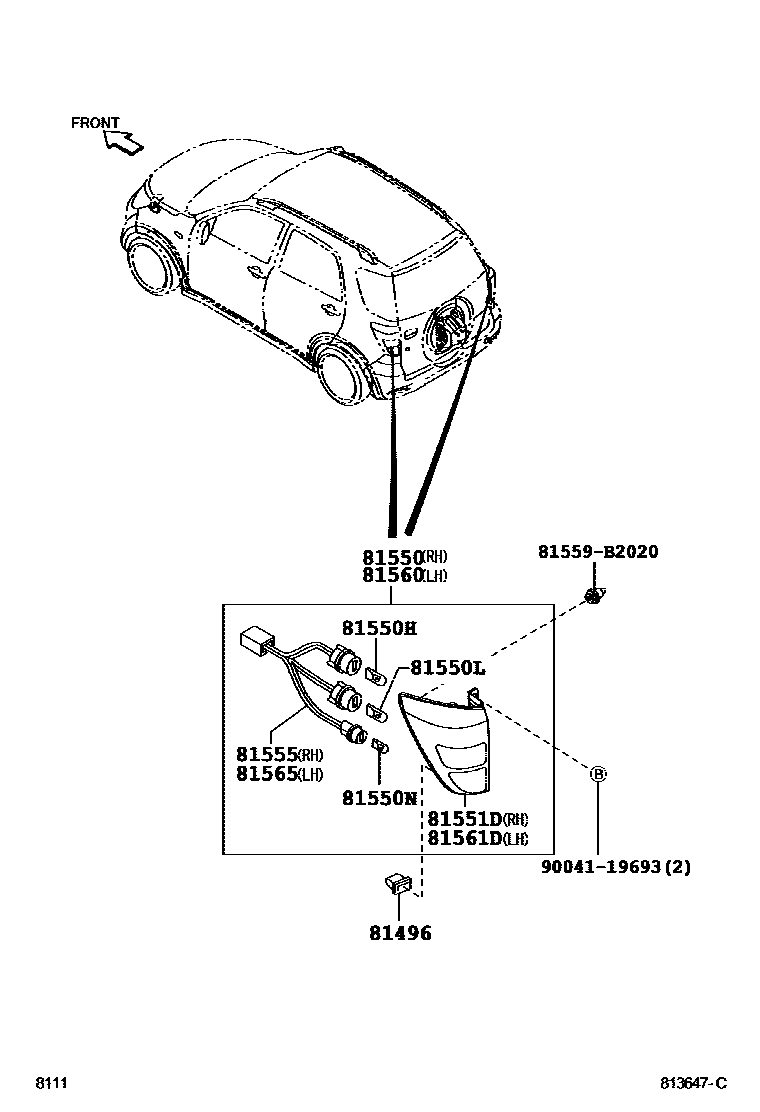

12 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota RUSH

This section contains 12 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota RUSH. Key components include: GUIDE, REAR COMBINATION LAMP, LAMP ASSY, REAR COMBINATION, RH, BULB, TAIL & STOP LAMP, BULB, REAR TURN SIGNAL LAMP, BULB, BACK UP LAMP.
