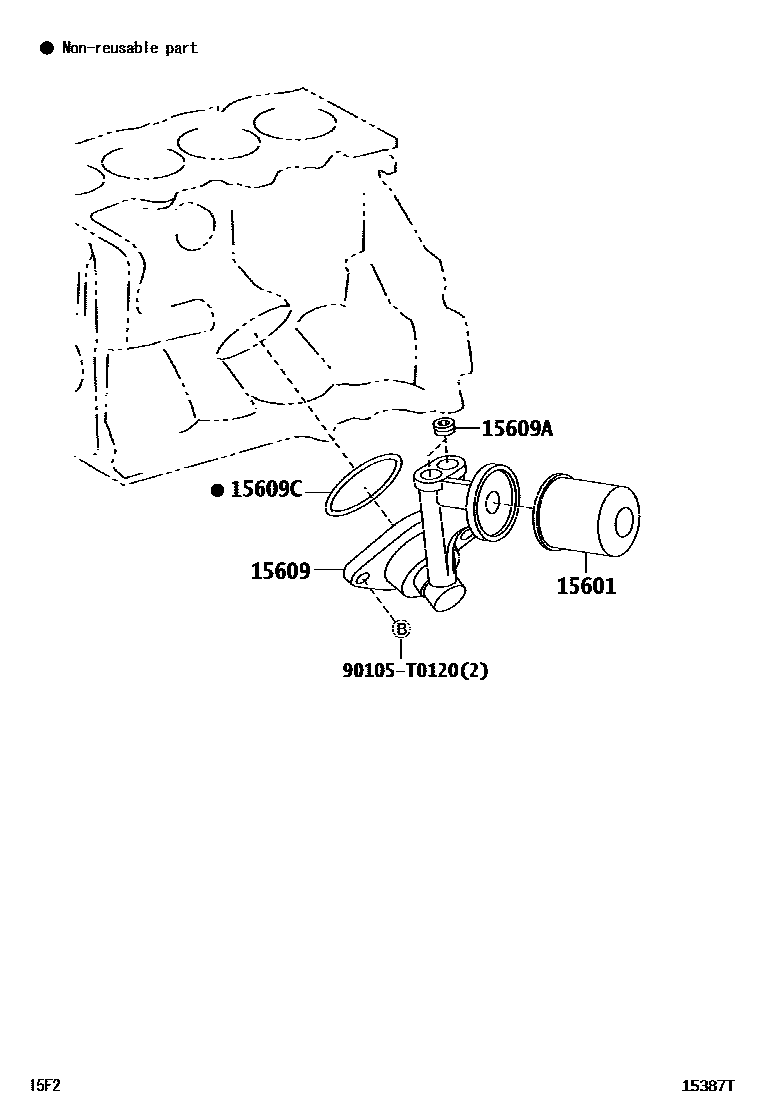

Toyota RUSH — OIL FILTER

15601FILTER SUB-ASSY, OIL

main15601-BZ010i200612-201009

15609BRACKET SUB-ASSY, OIL FILTER

main15671-BZ010i200612-201009

15609APLUG, TAPER SCREW(FOR OIL FILTER BRACKET)

main90043-44019×2i200612-201009

15609CGASKET(FOR OIL FILTER BRACKET UNION)

main9004A-30011i200612-201009

main9004A-30057i201408-201503

90105T0120

main90105-T0120

5 parts on this diagram · 1 diagram in section

OIL FILTER for Toyota RUSH

This section contains 5 genuine Toyota parts for the OIL FILTER system of the Toyota RUSH. Key components include: FILTER SUB-ASSY, OIL, BRACKET SUB-ASSY, OIL FILTER, PLUG, TAPER SCREW(FOR OIL FILTER BRACKET), GASKET(FOR OIL FILTER BRACKET UNION).
