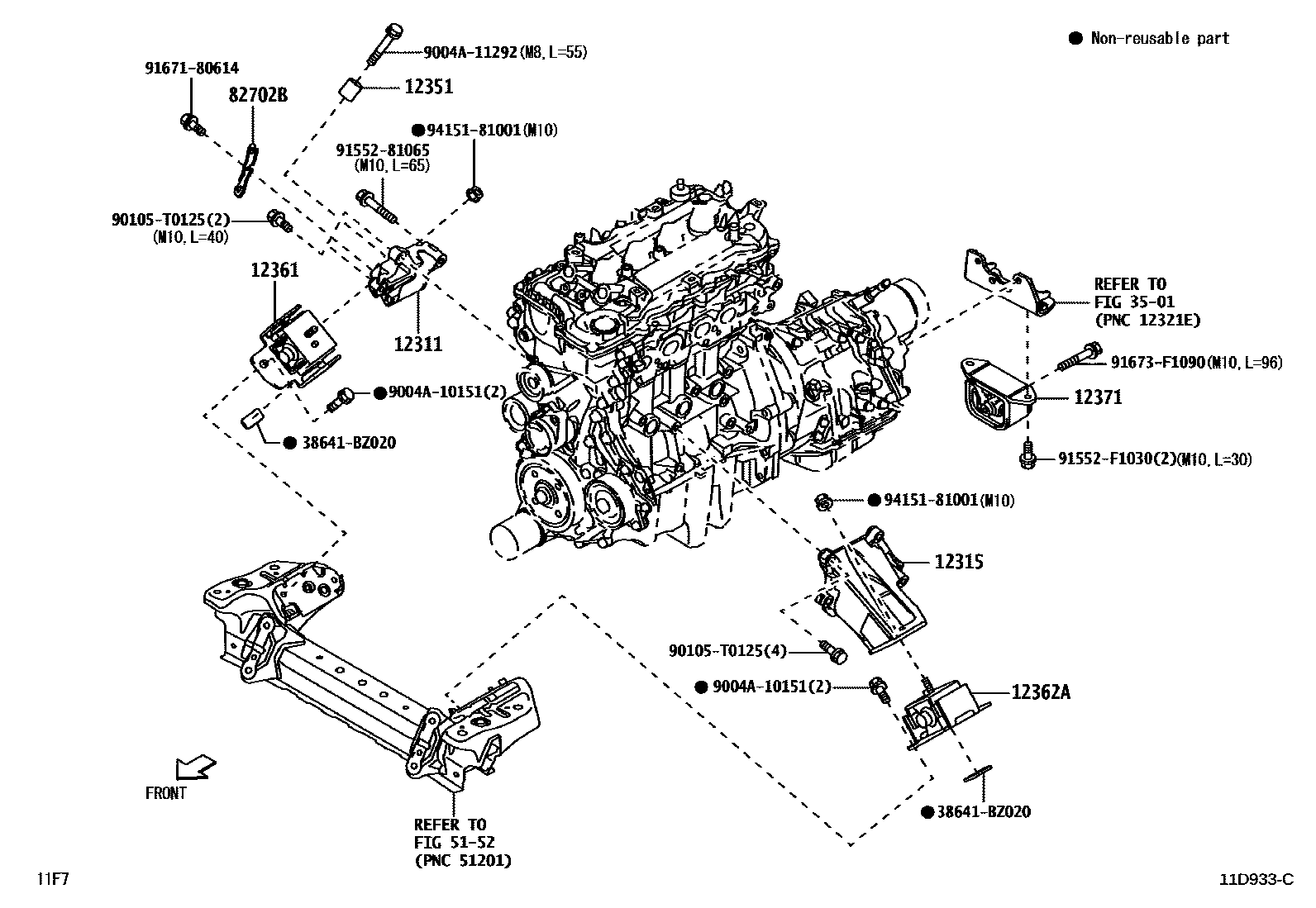

Toyota RUSH — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-BZ140i2NRVE..F850201812-202310

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-BZ060i2NRVE..F850201812-202310

12351DAMPER, ENGINE MOUNTING

main12351-BZ040i2NRVE..F850201812-202310

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-BZ200i2NRVE..F850201812-202310

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12361-BZ200i2NRVE..F850201812-202310

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-BZ170i2NRVE..F850201812-202310

3501

5152

82702BBRACKET SUB-ASSY, WIRING HARNESS

main82715-BZG00iF850201812-202310

38641BZ020GASKET (FOR WINCH CONTROL SWITCH)

main38641-BZ020

9004A10151

main9004A-10151

9004A11292

main9004A-11292

90105T0125

main90105-T0125

9155281065

main91552-81065

91552F1030

main91552-F1030

9167180614

main91671-80614

91673F1090

main91673-F1090

9415181001

main94151-81001

18 parts on this diagram · 1 diagram in section
