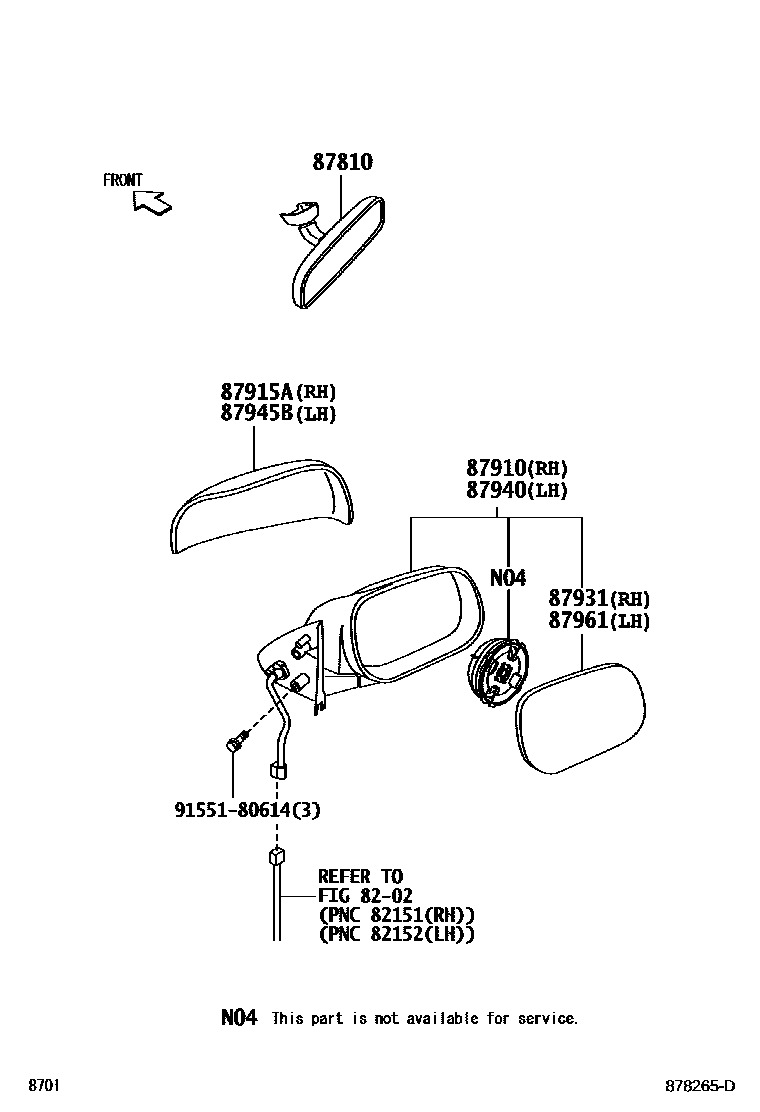

Toyota RUSH — MIRROR
8202WIRING & CLAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915ACOVER, OUTER MIRROR, RH
WHITE W20 ONAJI 2C1B,W23
SILVER ME.,S28
GRAY ME.,S33
BLACK M.M.,X07
RED,R40
CHAMPAGNE ME.,T23
BRITISH GREEN MC.,G37
BLUE M.M.,B58
HI-G PACKAGE,WHITE PEARL MC.CS,W24; MID PACKAGE,WHITE PEARL MC.CS,W24
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945BCOVER, OUTER MIRROR, LH
WHITE W20 ONAJI 2C1B,W23
SILVER ME.,S28
GRAY ME.,S33
BLACK M.M.,X07
RED,R40
CHAMPAGNE ME.,T23
BRITISH GREEN MC.,G37
BLUE M.M.,B58
HI-G PACKAGE,WHITE PEARL MC.CS,W24; MID PACKAGE,WHITE PEARL MC.CS,W24
87961MIRROR OUTER, LH
9155180614
main91551-80614
9 parts on this diagram · 1 diagram in section
MIRROR for Toyota RUSH
This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota RUSH. Key components include: WIRING & CLAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
