Toyota RUSH — MIRROR

8106

8202

8420

87810MIRROR ASSY, INNER REAR VIEW

main87810-BZ080iF800201712

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-BZ010iF800201712

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-BZ051-B1iF800..E4AT..HI..GCC;F800..5F..HI..(GCC,VN);F800..MID..(GCC,GEN,PH,VN)201712

LT.GRAY,TRIM1#

main87834-BZ051-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-BZ030iF800..GEN,IDN,PH,VN201712

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-BZ030iF800..GEN,IDN,PH,VN201712

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-BZC00iF800..RHD..MID..GEN201804

main87910-BZC10iF800..MID..IDN201712

main87910-BZC20iF800..RHD..HI201712

main87910-BZC30iF800..LHD..MID..(GEN,VN)201804

main87910-BZC50iF800..MID..GCC201804-202401

main87910-BZC80iF800..HI..GCC201804-202401

main87910-BZD30iF800..LHD..HI..(GEN,PH,VN)201804

87915COVER, OUTER MIRROR, RH

main87915-BZ520iF800..MID..PH201712-202305

87915ACOVER, OUTER MIRROR, RH

main8791B-BZ010iF800..MID..PH201712-202305

87917BMIRROR, OUTER REAR VIEW, RH

main87917-BZ180iF800..MID..PH201712-202305

main87917-BZ190iF800..GCC201804-202401

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-BZ010iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-BZB60iF800..RHD..MID..GEN201804

main87940-BZB70iF800..MID..IDN201712

main87940-BZB80iF800..RHD..HI201712

main87940-BZB90iF800..LHD..MID..(GEN,VN)201804

main87940-BZC10iF800..MID..GCC201804-202401

main87940-BZC40iF800..HI..GCC201804-202401

main87940-BZC90iF800..LHD..HI..(GEN,PH,VN)201804

87945COVER, OUTER MIRROR, LH

main87945-BZ530iF800..MID..PH201712-202305

87945BCOVER, OUTER MIRROR, LH

main8794B-BZ010iF800..MID..PH201712-202305

87947BMIRROR, OUTER REAR VIEW, LH

main87947-BZ180iF800..MID..PH201712-202305

main87947-BZ190iF800..GCC201804-202401

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-BZ010iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

9004A14017

main9004A-14017

91671A0616

main91671-A0616

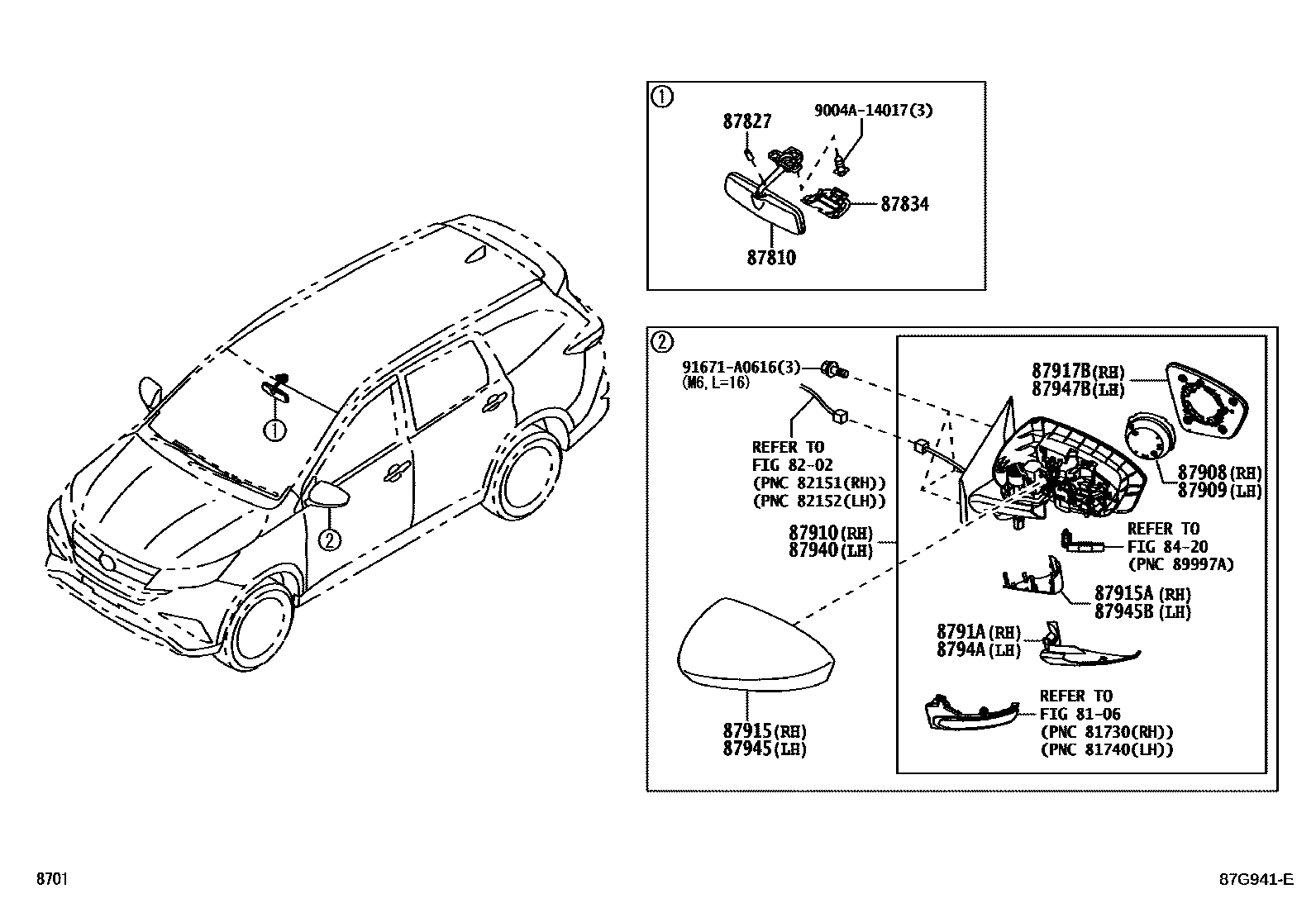

20 parts on this diagram · 1 diagram in section
