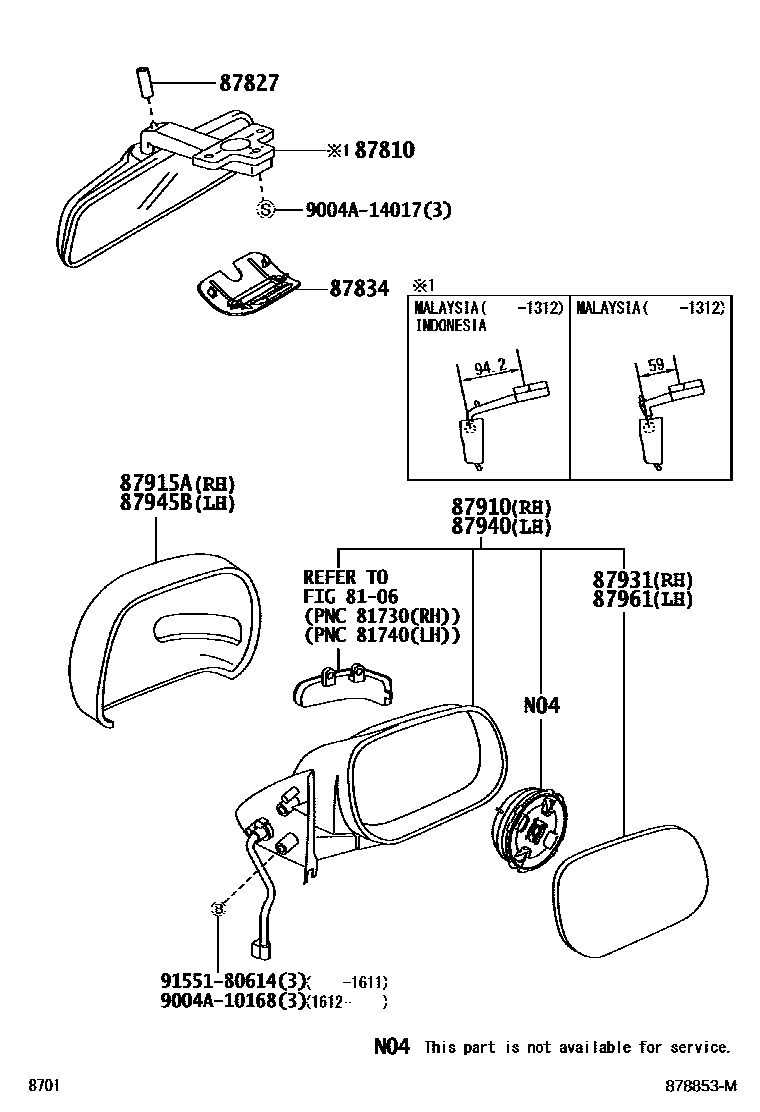

Toyota RUSH — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87827ABSORBER, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM4#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
GREGE,TRIM4#
87910MIRROR ASSY, OUTER REAR VIEW, RH
MANUAL FOLD MIRROR
POWER FOLDING MIRROR
87915ACOVER, OUTER MIRROR, RH
WHITE,W09,COLORED
SILVER M.M.,1E7,COLORED
GRAY ME.,S33,COLORED
GRAY ME.,S37,COLORED
BLACK MC.,209,COLORED
BLACK ME.,X12,COLORED
RED MC.,3M8,COLORED
MAROON MC.,R56,COLORED
CHAMPAGNE ME.,T23,COLORED
CHAMPAGNE M.M.,587,COLORED
BLUE ME.,8P1,COLORED
87940MIRROR ASSY, OUTER REAR VIEW, LH
POWER FOLDING MIRROR
87945BCOVER, OUTER MIRROR, LH
WHITE,W09,COLORED
SILVER M.M.,1E7,COLORED
GRAY ME.,S33,COLORED
GRAY ME.,S37,COLORED
BLACK MC.,209,COLORED
BLACK ME.,X12,COLORED
RED MC.,3M8,COLORED
MAROON MC.,R56,COLORED
CHAMPAGNE ME.,T23,COLORED
CHAMPAGNE M.M.,587,COLORED
BLUE ME.,8P1,COLORED
CHROME PLATED
9004A10168
main9004A-10168
9004A14017
main9004A-14017
9155180614
main91551-80614
13 parts on this diagram · 1 diagram in section
