Toyota RUSH — METER

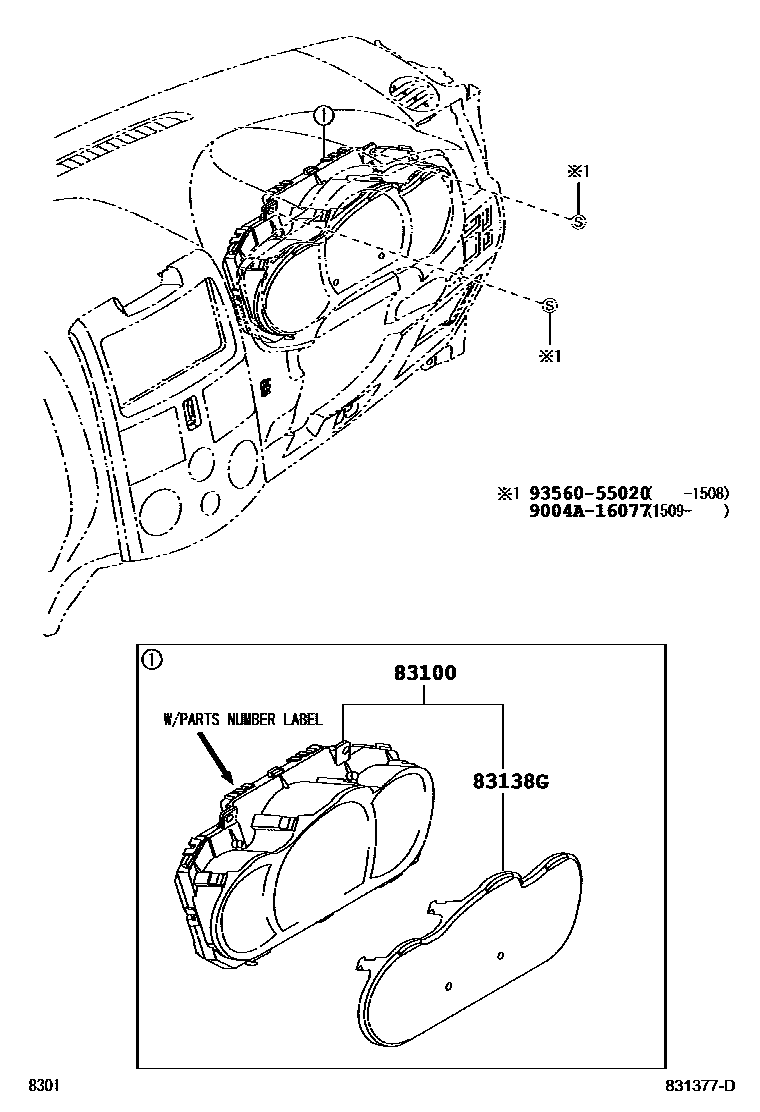

Parts diagram
83100METER ASSY, COMBINATION
main83800-BY480i201503-201508
W/PART NUMBER LABEL
main83800-BY481i201508
W/PART NUMBER LABEL
main83800-BY520i201503-201508
W/PART NUMBER LABEL
main83800-BY521i201508
W/PART NUMBER LABEL
main83800-BY540i201503-201508
W/PART NUMBER LABEL
main83800-BY541i201508-201701
W/PART NUMBER LABEL
main83800-BY542i201701
W/PART NUMBER LABEL
main83800-BY550i201503-201508
W/PART NUMBER LABEL
main83800-BY551i201508-201701
W/PART NUMBER LABEL
main83800-BY552i201701
W/PART NUMBER LABEL
main83800-BZ450i200712-201009
main83800-BZ451i201010-201312
W/PART NUMBER LABEL
main83800-BZ480i200712-201009
main83800-BZ481i201010-201312
W/PART NUMBER LABEL
main83800-BZ520i200612-201009
main83800-BZ521i201010-201307
W/PART NUMBER LABEL
main83800-BZ522i201307-201503
W/PART NUMBER LABEL
main83800-BZ530i201002-201009
main83800-BZ531i201010-201307
W/PART NUMBER LABEL
main83800-BZ532i201307-201503
W/PART NUMBER LABEL
main83800-BZ770i200612-201009
main83800-BZY30i201312-201503
W/PART NUMBER LABEL
main83800-BZY40i201312-201503
W/PART NUMBER LABEL
main83800-BZV00supersedes 83800-BZ762i201106-201307
ABS(ANTI-LOCK BRK SYSTM)-W/O ABS,W/PART NUMBER LABEL
main83800-BZV01supersedes 83800-BZ762i201307-201503
ABS(ANTI-LOCK BRK SYSTM)-W/O ABS,W/PART NUMBER LABEL
main83800-BZV10supersedes 83800-BZ771i201106-201503
ABS(ANTI-LOCK BRK SYSTM)-W/O ABS,W/PART NUMBER LABEL
main83800-BZY50supersedes 83800-BZY60i201312-201503
ABS(ANTI-LOCK BRK SYSTM)-W/O ABS,W/PART NUMBER LABEL
83138GGLASS, COMBINATION METER
main83852-BZ060i200612-201009
9004A16077
main9004A-16077
9356055020
main93560-55020

4 parts on this diagram · 1 diagram in section
