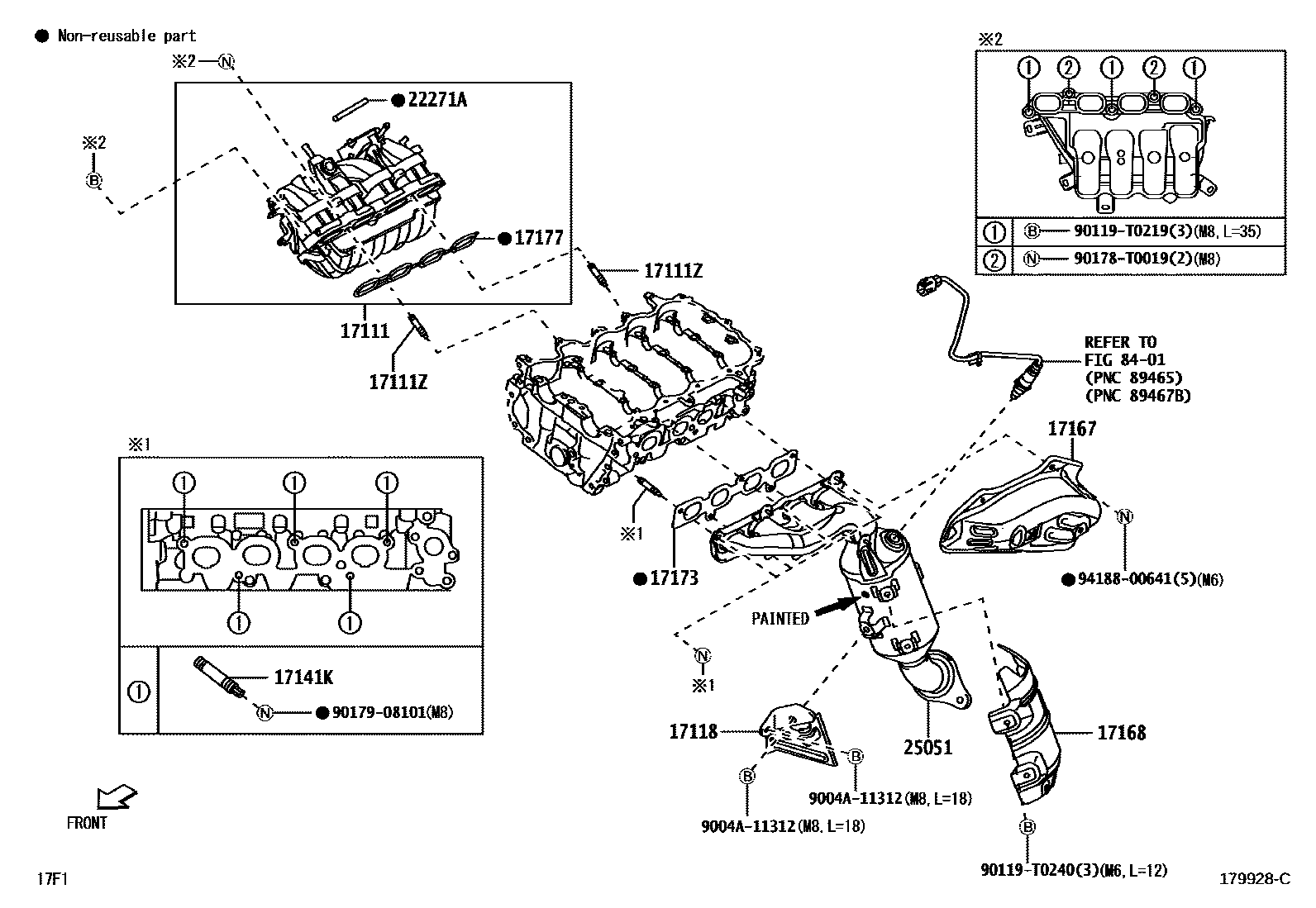

Toyota RUSH — MANIFOLD

17111MANIFOLD, INTAKE

main17120-BZ100i2NRVE..F800..MID..PH201712-202305

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main9004A-12001×2i2NRVE..F800..MID..PH201712-202305

17118STAY, MANIFOLD

main17118-BZ130i2NRVE..F800..MID..PH201712-202305

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08063×5i2NRVE..F800..MID..PH201712-202305

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-BZ070i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,IDN,VN201712

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-BZ020i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,IDN,VN201712

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-BZ070i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,IDN,VN201712

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-BZ030i2NRVE..F800..MID..PH201712-202305

22271AGASKET, THROTTLE BODY

main22271-0Y030i2NRVE..F800..MID..PH201712-202305

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-BZ010supersedes 25051-BZ110i2NRVE..F800..GCC,GEN201712

PAINTED=PINK

main25051-BZ110supersedes 25051-BZ110i2NRVE..F800..MID..PH201804-202305

PAINTED=YELLOW

main25051-BZ180i2NRVE..F800..RHD..E4AT..HI..GEN202101

MALAYSIA,PAINTED=PINK

8401

9004A11312

main9004A-11312

90119T0219

main90119-T0219

90119T0240

main90119-T0240

90178T0019

main90178-T0019

9017908101

main90179-08101

9418800641

main94188-00641

17 parts on this diagram · 1 diagram in section
