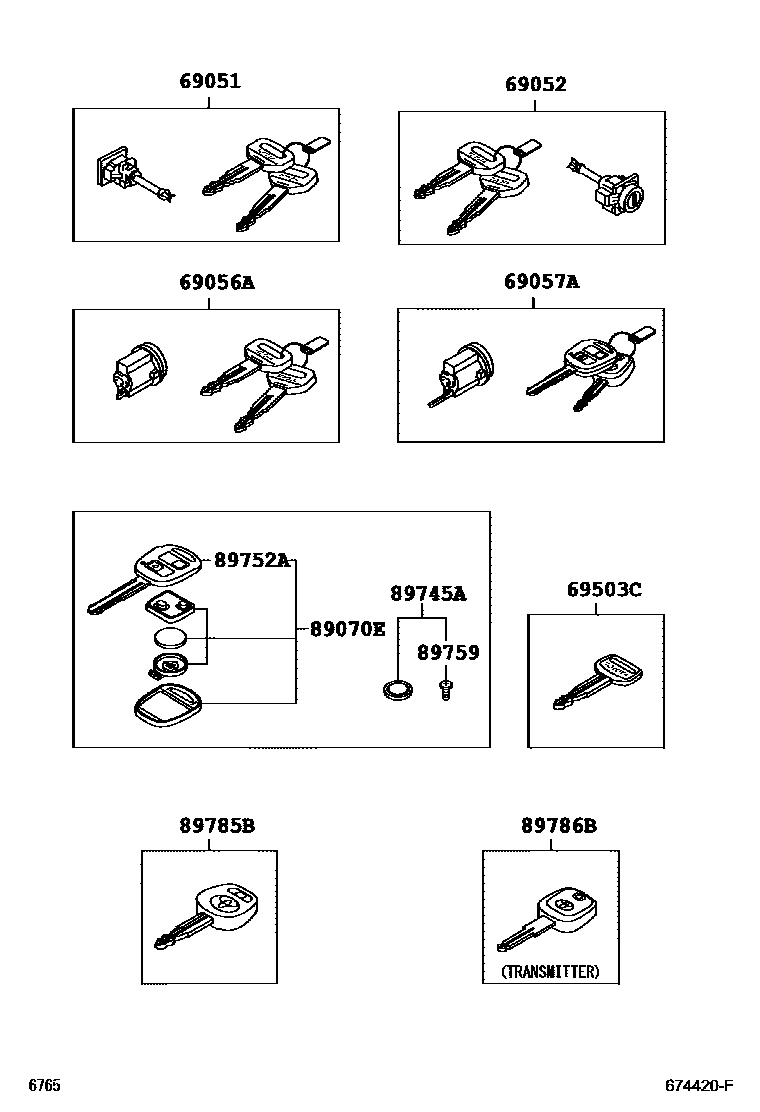

Toyota RUSH — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-B4080i201605

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-B4060i200811-200911

main69052-B4070i201605

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-B4010i200811-200911

main69056-B4030i201605

HI-G PACKAGE; HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-B4050i200811-200911

main69057-B4070i201605

main69057-B4060i201605

DESTINATION PACKAGE(ALL)-CHILE&WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE)

69503CYLINDER SET, LOCK

main69005-B4380i200811-200911

main69005-B4250supersedes 69005-B4240i201605

HI-G PACKAGE

main69005-B4260i201605

WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE)

main69005-B4270i201605

HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE)

69503CKEY, SUB

main90999-00174×2i201605

HI-G PACKAGE; WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE)

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-B4060i200811-200911

main89070-B4110i201605

DESTINATION PACKAGE(ALL)-CHILE&WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE)

89745ABATTERY, TRANSMITTER

main89745-B2010i200811-200911

89752ACASE, TRANSMITTER HOUSING

main89752-B1010i201605

DESTINATION PACKAGE(ALL)-CHILE&WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE),CHANGE WITH 89751A

89759SCREW, DOOR CONTROL TRANSMITTER

main89759-B2010i200811-200911

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-B4030i200811-200911

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-B4040i201605

12 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota RUSH

This section contains 12 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota RUSH. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
