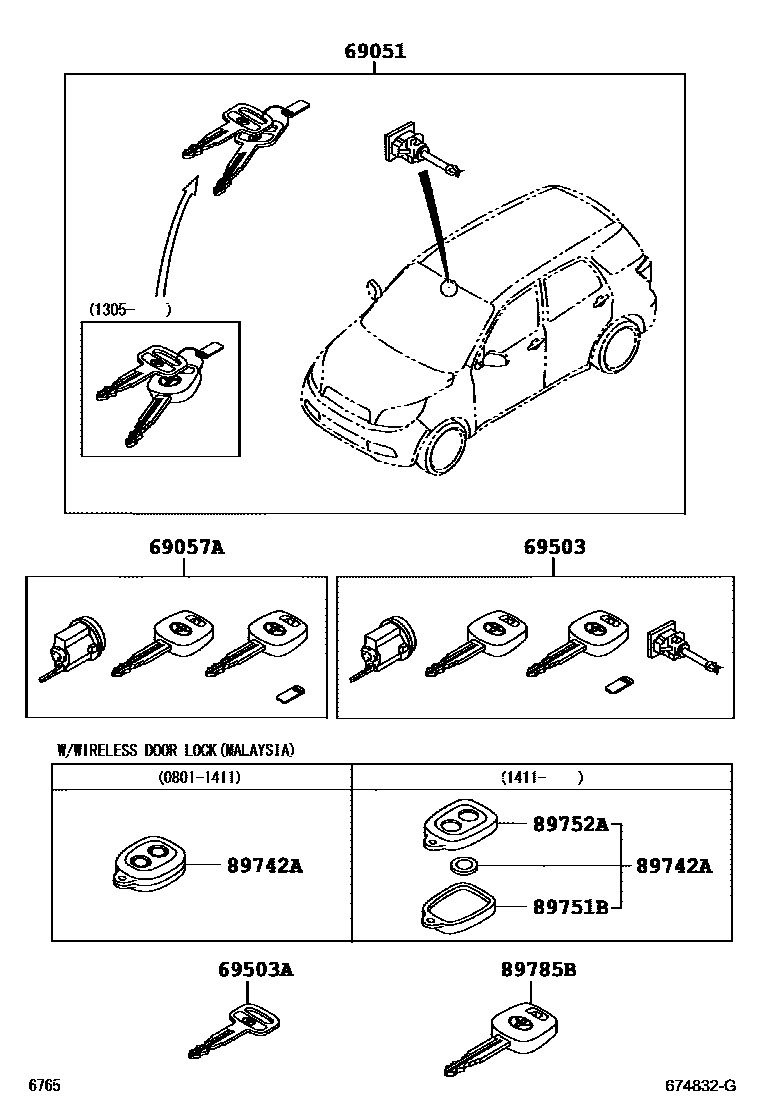

Toyota RUSH — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-BZ070i200612-201009

main69051-BZ071i201305-201503

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-BZ030i200612-201009

main69057-BZ090i201503

69503CYLINDER SET, LOCK

main69005-BZ090i200612-201009

main69005-BZ650i201503

69503AKEY, BLANK

main69515-BZ040i200612-201009

BLANK KEY

main69515-BZ350i201305-201503

BLANK KEY

89742ATRANSMITTER, DOOR CONTROL

main89742-BZ030×2supersedes 89742-BZ050i200801-201009

ROOM LAMP-RR1(W/SENSER)

89751BCOVER, TRANSMITTER HOUSING

main89751-BZ060×2i201411-201503

89752ACASE, TRANSMITTER HOUSING

main89752-BZ070×2i201411-201503

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-08020i200612-201009

main89785-BZ080i201503

8 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota RUSH

This section contains 8 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota RUSH. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK, KEY, BLANK, TRANSMITTER, DOOR CONTROL.
