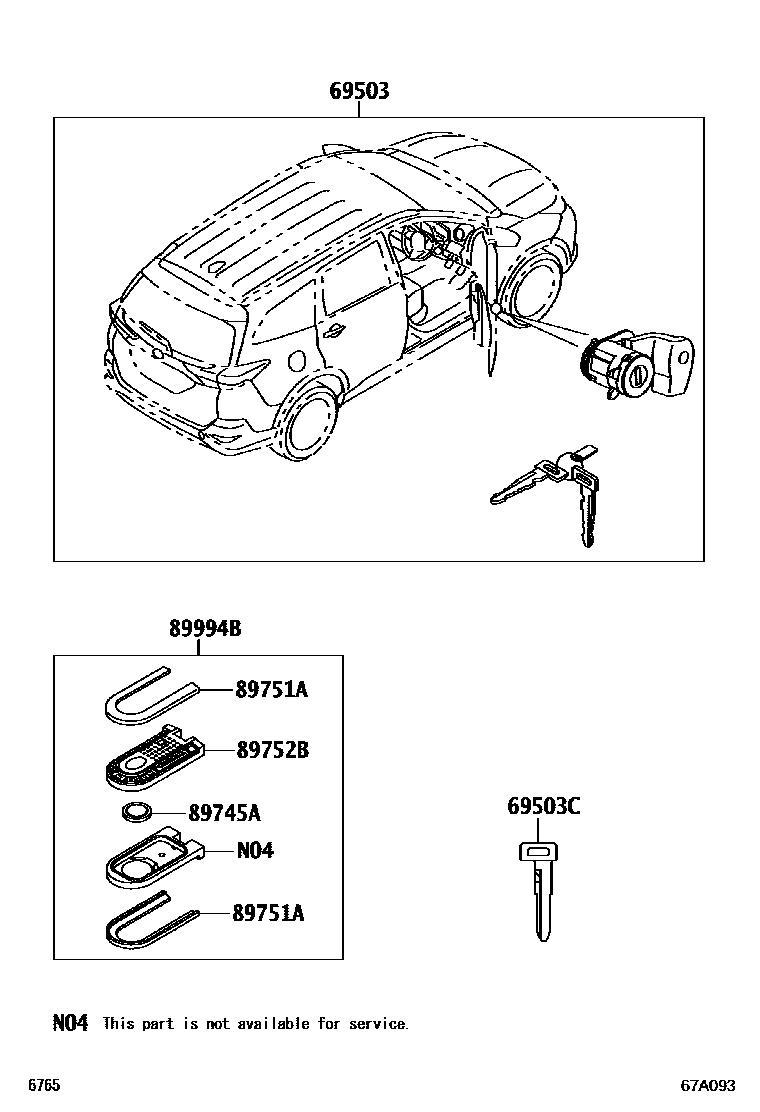

Toyota RUSH — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-BZ890i201812-201911

main69005-BZD70i201912-202310

69503CKEY, SUB

main69516-BZ120i201912-202310

main69516-BZ130i201812-201911

89745ABATTERY, TRANSMITTER

main89745-B2060i201812-202310

CR2032

89751ACOVER, TRANSMITTER HOUSING

main89751-B2120i201812-202310

89752BCASE, TRANSMITTER HOUSING

main89752-B1030i201812-202310

89994BTRANSMITTER, ELECTRICAL KEY

main89994-B0080i201812-202310

6 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota RUSH

This section contains 6 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota RUSH. Key components include: CYLINDER SET, LOCK, KEY, SUB, BATTERY, TRANSMITTER, COVER, TRANSMITTER HOUSING, CASE, TRANSMITTER HOUSING.
