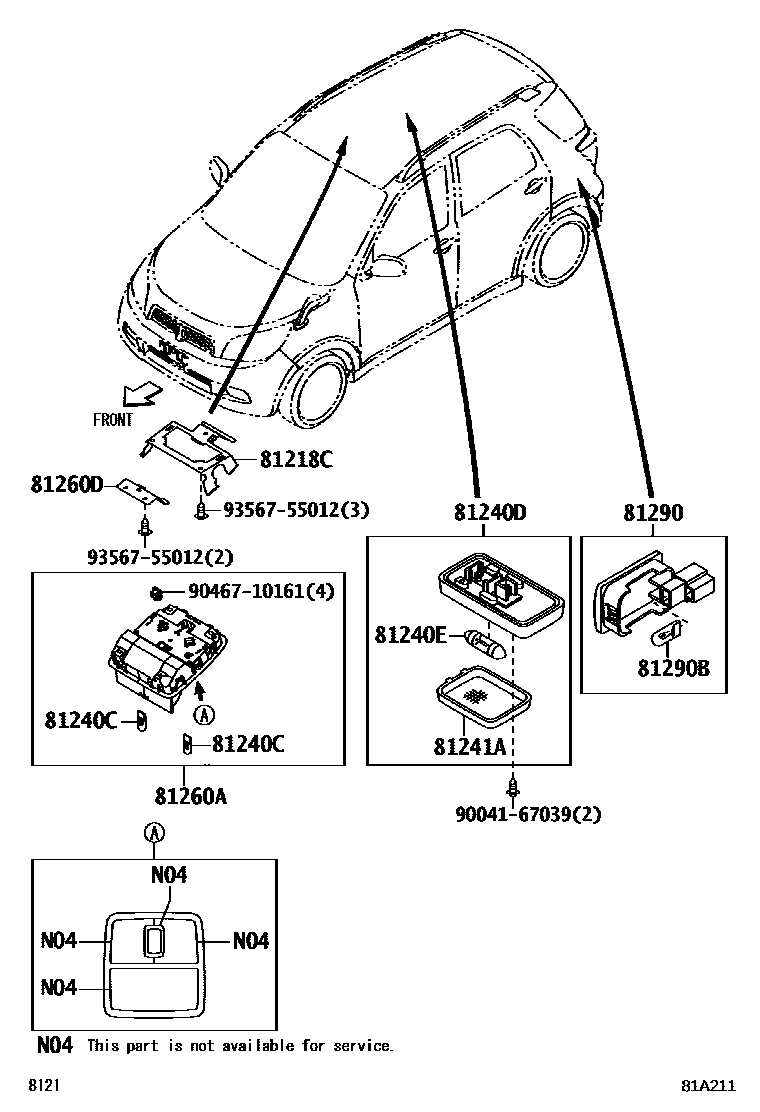

Toyota RUSH — INTERIOR LAMP

81218CBRACKET, MAP LAMP

main63231-B4010supersedes 63231-B4050i200811-200911

81240CBULB

main90981-11062×2supersedes 84999-B4010i200811-200911

81240DLAMP ASSY, ROOM, NO.2

main81240-B2050-B0i200811-200911

LT.GRAY,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90049-51153i200811-200911

12V 8W

81241ALENS, ROOM LAMP, NO.2

main81241-97201i200811-200911

81260ALAMP ASSY, MAP

main81260-B4010-B0supersedes 81240-B4010-B0i200811-200911

LT.GRAY,TRIM1#

81260DBRACKET, MAP LAMP

main63231-B4020i200811-200911

81290LAMP ASSY, ROOM, NO.3

main81240-B1010i200811-200911

81290BBULB, ROOM LAMP, NO.3

main90981-11013i200811-200911

12V 5W T10

9004167039

main90041-67039

9046710161

main90467-10161

9356755012

main93567-55012

12 parts on this diagram · 4 diagrams in section

INTERIOR LAMP for Toyota RUSH

This section contains 16 genuine Toyota parts for the INTERIOR LAMP system of the Toyota RUSH. Key components include: LAMP ASSY, INTERIOR ILLUMINATION, NO.1, BRACKET, MAP LAMP, BRACKET SUB-ASSY, ROOM LAMP, NO.1, BULB.
