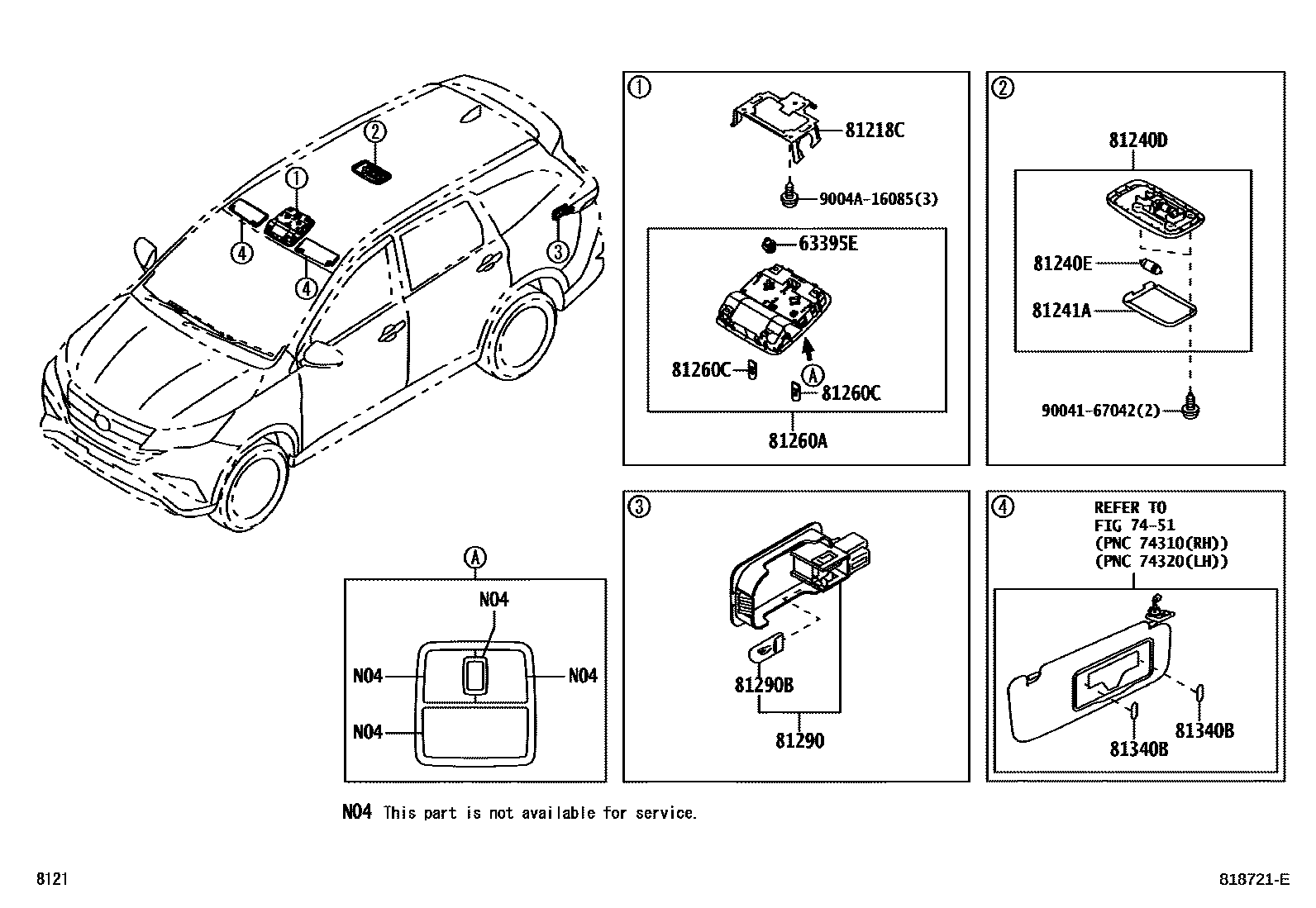

Toyota RUSH — INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-10161×4i201812-202310

7451ARMREST & VISOR

→ Go to FIG 74-51

81218CBRACKET, MAP LAMP

main63231-BZ050i201812-202310

81240DLAMP ASSY, ROOM, NO.2

main81240-87Z03-B0i201812-202310

LT.GRAY,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main9004A-98007i201812-202310

12V 8W

81241ALENS, ROOM LAMP, NO.2

main87814-87Z03i201812-202310

81260ALAMP ASSY, MAP

main81260-B4010-B0i201812-202310

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062×2i201812-202310

12V 8W

81290LAMP ASSY, ROOM, NO.3

main81240-BZ100i201812-202310

81290BBULB, ROOM LAMP, NO.3

main9004A-81016i201812-202310

12V 5W T10

81340BBULB (FOR VANITY LAMP)

main84999-BZ120×4i201812-202310

9004167042

main90041-67042

9004A16085

main9004A-16085

13 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota RUSH

This section contains 13 genuine Toyota parts for the INTERIOR LAMP system of the Toyota RUSH. Key components include: CLIP(FOR MAP LAMP), ARMREST & VISOR, BRACKET, MAP LAMP, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
