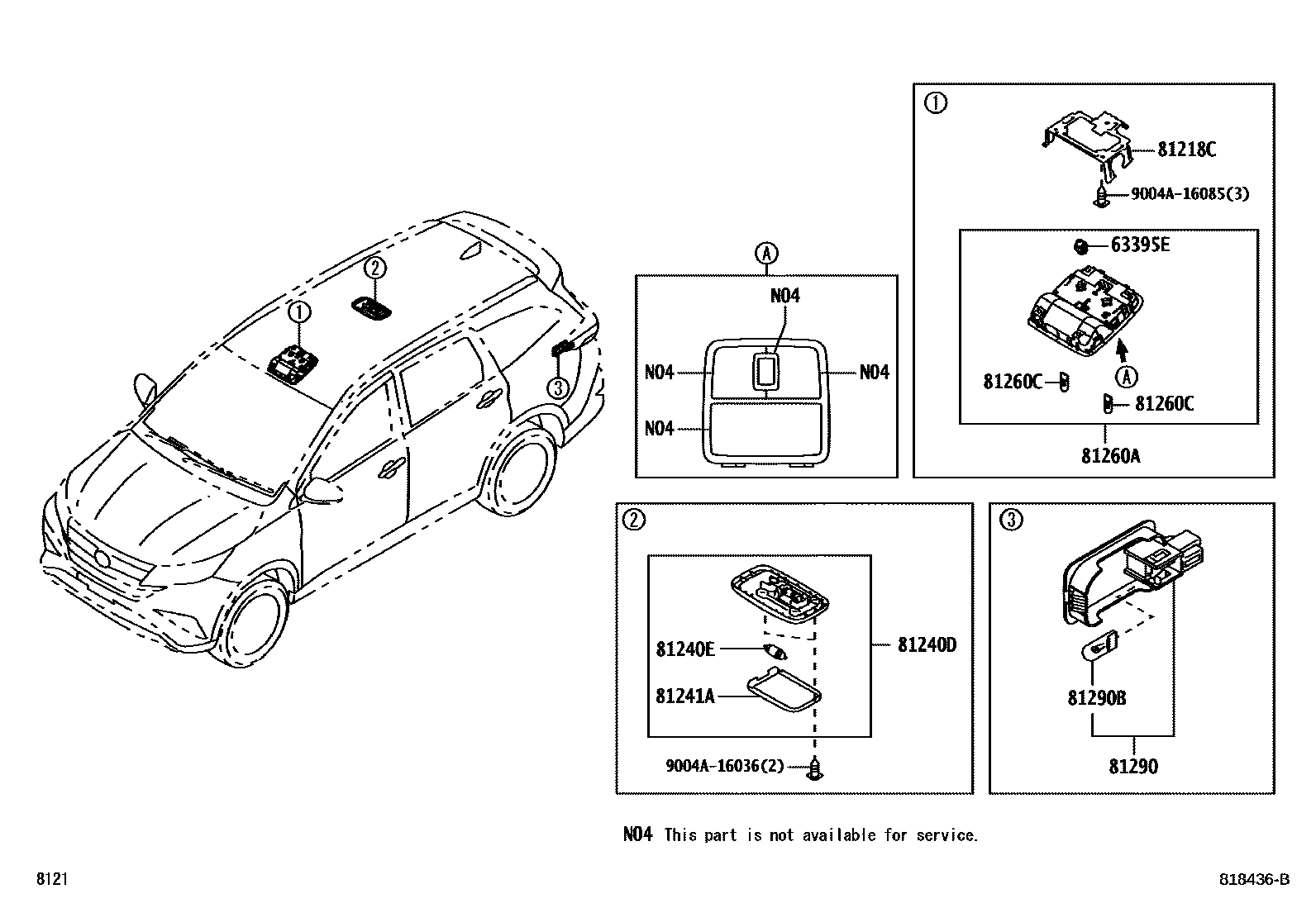

Toyota RUSH — INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main9004A-46338×4iF800201910

main90467-10161×4iF800201712-201909

81218CBRACKET, MAP LAMP

main63231-BZ010iF800201712

81240DLAMP ASSY, ROOM, NO.2

main81240-BZ010-B0iF800..E4AT..HI..GCC;F800..5F..HI..(GCC,VN);F800..MID..(GCC,GEN,PH,VN)202007

LT.GRAY,TRIM1#

main81240-BZ010-B1iF800201712-202007

LT.GRAY,TRIM1#

main81240-BZ010-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

81240EBULB, ROOM LAMP, NO.2

main90049-51153iF800201712

12V 8W

81241ALENS, ROOM LAMP, NO.2

main81241-BZ010iF800201712

81260ALAMP ASSY, MAP

main81260-B0010-B0iF800201712-201902

LT.GRAY,TRIM1#

main81260-BZ060-B0iF800..MID..IDN;F800..E4AT..HI..VN;F800..HI..(GEN,IDN,PH)201903-202403

LT.GRAY,TRIM1#

main81260-BZ060-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

81260CBULB(FOR MAP LAMP)

main90981-11062×2iF800201712

12V 8W

81290LAMP ASSY, ROOM, NO.3

main81240-B0010iF800..MID..PH201712-202305

81290BBULB, ROOM LAMP, NO.3

main90981-11013iF800..MID..PH201712-202305

12V 5W T10

sub99132-12050

9004A16036

main9004A-16036

9004A16085

main9004A-16085

11 parts on this diagram · 1 diagram in section
