Toyota RUSH — INTERIOR LAMP

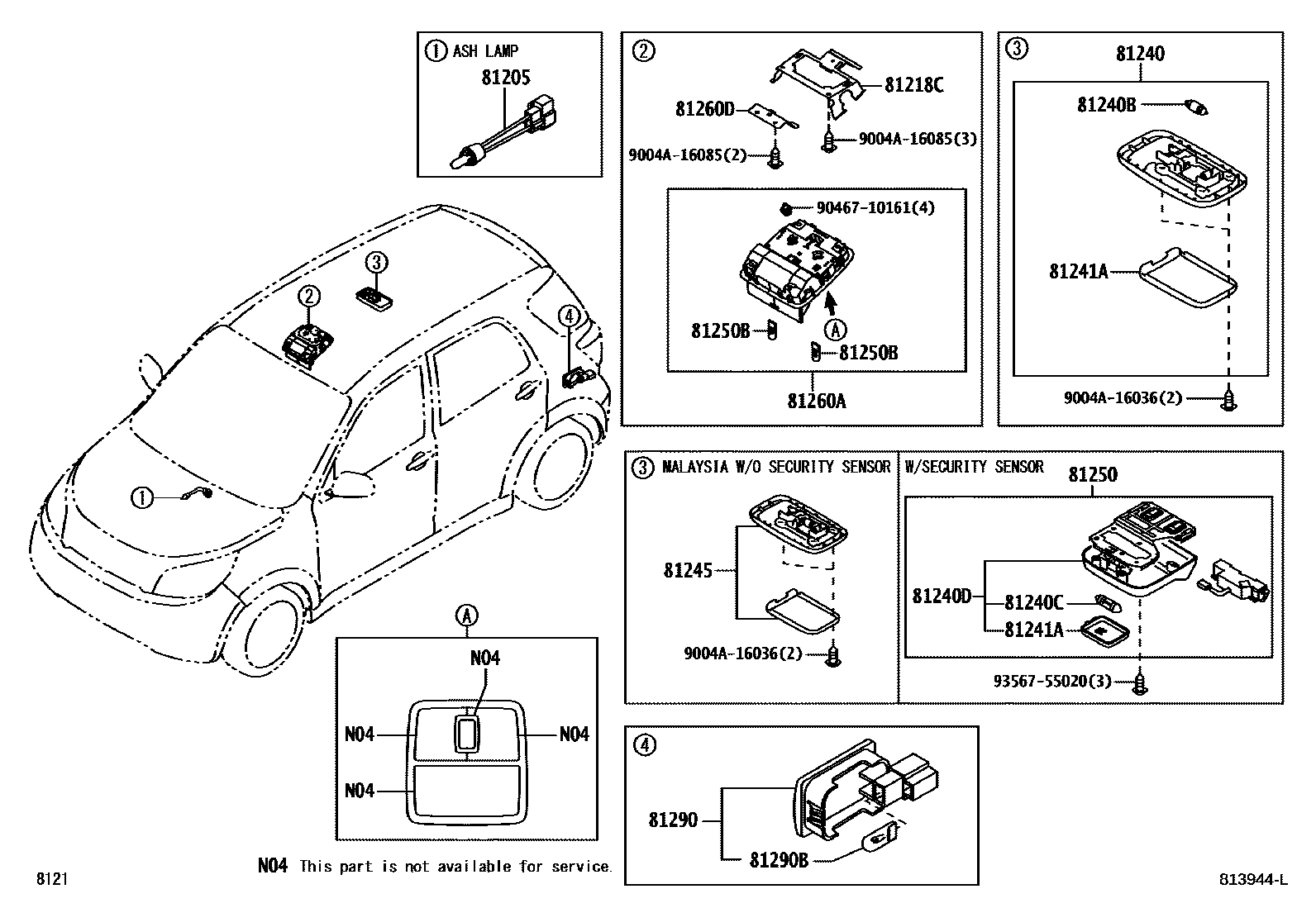

Parts diagram
81205LAMP SUB-ASSY, ASH RECEPTACLE
main81205-97201i201010-201503
main81205-B0010i201503
81218CBRACKET, MAP LAMP
main63231-BZ010i201503
81240LAMP ASSY, ROOM, NO.1
main81240-BZ010-A0i200612-201009
IVORY,TRIM4#
main81240-BZ010-B0i201010-201307
LT.GRAY,TRIM1#
main81240-BZ010-B1i201307-201503
LT.GRAY,TRIM1#
main81240-BZ010-E0i201010-201307
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
main90049-51153i201503
12V 8W
81240CBULB
main9004A-98007i201010-201503
ROOM LAMP-RR1(W/SENSER)
81240DLAMP ASSY, ROOM, NO.2
main81240-BZ020-A0i200712-201009
ROOM LAMP-RR1(W/SENSER),IVORY,TRIM4#
main81240-BZ020-B0i201010-201307
ROOM LAMP-RR1(W/SENSER),LT.GRAY,TRIM1#
main81240-BZ020-B1i201503
ROOM LAMP RR1(W/SENSER),LT.GRAY,TRIM1#
81241ALENS, ROOM LAMP, NO.2
main81241-BZ010i200612-201009
main81241-BZ020i200712-201009
ROOM LAMP-RR1(W/SENSER)
81245COVER, ROOM LAMP, NO.2
main89279-BZ070-B0i201701
LT.GRAY,TRIM1#; ROOM LAMP RR1(W/SENSER),LT.GRAY,TRIM1#
81250LAMP ASSY, ROOM, NO.2
main81250-BZ010-A0i200712-201009
ROOM LAMP-RR1(W/SENSER),IVORY,TRIM4#
main81250-BZ010-B0i201010-201307
ROOM LAMP-RR1(W/SENSER),LT.GRAY,TRIM1#
main81250-BZ010-B1i201307-201503
ROOM LAMP-RR1(W/SENSER),LT.GRAY,TRIM1#
81250BBULB, ROOM LAMP, NO.2
main90981-11062×2i201010-201503
12V 8W
81260ALAMP ASSY, MAP
main81260-B0010-B0i201503
LT.GRAY,TRIM1#
main81260-B4010-A0i200612-201009
IVORY,TRIM4#
main81260-B4010-B0i201010-201307
LT.GRAY,TRIM1#
main81260-B4010-B1i201307-201503
LT.GRAY,TRIM1#
main81260-B4010-E0i201010-201307
GREGE,TRIM4#
81260DBRACKET, MAP LAMP
main63231-BZ020i201010-201503
81290LAMP ASSY, ROOM, NO.3
main81240-B0010i201503
main81240-B1010i201010-201503
81290BBULB, ROOM LAMP, NO.3
main90981-11013i200612-201009
12V 5W T10
9004A16036
main9004A-16036
9004A16085
main9004A-16085
9046710161
main90467-10161
9356755020
main93567-55020

18 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota RUSH

This section contains 18 genuine Toyota parts for the INTERIOR LAMP system of the Toyota RUSH. Key components include: LAMP SUB-ASSY, ASH RECEPTACLE, BRACKET, MAP LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, BULB.
