Toyota RUSH — INSTRUMENT PANEL & GLOVE COMPARTMENT

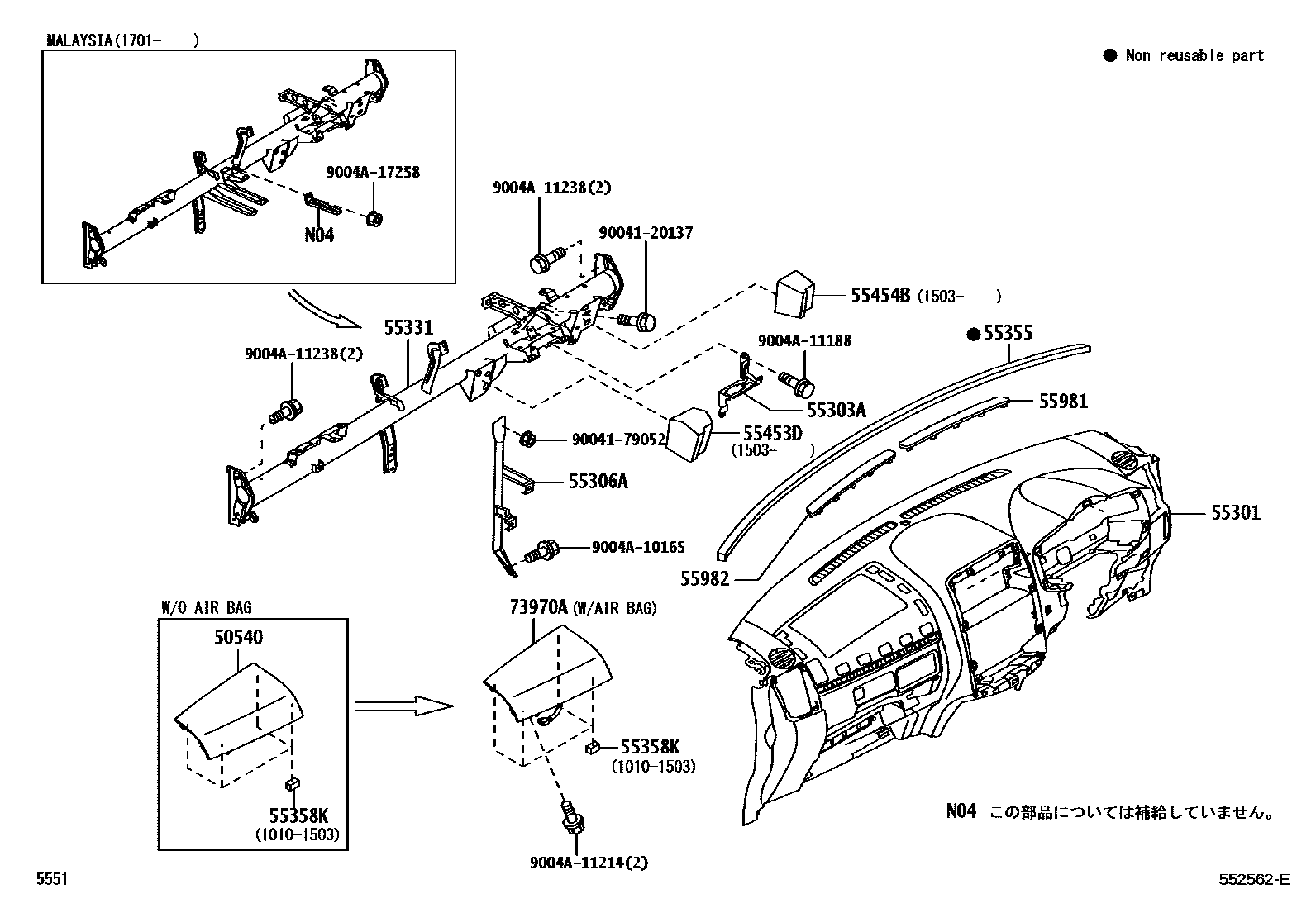

Parts diagram
50540DO0R ASSY, AIRBAG PASSENGER
main50540-BZ030-B0i201010-201207
DK.GRAY,TRIM1#
main50540-BZ030-E0i200612-201009
SANDAL WOOD,TRIM4#
main50540-BZ030-E1i201010-201207
ASH BROWN,TRIM4#
55301PANEL SUB-ASSY, INSTRUMENT
main55311-BZ160-B0i201010-201503
DK.GRAY,TRIM1#
main55311-BZ160-E0i200612-201009
SANDAL WOOD,TRIM4#
main55311-BZ200-B0i201307-201503
DK.GRAY,TRIM1#
main55311-BZ200-E0i201010-201307
ASH BROWN,TRIM4#
55303ASTAY SUB-ASSY, INSTRUMENT PANEL
main55303-BZ010i201503
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-BZ060i200612-201009
55331REINFORCEMENT, INSTRUMENT PANEL
main55305-BZ120i200612-201009
main55305-BZ440i201010-201503
main55305-BZ530i201010-201503
main55305-BZ660i201503
main55305-BZ670i201503-201701
main55305-BZA20i201701
main55305-BZA30i201701
55355CUSHION, INSTRUMENT PANEL, NO.1
main55355-BZ040i200612-201009
55358KCUSHION, INSTRUMENT PANEL, NO.4
main55358-BZ080×4i201010-201503
55453DPAD, INSTRUMENT PANEL SAFETY, NO.1
main55453-B0030i201503
55454BPAD, INSTRUMENT PANEL SAFETY, NO.2
main55454-B0030i201503
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-BZ020-B0i201503
DK.GRAY,TRIM1#
main55981-BZ020-E0i200612-201009
SANDAL WOOD,TRIM4#
main55981-BZ020-E1i201010-201307
ASH BROWN,TRIM4#
55982GARNISH, DEFROSTER NOZZLE, NO.2
main55982-BZ010-B0i201503
DK.GRAY,TRIM1#
main55982-BZ010-E0i200612-201009
SANDAL WOOD,TRIM4#
main55982-BZ010-E1i201010-201307
ASH BROWN,TRIM4#
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
main73970-BZ040-B0i201207-201503
DK.GRAY,TRIM1#
main73970-BZ040-E0i200612-201009
SANDAL WOOD,TRIM4#
main73970-BZ040-E1i201010-201307
ASH BROWN,TRIM4#
main73970-BZ190-B0i201503-201611
DK.GRAY,TRIM1#
main73970-BZ191-B0i201612
DK.GRAY,TRIM1#
9004120137
main90041-20137
9004179052
main90041-79052
9004A10165
main9004A-10165
9004A11188
main9004A-11188
9004A11214
main9004A-11214
9004A11238
main9004A-11238
9004A17258
main9004A-17258

19 parts on this diagram · 5 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota RUSH

This section contains 55 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota RUSH. Key components include: DO0R ASSY, AIRBAG PASSENGER, PANEL SUB-ASSY, INSTRUMENT, STAY SUB-ASSY, INSTRUMENT PANEL, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, CLIP, INSTRUMENT PANEL.
