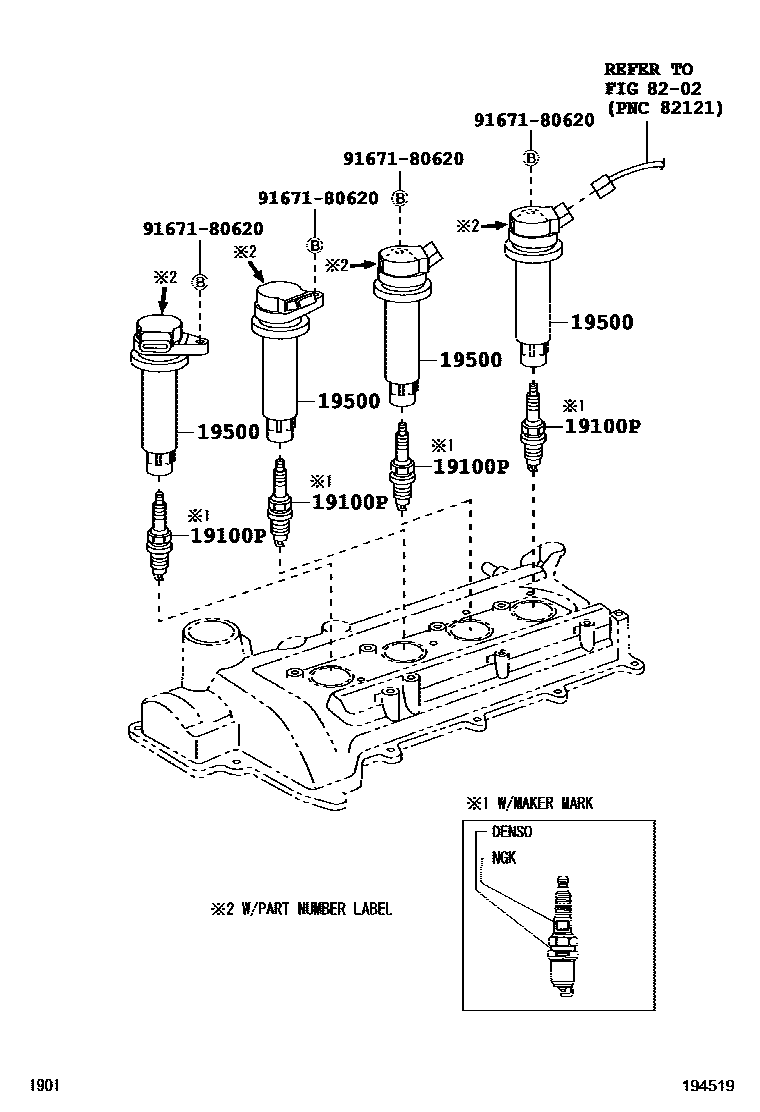

Toyota RUSH — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90048-51196×4i200811

DCPR7EA-9,NGK

main90048-51197×4i200811

XU22PR9,DENSO

19500COIL ASSY, IGNITION

main19070-B1020×4i200811

W/PART NUMBER LABEL

8202WIRING & CLAMP

→ Go to FIG 82-02

9167180620

main91671-80620

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota RUSH

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota RUSH. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
