Toyota RUSH — IGNITION COIL & SPARK PLUG / GLOW PLUG

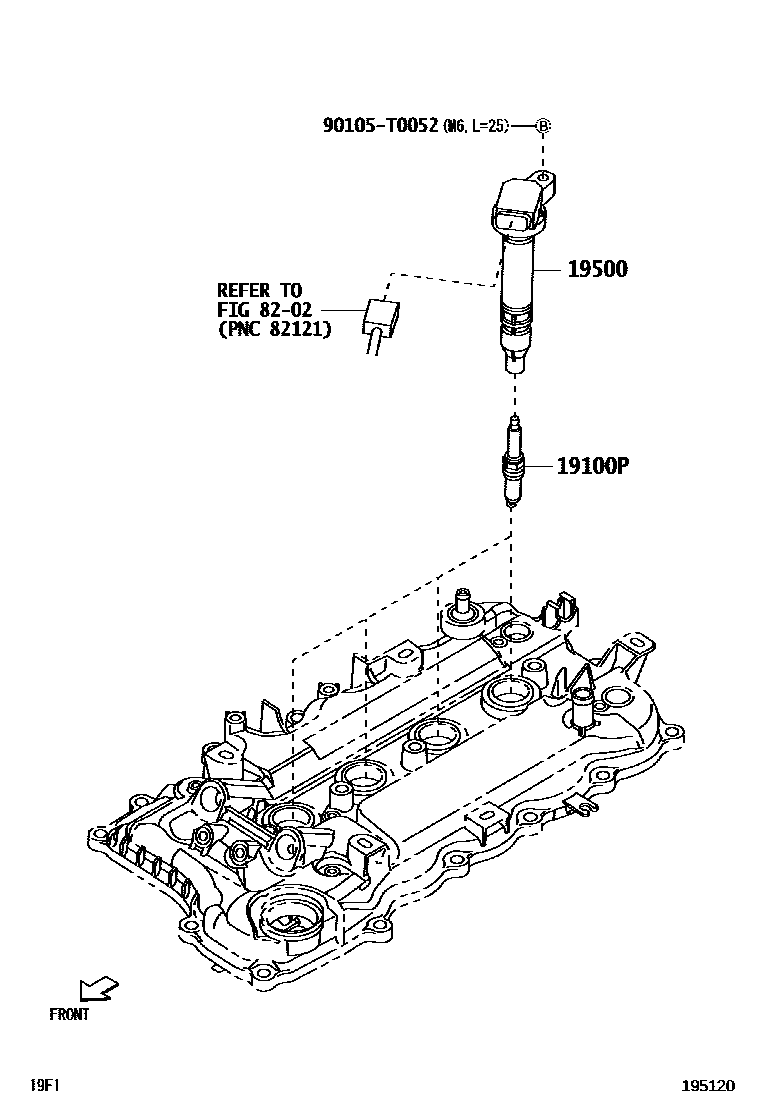

Parts diagram

19100PPLUG, SPARK

main9004A-91068×4i201712-202305

SC16HR11

19500COIL ASSY, IGNITION

main9004A-19002×4i201712-202305

8202

90105T0052

main90105-T0052

4 parts on this diagram · 1 diagram in section
