Toyota RUSH — HOOD LOCK & HINGE

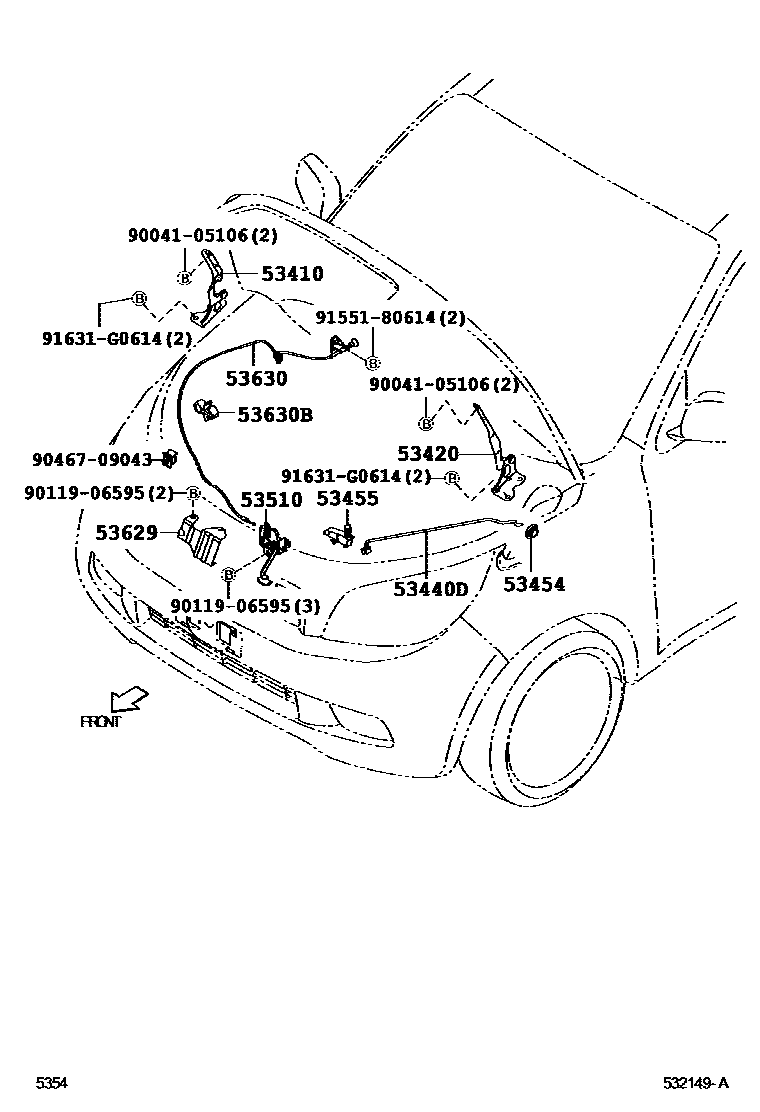

Parts diagram

53410HINGE ASSY, HOOD, RH

main53410-B4010i200811

53420HINGE ASSY, HOOD, LH

main53420-B4010i200811

53440DSUPPORT ASSY, HOOD

main53440-B4010i200811

53454CLIP, HOOD SUPPORT ROD

main53454-B4010i200811

53455CLAMP, HOOD SUPPORT ROD

main53455-B4010i200811

53510LOCK ASSY, HOOD

main53510-B4040i200811

53629COVER, HOOD LOCK CONTROL CABLE

main53639-B4010i200811

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-B4020i200811

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90044-64626i200811

9004105106

main90041-05106

9011906595

main90119-06595

9046709043

main90467-09043

9155180614

main91551-80614

91631G0614

main91631-G0614

14 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota RUSH

This section contains 14 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota RUSH. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, CLIP, HOOD SUPPORT ROD, CLAMP, HOOD SUPPORT ROD.
