Toyota RUSH — HEADLAMP
81110HEADLAMP ASSY, RH
DESTINATION PACKAGE(ALL)-CHILE; DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE; HI-G PACKAGE
81110DBULB(FOR HEADLAMP, NO.2)
12V 60/55W,HB2/H4
12V 60/55W,HB2/H4
12V 55W,DESTINATION PACKAGE(ALL)-CHILE; 12V 55W,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE; 12V 55W,HI-G PACKAGE
81131AUNIT, HEADLAMP, RH
DESTINATION PACKAGE(ALL)-CHILE; DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE; HI-G PACKAGE
81139COVER, HEADLAMP SOCKET
DESTINATION PACKAGE(ALL)-CHILE; DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE; HI-G PACKAGE
81150HEADLAMP ASSY, LH
DESTINATION PACKAGE(ALL)-CHILE; DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE; HI-G PACKAGE
81171AUNIT, HEADLAMP, LH
DESTINATION PACKAGE(ALL)-CHILE; DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE; HI-G PACKAGE
81179COVER, HEADLAMP SOCKET
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
DESTINATION PACKAGE(ALL)-CHILE; DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE; HI-G PACKAGE
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
DESTINATION PACKAGE(ALL)-CHILE; DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE; HI-G PACKAGE
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
9004168102
main90041-68102
9004467383
main90044-67383
9011906595
main90119-06595

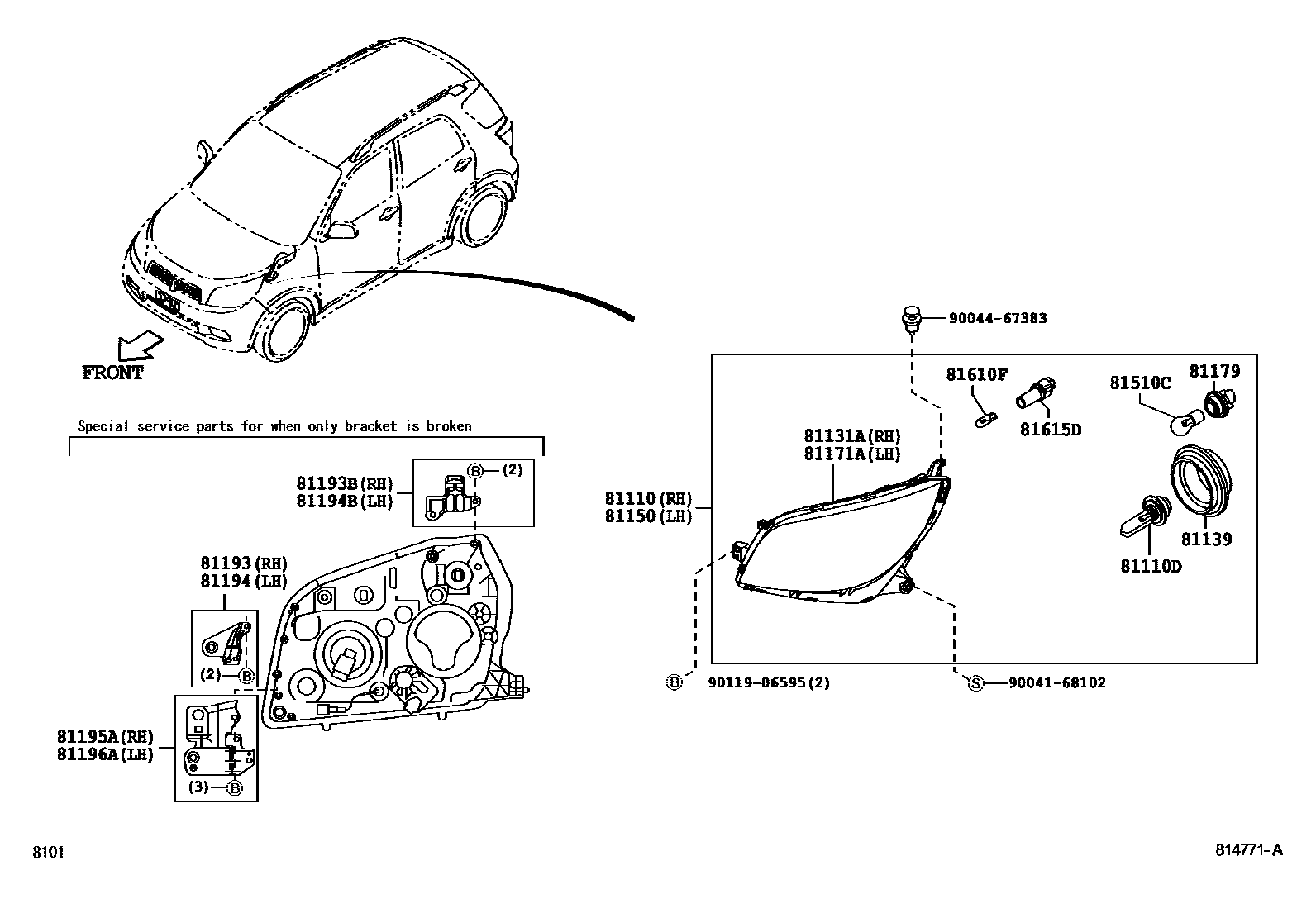

19 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota RUSH
This section contains 20 genuine Toyota parts for the HEADLAMP system of the Toyota RUSH. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
