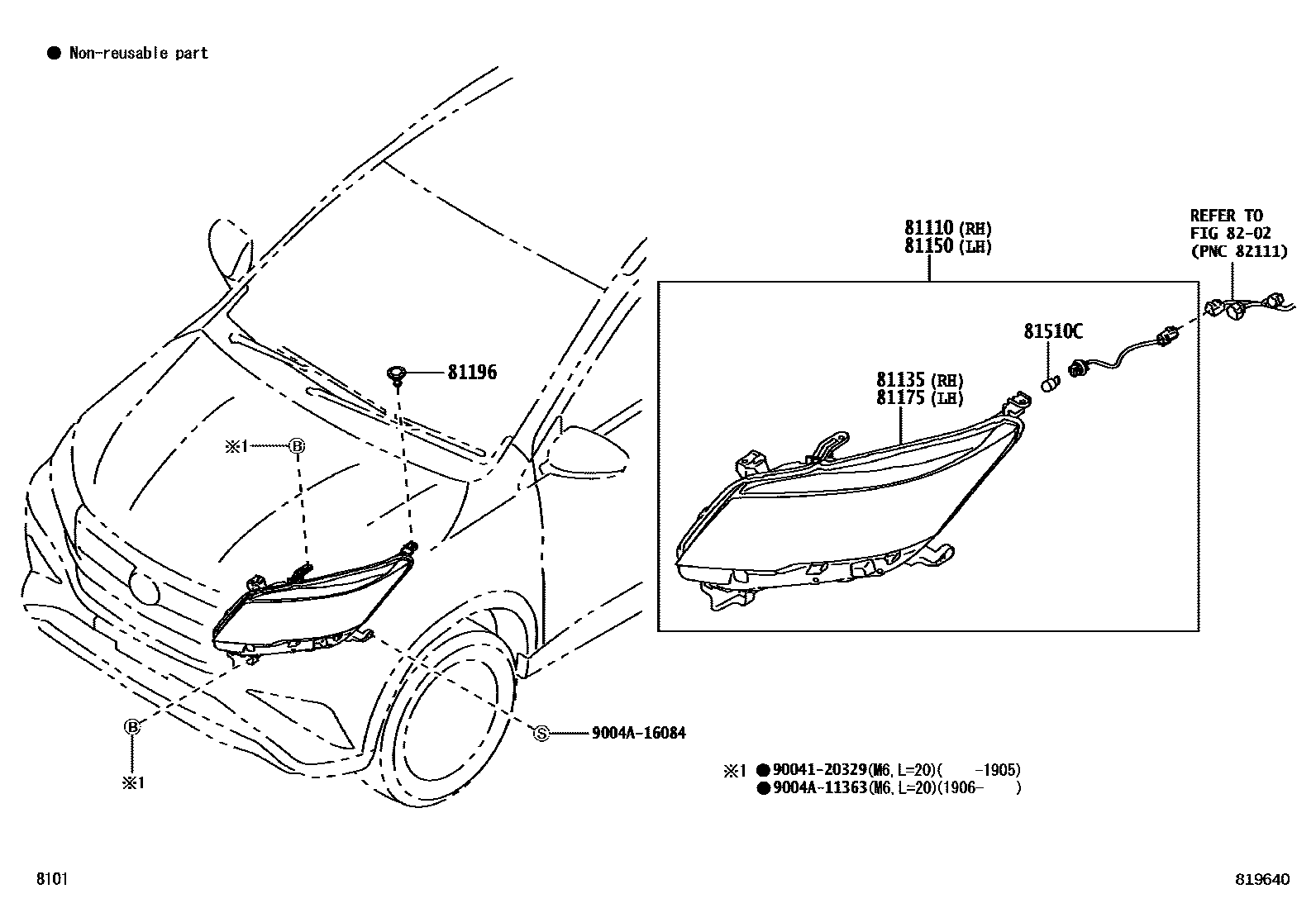

Toyota RUSH — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-BZ600iF800..RHD..MID..GEN201804

main81110-BZ610iF800..LHD..MID..(GCC,GEN,VN)201804

main81110-BZ620iF800..RHD..HI;F800..MID..IDN201712

main81110-BZ630iF800..LHD..HI201804

81135UNIT ASSY, HEADLAMP, RH

main81130-BZ600iF800..RHD..MID..GEN201804

main81130-BZ610iF800..MID..PH201804-202305

main81130-BZ620iF800..RHD..HI;F800..MID..IDN201712

main81130-BZ630iF800..LHD..HI201804

81150HEADLAMP ASSY, LH

main81150-BZ600iF800..RHD..MID..GEN201804

main81150-BZ610iF800..LHD..MID..(GCC,GEN,VN)201804

main81150-BZ620iF800..RHD..HI;F800..MID..IDN201712

main81150-BZ630iF800..LHD..HI201804

81175UNIT ASSY, HEADLAMP, LH

main81170-BZ600iF800..RHD..MID..GEN201804

main81170-BZ610iF800..LHD..MID..(GCC,GEN,VN)201804

main81170-BZ620iF800..RHD..HI;F800..MID..IDN201712

main81170-BZ630iF800..LHD..HI201804

81196RETAINER, HEADLAMP

main90044-68320×2iF800201712-201909

main90044-68378×2iF800..MID..PH201910-202305

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main9004A-81011×2iF800..MID..PH201712-202305

12V 21W

8202

9004120329

main90041-20329

9004A11363

main9004A-11363

9004A16084

main9004A-16084

10 parts on this diagram · 1 diagram in section
