Toyota RUSH — HEADLAMP

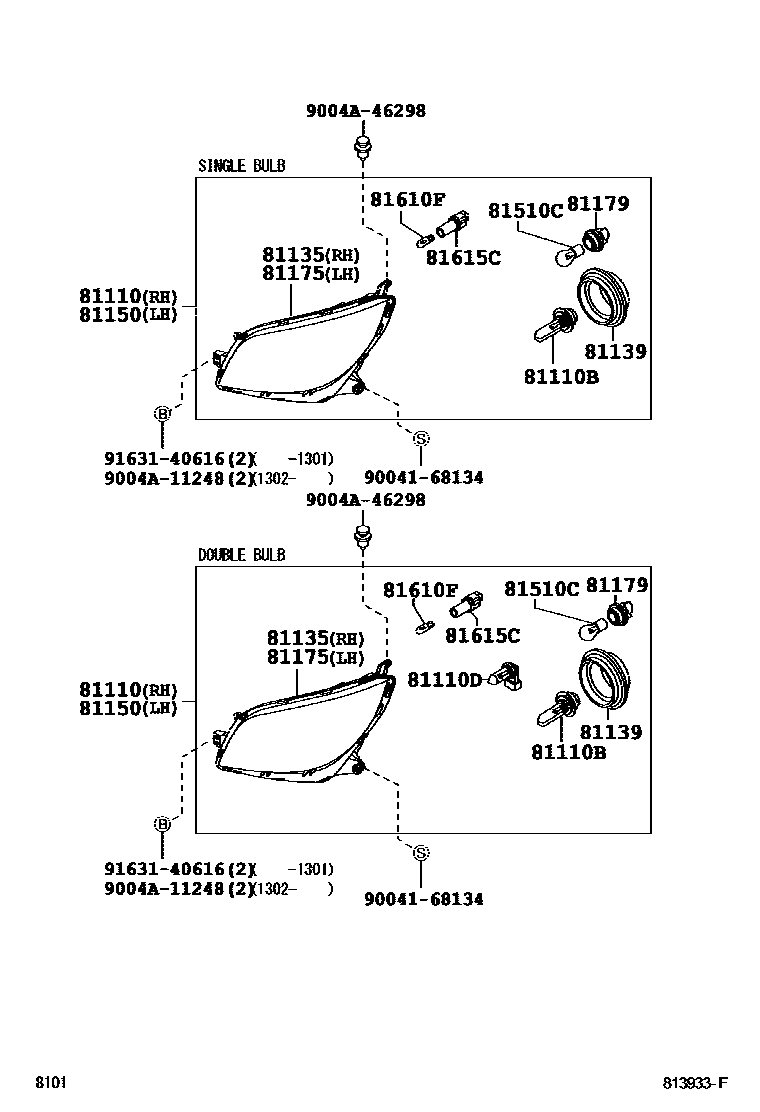

Parts diagram

81110HEADLAMP ASSY, RH

main81110-B4060i200612-201009

main81110-B4100i200712-201009

main81110-BZ200i201010-201503

main81110-BZ510i201503

main81110-BZ520i201503

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51088×2i200901-201009

12V 60/55W,HB2/H4

main90049-51142×2i200612-201009

12V/60W HB3

main90049-51178×2i200712-200901

12V 60/55W,HB2/H4

main9004A-81007×2i201010-201503

12V 55W

81110DBULB(FOR HEADLAMP, NO.2)

main90049-51174×2i200612-201009

12V 55W

main9004A-81004×2i201503

12V 60W HB3

81135UNIT ASSY, HEADLAMP, RH

main81130-B4040i200612-201009

main81130-B4080i200712-201009

main81130-BZ200i201010-201503

main81130-BZ510i201503

main81130-BZ520i201503

81139COVER, HEADLAMP SOCKET

main81139-97501×2i201010-201307

main81139-B2030×2i201308-201503

main81139-B4010×2i200612-201009

81150HEADLAMP ASSY, LH

main81150-B4060i200612-201009

main81150-B4100i200712-201009

main81150-BZ200i201010-201503

main81150-BZ510i201503

main81150-BZ520i201503

81175UNIT ASSY, HEADLAMP, LH

main81170-B4040i200612-201009

main81170-B4080i200712-201009

main81170-BZ200i201010-201503

main81170-BZ510i201503

main81170-BZ520i201503

81179COVER, HEADLAMP SOCKET

main81179-97401×2i200612-201009

main81179-BZ040×2i201503

main81179-BZ050×2i201010-201503

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90049-51148×2i201010-201503

12V 21W,AMBER

main9004A-81005×2i201010-201503

12V 21W

81610FBULB(FOR CLEARANCE LAMP)

main90049-51183×2i201110-201503

12V 5W

main9004A-81006×2i201010-201503

12V 5W

main90981-11013×2i201010-201109

12V 5W T10

81615CSOCKET & WIRE, CLEARANCE LAMP

main81125-B4010×2i200612-201009

main9004B-82001×2i201010-201503

9004168134

main90041-68134

9004A11248

main9004A-11248

9004A46298

main9004A-46298

9163140616

main91631-40616

15 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota RUSH

This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota RUSH. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
