Toyota RUSH — FUEL INJECTION SYSTEM

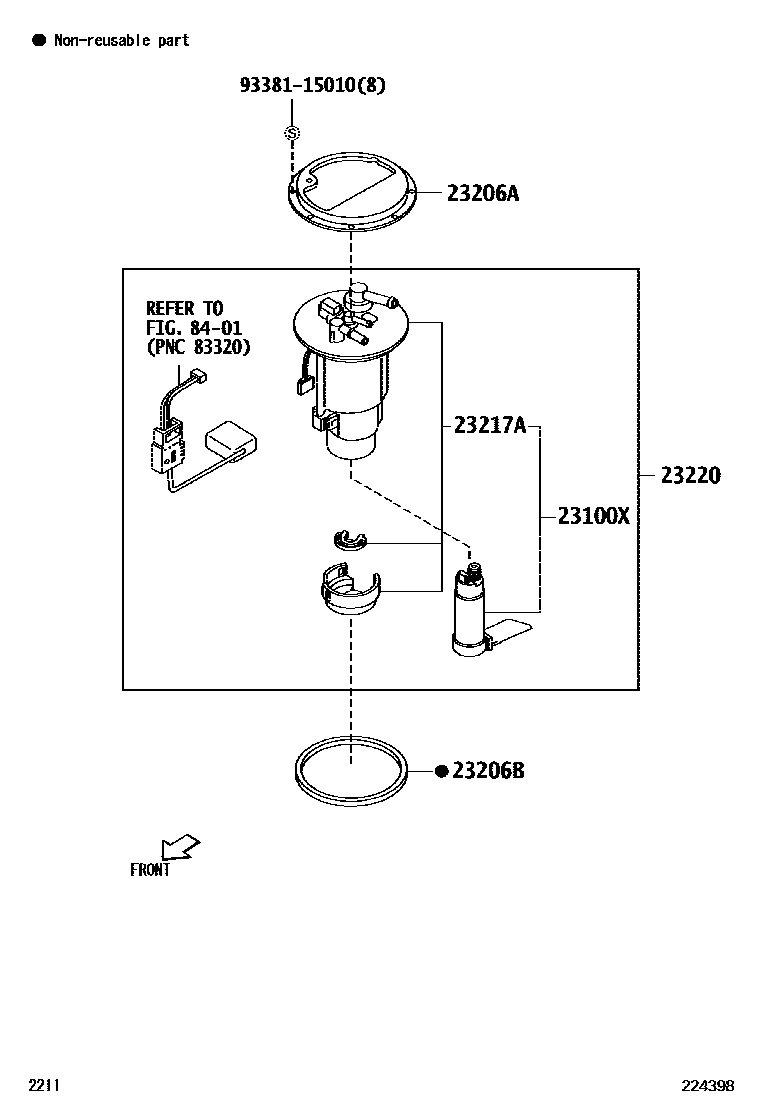

Parts diagram

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-B1020i200811-200911

main23100-B1040i201605-201607

main23100-B1041i201607

23206ABRACKET, FUEL PUMP

main23265-87401i200811

23206BGASKET, FUEL PUMP BRACKET

main23232-87401i200811

23217AFILTER, FUEL PUMP

main23908-B1010i201605-201607

main23908-B1011i201607

main23908-B1020i200811-200911

23220PUMP ASSY, FUEL W/FILTER

main23210-B1031i201605

main23210-B1040i200811-200911

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9338115010

main93381-15010

7 parts on this diagram · 2 diagrams in section

FUEL INJECTION SYSTEM for Toyota RUSH

This section contains 33 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota RUSH. Key components include: MANIFOLD, COVER, DUST, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY COVER, BRACKET, THROTTLE BODY.
