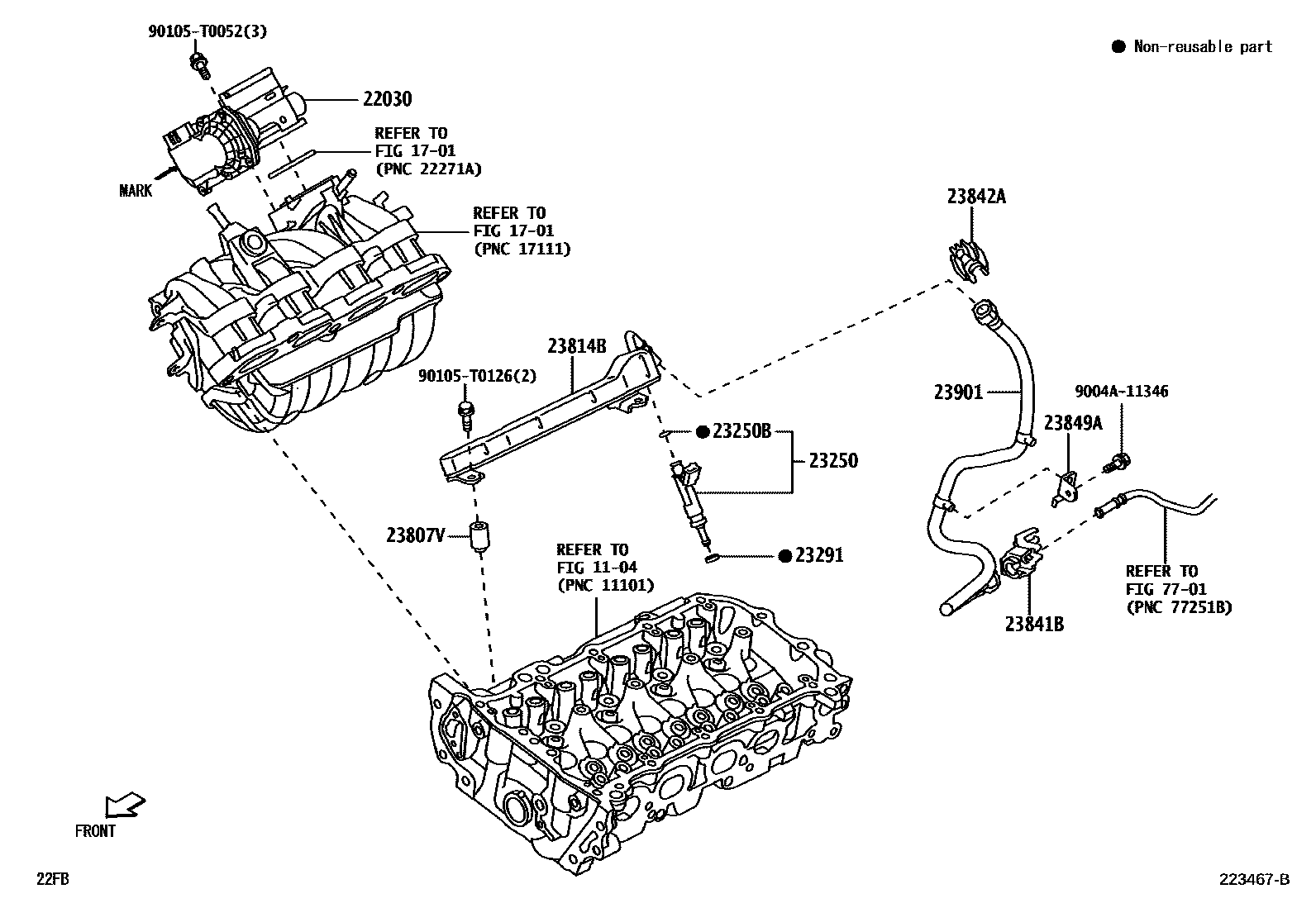

Toyota RUSH — FUEL INJECTION SYSTEM

1104

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y020i2NRVE..F800..PH201804-201810

main22030-0Y140i2NRVE..F800..MID..PH202110-202305

main22030-BZ040i2NRVE..F800..IDN201712-202110

23250INJECTOR ASSY, FUEL

main23209-BZ050×4i2NRVE..F800..MID..PH201712-202305

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2NRVE..F800..MID..PH201712-202305

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020×4i2NRVE..F800..MID..PH201712-202305

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-47040×2i2NRVE..F800..MID..PH201712-202305

23814BPIPE, FUEL DELIVERY

main23814-BZ070i2NRVE..F800..MID..PH201712-202305

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-BZ020i2NRVE..F800..MID..PH201712-202305

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-B0010i2NRVE..F800..MID..PH201712-202305

23849ASUPPORT, FUEL PIPE

main23849-BZ030i2NRVE..F800..MID..PH201712-202305

23901TUBE SUB-ASSY, FUEL

main23901-BZ030i2NRVE..F800..MID..PH201712-202305

7701

9004A11346

main9004A-11346

90105T0052

main90105-T0052

90105T0126

main90105-T0126

16 parts on this diagram · 1 diagram in section
