Toyota RUSH — FRONT STEERING GEAR & LINK

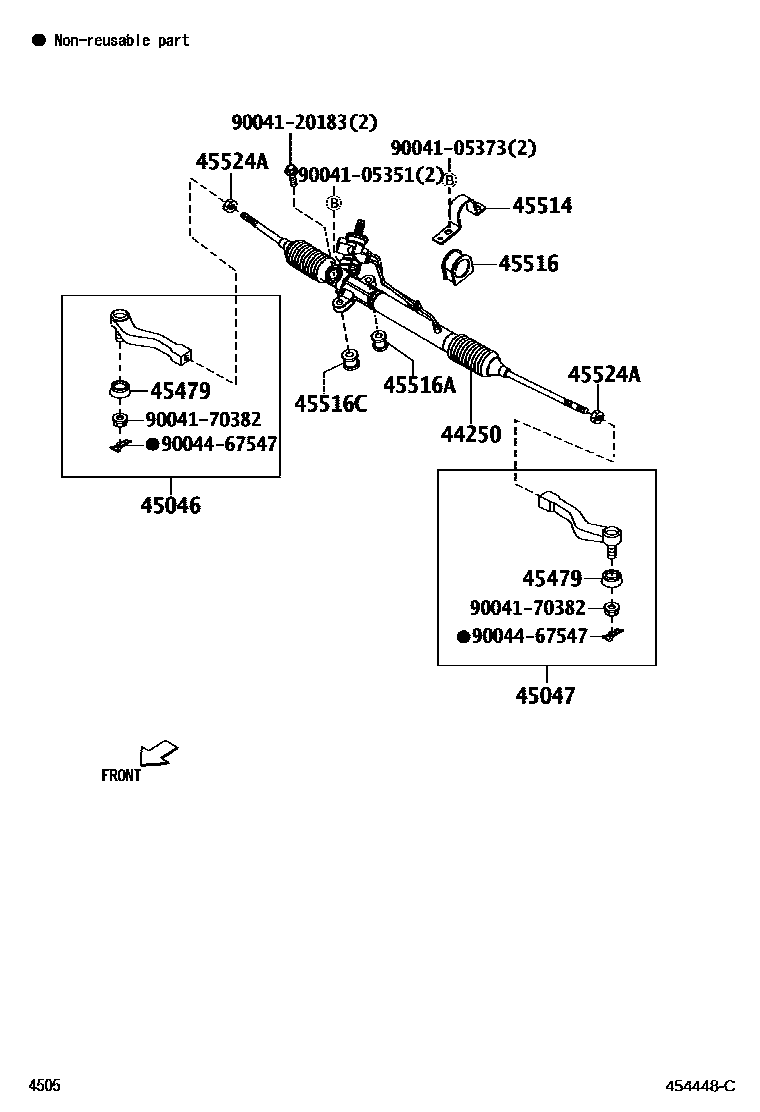

Parts diagram

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-B4030i200811-200911

45046END SUB-ASSY, TIE ROD, RH

main45046-B9320i200811

45047END SUB-ASSY, TIE ROD, LH

main45047-B9270i200811

45479SEAL, STEERING LINK JOINT DUST

main45479-87508×2i200811

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-B4010i200811-200911

main45514-B4020i201605

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-B4010i200811

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-B1020i200811-200911

main45516-B2030i201605

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-B4020i201605

main45516-B4030i200811-200911

45524CAP, STEERING RACK GUIDE SPRING

main45524-B1010i201605

main45524-B4010i200811-200911

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main44494-87402×2i200811-200911

9004105351

main90041-05351

9004105373

main90041-05373

9004120183

main90041-20183

9004170382

main90041-70382

9004467547

main90044-67547

15 parts on this diagram · 3 diagrams in section

FRONT STEERING GEAR & LINK for Toyota RUSH

This section contains 46 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota RUSH. Key components include: BEARING(FOR POWER STEERING CONTROL VALVE LOWER), HOUSING SUB-ASSY, POWER STEERING RACK, RACK SUB-ASSY, POWER STEERING, RING(FOR RACK STEERING PISTON), BUSH SUB-ASSY, POWER STEERING RACK.
