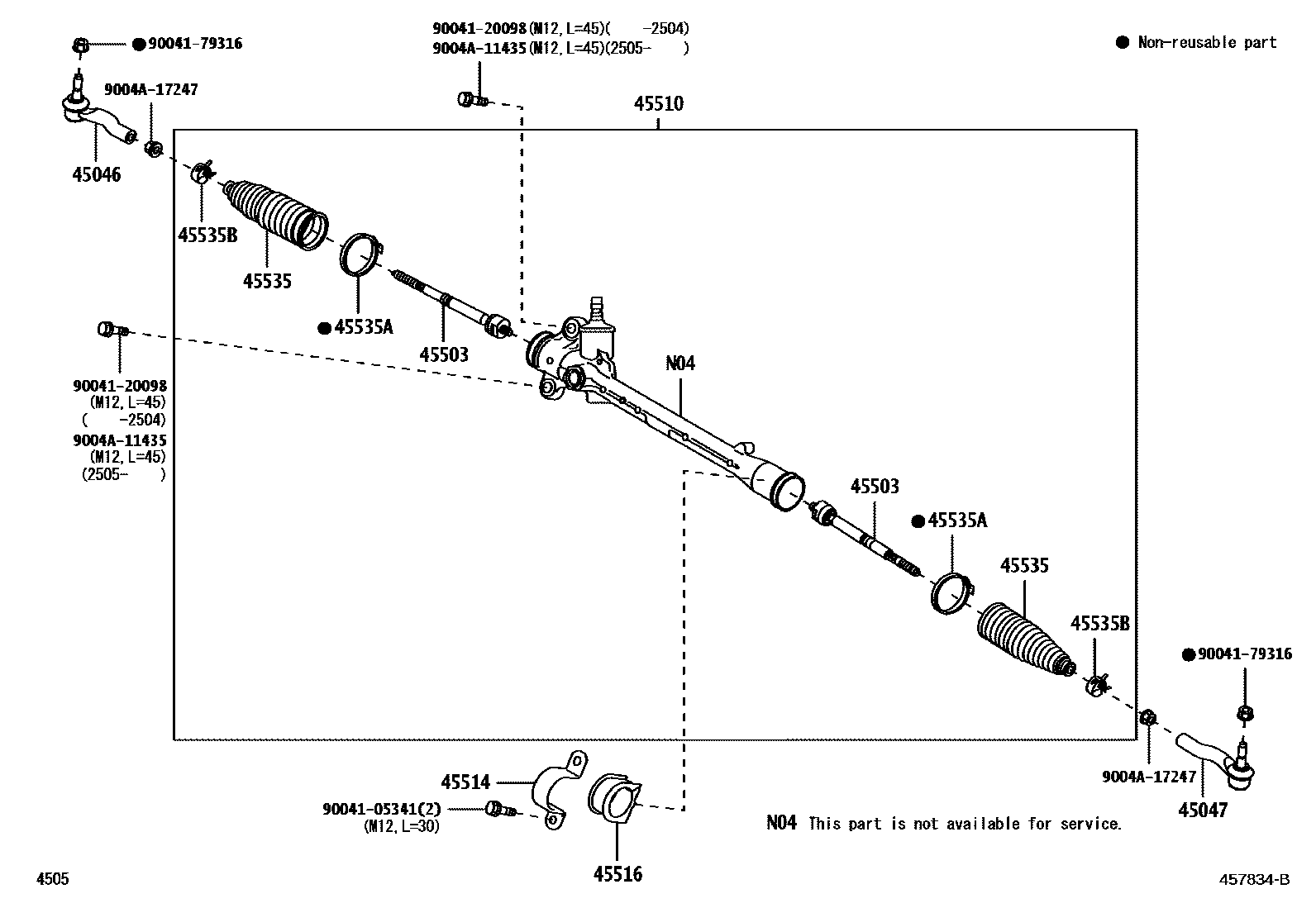

Toyota RUSH — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-BZ210iF800..MID..PH201712-202305

45047END SUB-ASSY, TIE ROD, LH

main45046-BZ210iF800..MID..PH201712-202305

45503END SUB-ASSY, STEERING RACK

main45503-BZ210×2iF800..MID..PH201712-202305

45510GEAR ASSY, STEERING

main45510-BZ360iF800..RHD201712

main45510-BZ370iF800..MID..PH201804-202305

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-BZ120iF800..MID..PH201712-202305

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-BZ120iF800..MID..PH201712-202305

45535BOOT, STEERING RACK, NO.1

main45535-BZ110×2iF800..MID..PH201712-202305

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-BZ050×2iF800..MID..PH201712-202305

45535BCLIP(FOR STEERING RACK BOOT)

main45537-BZ030×2iF800..MID..PH201712-202305

9004105341

main90041-05341

9004120098

main90041-20098

9004179316

main90041-79316

9004A11435

main9004A-11435

9004A17247

main9004A-17247

14 parts on this diagram · 1 diagram in section
