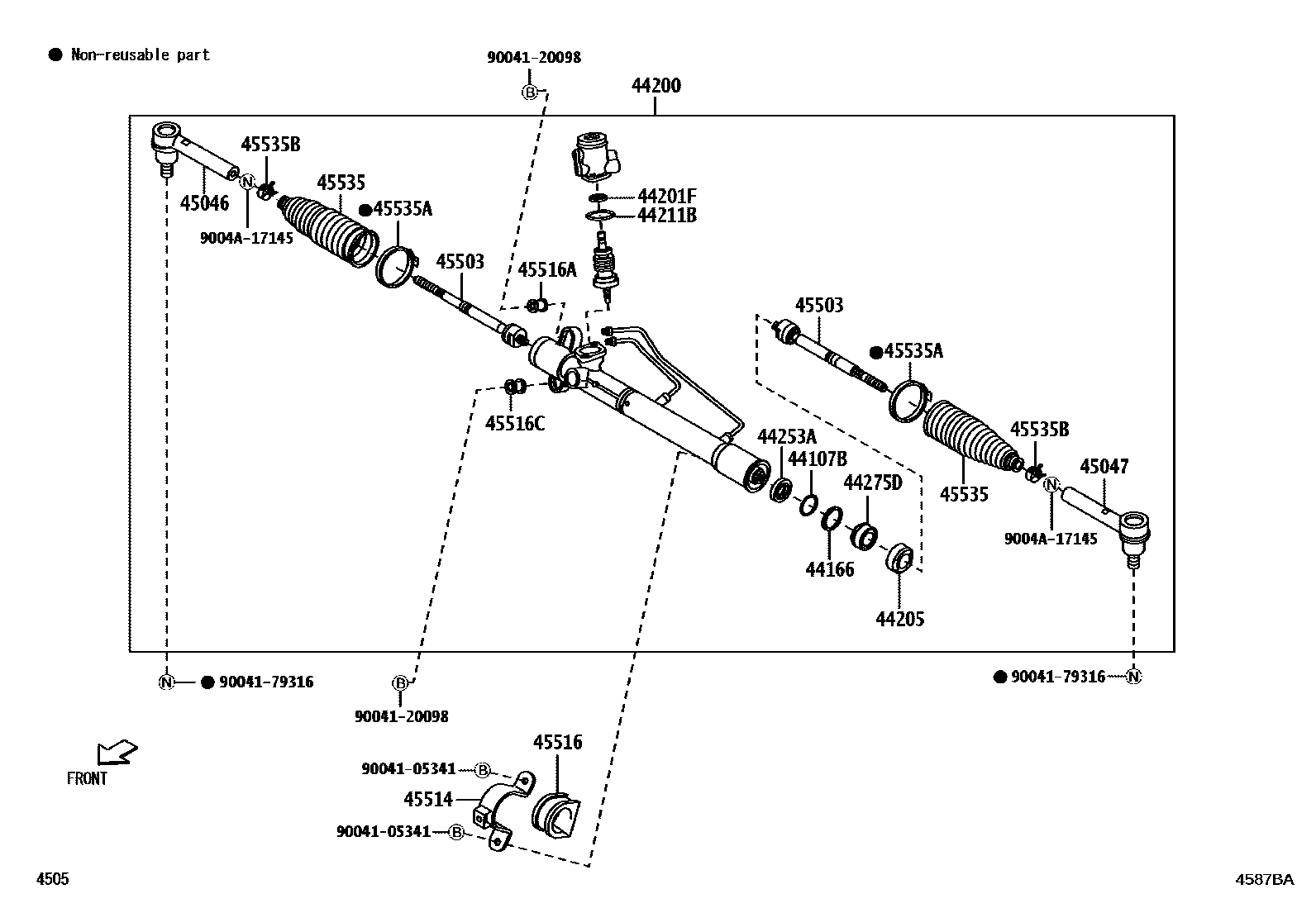

Toyota RUSH — FRONT STEERING GEAR & LINK

44107BRING, O(FOR POWER STEERING GEAR HOUSING)

main9004A-30033i201010-201503

ID=35.1

44166RING, SEAL, NO.2

main44166-BZ080i201010-201503

44200LINK ASSY, POWER STEERING

main44200-BZ070i200712-201009

main44200-BZ080i200612-201009

44201FSEAL, OIL(FOR POWER STEERING CONTROL VALVE)

main44269-BZ010i200612-201009

44205STOPPER SUB-ASSY, CYLINDER END

main44275-BZ060i200712-201009

main44275-BZ070i200612-201009

44211BRING(FOR CONTROL VALVE HOUSING)

main9004A-30031i200612-201009

44253ASEAL, OIL(FOR POWER STEERING RACK HOUSING)

main9004A-31044i200612-201009

44275DBUSH(FOR CYLINDER END STOPPER)

main44205-BZ050i200612-201009

45046END SUB-ASSY, TIE ROD, RH

main45046-BZ060i200612-201009

main45046-BZ130i201010-201503

45047END SUB-ASSY, TIE ROD, LH

main45046-BZ060i200612-201009

main45046-BZ130i201010-201503

45503END SUB-ASSY, STEERING RACK

main45503-BZ050×2i201010-201503

main45503-BZ110×2i201010-201503

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-BZ060i201010-201503

main45514-BZ120i201709

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-BZ120i200612-201009

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-BZ140i201503

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-BZ110i200612-201009

45535BOOT, STEERING RACK, NO.1

main45535-BZ040×2i201010-201503

45535ACLAMP(FOR STEERING RACK BOOT)

main15549-BZ010×2i201503

main9004A-46136×2i200612-201009

45535BCLIP(FOR STEERING RACK BOOT)

main9004A-46180×2i200612-201009

9004105341

main90041-05341

9004120098

main90041-20098

9004179316

main90041-79316

9004A17145

main9004A-17145

22 parts on this diagram · 2 diagrams in section

FRONT STEERING GEAR & LINK for Toyota RUSH

This section contains 23 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota RUSH. Key components include: RING, O(FOR POWER STEERING GEAR HOUSING), RING, SEAL, NO.2, LINK ASSY, POWER STEERING, SEAL, OIL(FOR POWER STEERING CONTROL VALVE), STOPPER SUB-ASSY, CYLINDER END.
