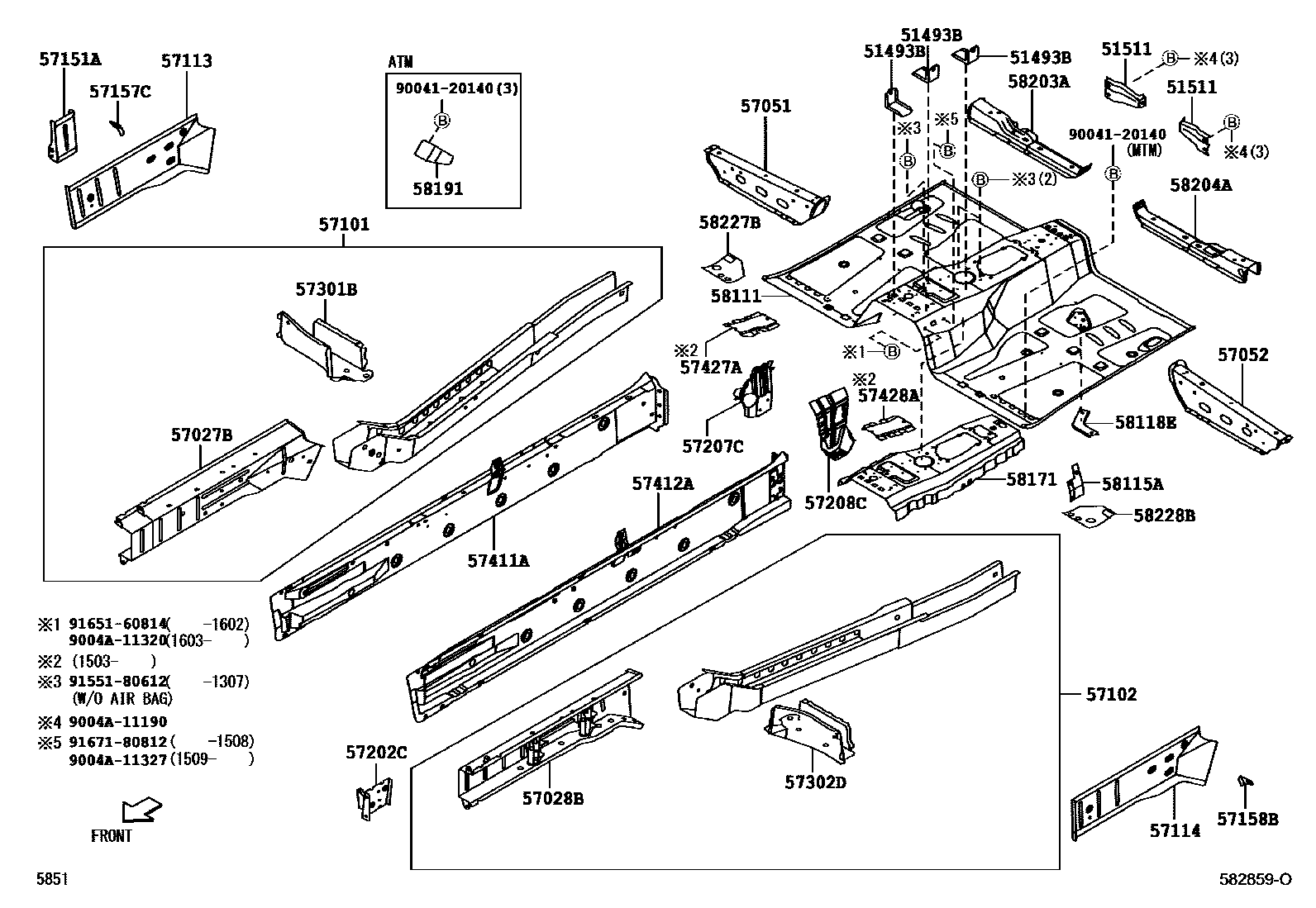

Toyota RUSH — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51493BBRACKET, UNDER GUARD, FR NO.1

main51493-BZ010×3iF700201010-201503

51511GUSSET, UPPER CONTROL ARM SUPPORT, RH

main51511-BZ010×2iF700200612-201009

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-BZ050iF700200612-201009

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-BZ030iF700200612-201009

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-BZ050iF700200612-201009

main57051-BZ160iF700201108-201503

main57051-BZ220iF700201503

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-BZ040iF700200612-201009

main57052-BZ110iF700201108-201503

main57052-BZ140iF700201503

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-BZ130iF700200612-201009

main57101-BZ560iF700201503

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-BZ160iF700200612-201009

main57102-BZ610iF700201503

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-BZ010iF700200612-201008

main57113-BZ020iF700201010-201503

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-BZ010iF700200612-201008

main57114-BZ030iF700201010-201503

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-BZ060iF700200612-201009

main57151-BZ130iF700201503

57157CBRACKET, FLEXIBLE HOSE, FRONT RH

main57157-BZ020iF700200612-201009

57158BBRACKET, FLEXIBLE HOSE, FRONT LH

main57158-BZ020iF700200612-201009

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-BZ010iF700200612-201009

main57202-BZ050iF700201503

57207CBRACKET SUB-ASSY, ENGINE REAR MOUNTING, RH

main57207-BZ010iF700200612-201009

main57207-BZ040iF700201106-201503

57208CBRACKET SUB-ASSY, ENGINE REAR MOUNTING, LH

main57208-BZ010iF700200612-201009

main57208-BZ050iF700201106-201503

57301BOUTRIGGER SUB-ASSY, NO.1 RH

main57301-BZ020iF700201010-201503

57302DOUTRIGGER SUB-ASSY, NO.1 LH

main57302-BZ030iF700200612-201009

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-BZ090iF700200612-200806

main57401-BZ091iF700200806-201009

main57401-BZ330iF700201503

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-BZ070iF700200612-200806

main57402-BZ071iF700200806-201009

57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-BZ070iF700201503

57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57428-BZ020iF700201503

58111PAN, FRONT FLOOR

main58111-BZ080iF700..5F200612-201009

main58111-BZ090iF700..E4AT200612-201009

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-BZ010iF700201503

58118EBRACKET, JACK SET

main58118-87Z02iF700200612-201009

main58793-BZ010iF700201503

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-BZ011iF700..5F200612-201009

main58107-BZ050iF700..E4AT200612-201009

main58107-BZ150iF700..E4AT201106-201503

main58107-BZ160iF700..5F201106-201503

sub58107-BZ021

main58107-BZ170iF700..5F201503

main58107-BZ180iF700..E4AT201503

58191FOOTREST, FRONT FLOOR

main58191-BZ010iF700..E4AT200612-201009

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-BZ010iF700200612-201009

main58203-BZ040iF700201106-201107

main58203-BZ050iF700201108-201503

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-BZ010iF700200612-201009

main58204-BZ040iF700201106-201107

main58204-BZ050iF700201108-201503

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-BZ020iF700200612-201009

58228BPLATE, FRONT FLOOR PANEL SIDE, LH

main58228-BZ010iF700200612-201009

9004120140

main90041-20140

9004A11190

main9004A-11190

9004A11320

main9004A-11320

9004A11327

main9004A-11327

9155180612

main91551-80612

9165160814

main91651-60814

9167180812

main91671-80812

38 parts on this diagram · 1 diagram in section
