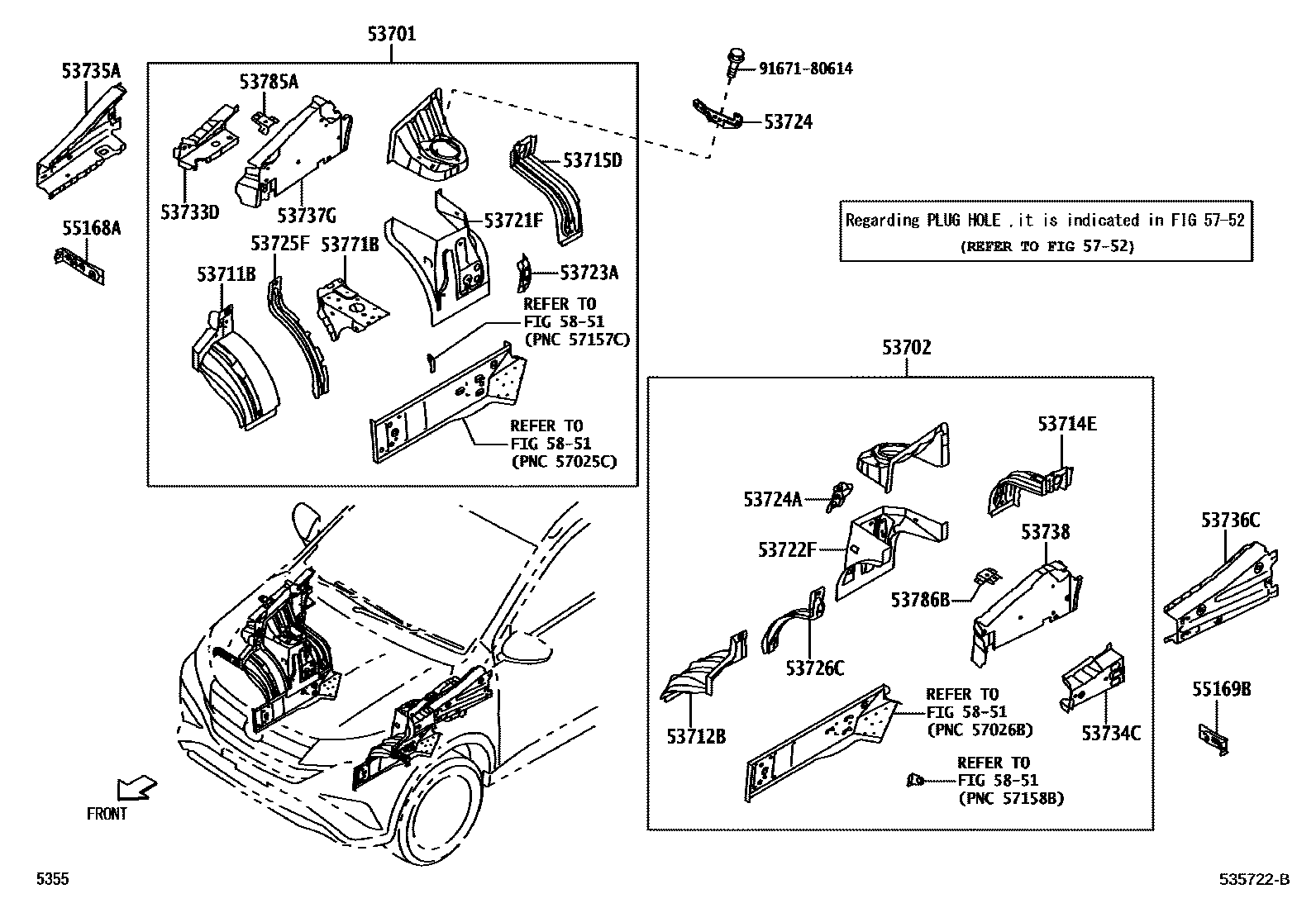

Toyota RUSH — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-BZ590iF850201812-202310

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-BZ710iF850201812-202310

53711BAPRON, FRONT FENDER, FRONT RH

main53711-BZ160iF850201812-202310

53712BAPRON, FRONT FENDER, FRONT LH

main53712-BZ170iF850201812-202310

53714EAPRON, FRONT FENDER, REAR LH

main53714-BZ010iF850201812-202310

53715DAPRON, FENDER SIDE, RH

main53713-BZ010iF850201812-202310

53721FAPRON, FRONT FENDER, NO.1 RH

main53717-BZ100iF850201812-202310

53722FAPRON, FRONT FENDER, NO.1 LH

main53718-BZ101iF850201812-202310

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-BZ100iF850201812-202310

53724BRACKET, CLAMP

main82715-BZF90iF850201812-202310

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-BZ050iF850201812-202310

53725FAPRON, FRONT FENDER NO.2 SIDE, RH

main53725-BZ020iF850201812-202310

53726CAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-BZ020iF850201812-202310

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-BZ070iF850201812-202310

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-BZ070iF850201812-202310

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main57023-BZ040iF850201812-202310

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main57024-BZ050iF850201812-202310

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-BZ080iF850201812-202310

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-BZ080iF850201812-202310

53771BSUPPORT, BATTERY CARRIER, RH

main53703-BZ080iF850201812-202310

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-BZ020iF850201812-202310

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-BZ020iF850201812-202310

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-BZ210iF850201812-202310

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-BZ170iF850201812-202310

5752

5851

9167180614

main91671-80614

27 parts on this diagram · 2 diagrams in section
