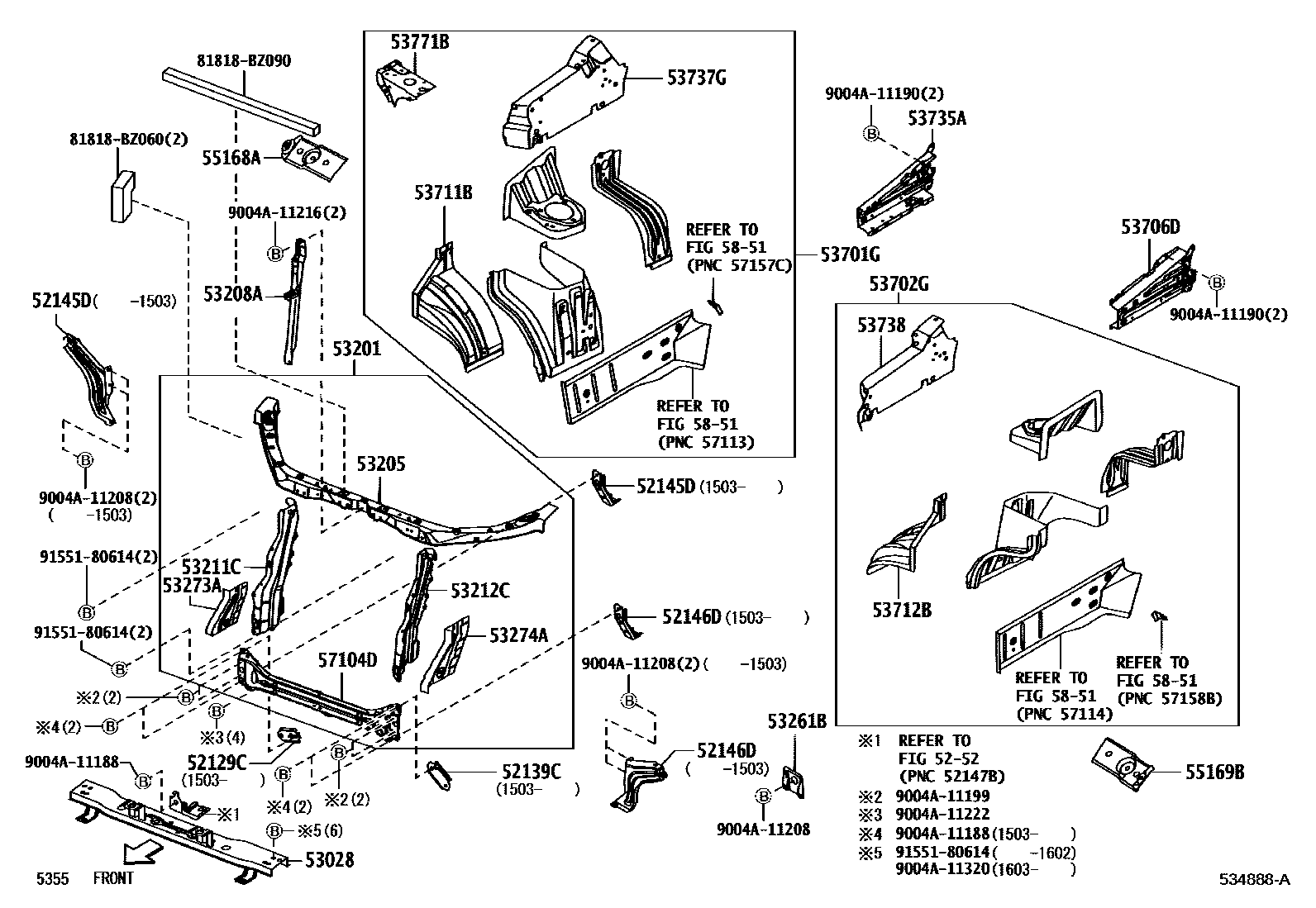

Toyota RUSH — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52129CARM, FRONT BUMPER, UPPER NO.2 RH

main52143-BZ080iF700201503

52139CARM, FRONT BUMPER, UPPER NO.2 LH

main52144-BZ070iF700201503

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-BZ040iF700200612-201009

main52145-BZ070iF700201010-201503

main52147-BZ160iF700201503

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-BZ020iF700200612-201009

main52146-BZ040iF700201010-201503

main52147-BZ160iF700201503

5252

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-BZ060iF700200612-201009

53201SUPPORT SUB-ASSY, RADIATOR

main53201-BZ160iF700201503

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-BZ060iF700200612-201009

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-BZ030iF700200612-201009

53211CSUPPORT, RADIATOR, RH

main53211-BZ060iF700200612-201009

RH

53212CSUPPORT, RADIATOR, LH

main53212-BZ080iF700200612-201009

LH

53261BBRACKET, RADIATOR RESERVE TANK MOUNTING

main53261-BZ020iF700201010-201503

53273AREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-BZ020iF700200612-201009

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-BZ030iF700200612-201009

53701GAPRON SUB-ASSY, FRONT FENDER, RH

main53703-BZ060iF700200612-201009

53702GAPRON SUB-ASSY, FRONT FENDER, LH

main53704-BZ060iF700200612-201009

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-BZ020iF700200612-200708

main53736-BZ020iF700..IDN200708-201009

53711BAPRON, FRONT FENDER, FRONT RH

main53711-BZ060iF700201010-201503

53712BAPRON, FRONT FENDER, FRONT LH

main53712-BZ060iF700200612-201009

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-BZ020iF700200612-201009

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-BZ030iF700201010-201503

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-BZ030iF700201503

53771BSUPPORT, BATTERY CARRIER, RH

main53771-BZ020iF700200612-201009

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-BZ060iF700200612-201009

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-BZ030iF700201503

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-BZ090iF700200612-201009

5851

81818BZ060PACKING

main81818-BZ060

81818BZ090PACKING

main81818-BZ090

9004A11188

main9004A-11188

9004A11190

main9004A-11190

9004A11199

main9004A-11199

9004A11208

main9004A-11208

9004A11216

main9004A-11216

9004A11222

main9004A-11222

9004A11320

main9004A-11320

9155180614

main91551-80614

37 parts on this diagram · 2 diagrams in section
