Toyota RUSH — FRONT DOOR WINDOW REGULATOR & HINGE

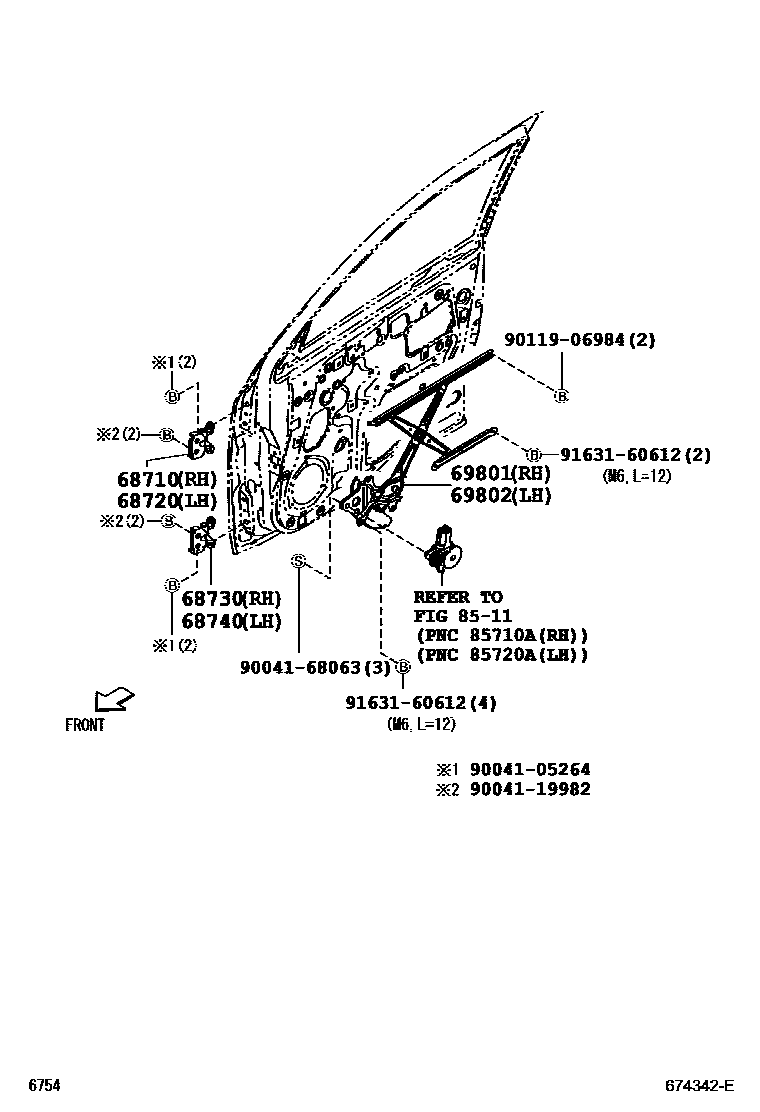

Parts diagram

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-B4010i200811

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-B4010i200811

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-B4010i200811

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-B4010i200811

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-B4010i200811

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-B4010i200811

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9004105264

main90041-05264

9004119982

main90041-19982

9004168063

main90041-68063

9011906984

main90119-06984

9163160612

main91631-60612

12 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota RUSH

This section contains 12 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota RUSH. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
