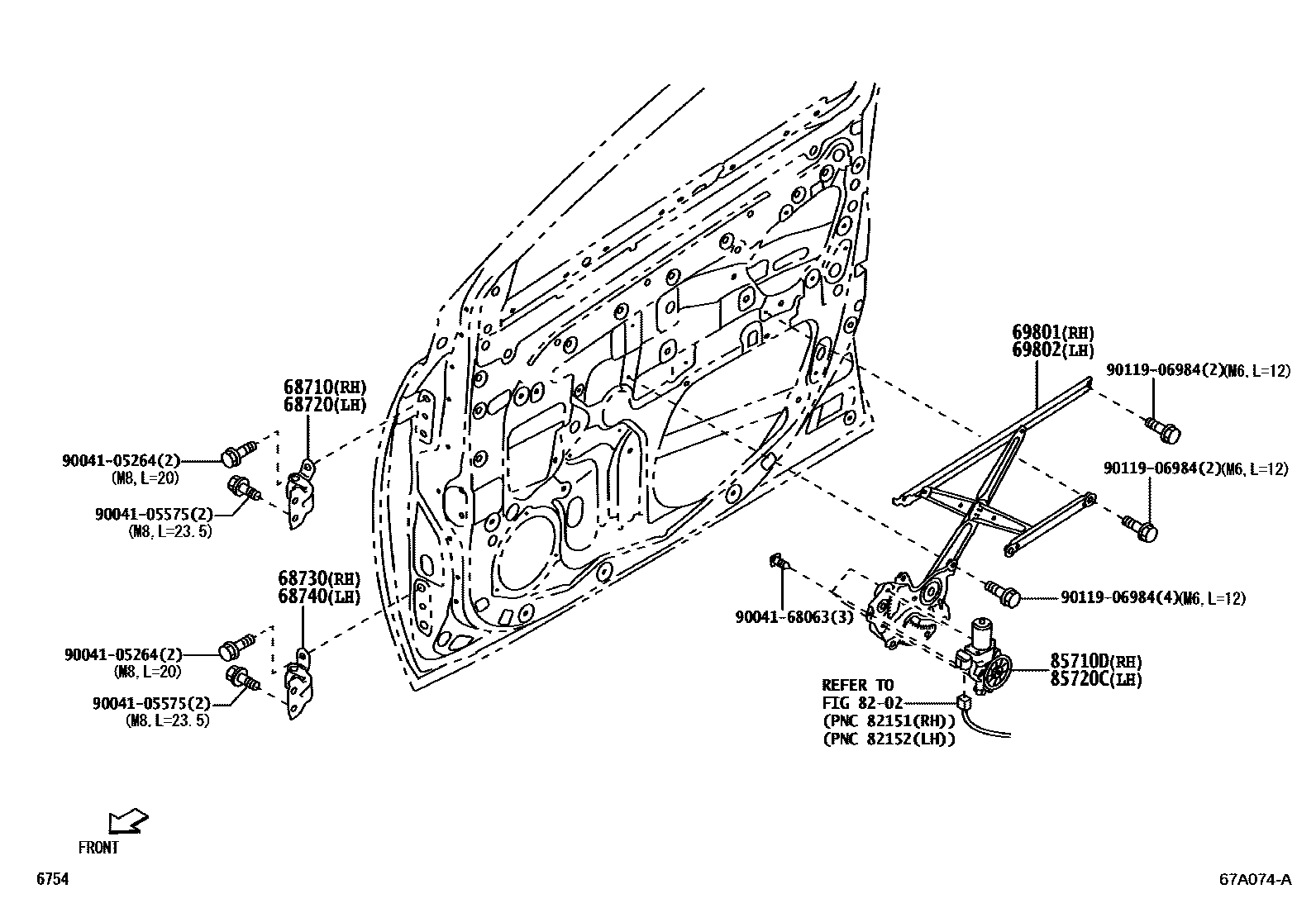

Toyota RUSH — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68750-BZ120i201812-202310

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68760-BZ120i201812-202310

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68760-BZ120i201812-202310

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68750-BZ120i201812-202310

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-BZ150i201812-202310

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-BZ150i201812-202310

8202WIRING & CLAMP

→ Go to FIG 82-02

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-BZ170i201812-202310

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-BZ042i201812-202310

9004105264

main90041-05264

9004105575

main90041-05575

9004168063

main90041-68063

9011906984

main90119-06984

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota RUSH

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota RUSH. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
