Toyota RUSH — FRONT DOOR PANEL & GLASS

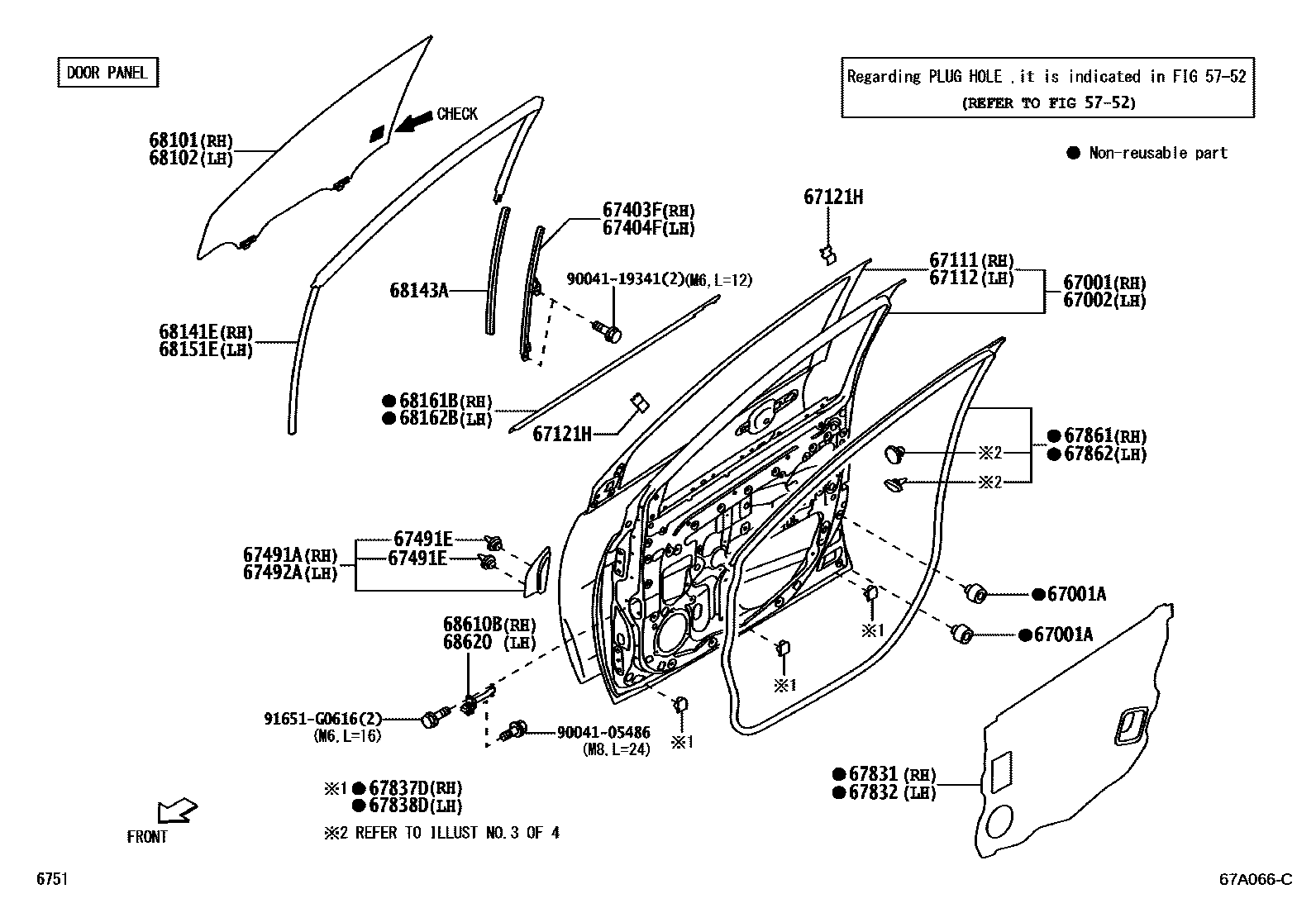

Parts diagram
5752HOLE PLUG
→ Go to FIG 57-52
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-BZ670i201812-202310
67001ACUSHION, FRONT DOOR PANEL
main90541-09069×4i201812-202310
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-BZ670i201812-202310
67111PANEL, FRONT DOOR, OUTER RH
main67111-BZ390i201812-202310
67112PANEL, FRONT DOOR, OUTER LH
main67112-BZ390i201812-202310
67121HSTOPPER, FRONT DOOR WINDOW
main67216-BZ130×4i201812-202310
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
main67403-BZ160i201812-202310
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
main67404-BZ160i201812-202310
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-BZ160i201812-202310
67491ERETAINER, DOOR TRIM
main67771-B2010×4i201812-202310
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-BZ160i201812-202310
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-BZ440i201812-202310
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67831-BZ440i201812-202310
67837DSEAL, FRONT DOOR VENT, RH
main67837-BZ010×3i201812-202310
67838DSEAL, FRONT DOOR VENT, LH
main67837-BZ010×3i201812-202310
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-BZ220i201812-202310
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-BZ210i201812-202310
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68101-BZ350i201812-201905
L/IDN MARK
main68101-BZ351i201905-202310
W/IDN MARK
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68102-BZ350i201812-201905
L/IDN MARK
main68102-BZ351i201905-202310
W/IDN MARK
68141ERUN, FRONT DOOR GLASS, RH
main68141-BZ200i201812-202310
68143ARUN, FRONT DOOR GLASS, NO.2
main68143-BZ110×2i201812-202310
68151ERUN, FRONT DOOR GLASS, LH
main68151-BZ200i201812-202310
68161BWEATHERSTRIP, FRONT DOOR GLASS, OUTER RH
main68161-BZ190i201912-202310
main68161-BZ211i201812-201911
68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH
main68162-BZ180i201912-202310
main68162-BZ201i201812-201911
68610BCHECK ASSY, FRONT DOOR, RH
main68610-BZ200i201812-202310
68620CHECK ASSY, FRONT DOOR, LH
main68610-BZ200i201812-202310
9004105486
main90041-05486
9004119341
main90041-19341
91651G0616
main91651-G0616

30 parts on this diagram · 4 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota RUSH

This section contains 46 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota RUSH. Key components include: HOLE PLUG, PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH.
