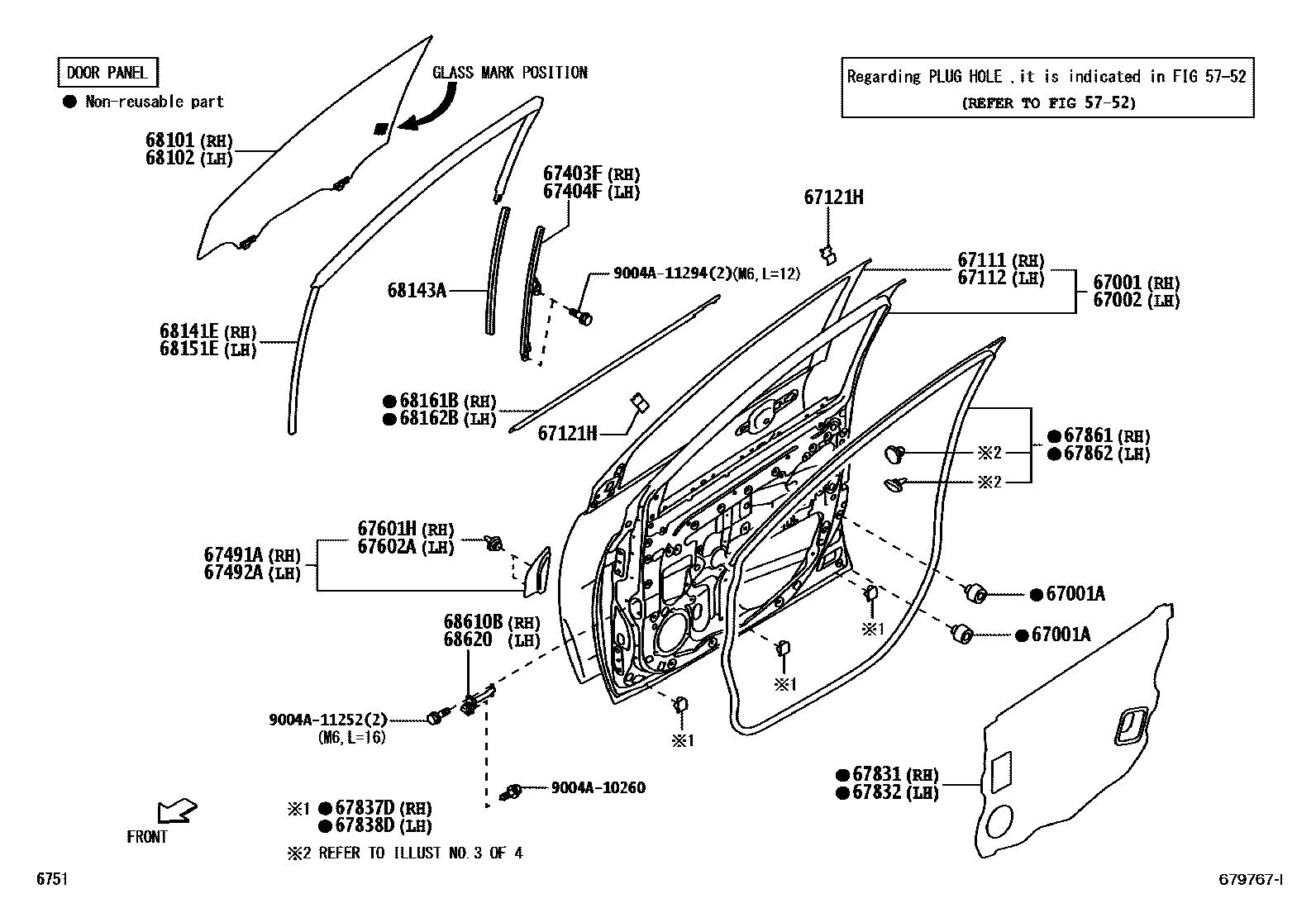

Toyota RUSH — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1WEATHERSTRIP RETAINER & CLIP 0004 1BLACK OUT TAPE

5752

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-BZ530iF800..GCC201804-202401

main67001-BZ660iF800..MID..PH201712-202305

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×4iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-BZ640iF800..MID..PH201712-202305

main67002-BZ650iF800..GCC201804-202401

67111PANEL, FRONT DOOR, OUTER RH

main67111-BZ390iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67112PANEL, FRONT DOOR, OUTER LH

main67112-BZ390iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67121HSTOPPER, FRONT DOOR WINDOW

main67216-BZ130×4iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-BZ160iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-BZ160iF800..MID..PH201712-202305

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-BZ160iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-BZ160iF800..MID..PH201712-202305

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-BZ720-C0iF800..HI..IDN202403

BLACK,TRIM1#

main67610-BZ810-C1iF800..HI;F800..MID..IDN201712-201910

-,TRIM1#

main67610-BZ860-C2iF800..MID..(GCC,GEN,PH,VN)201804

-,TRIM1#

main67610-BZB50-C0iF800..MID..IDN;F800..HI..(GCC,GEN,PH,VN)201910

BLACK,TRIM1#

67601HRETAINER, DOOR TRIM, RH

main67771-B2010×2iF800..MID..PH201712-202305

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-BZ760-C0iF800..HI..IDN202403

BLACK,TRIM1#

main67620-BZ810-C1iF800..HI;F800..MID..IDN201712-201910

-,TRIM1#

main67620-BZ860-C2iF800..MID..(GCC,GEN,PH,VN)201804

-,TRIM1#

main67620-BZB30-C0iF800..HI..IDN201910-202403

BLACK,TRIM1#

67602ARETAINER, DOOR TRIM, LH

main67771-B2010×2iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-BZ440iF800..MID..PH201712-202305

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-BZ440iF800..MID..PH201712-202305

67837DSEAL, FRONT DOOR VENT, RH

main67837-BZ020×3iF800..MID..PH201712-202305

67838DSEAL, FRONT DOOR VENT, LH

main67837-BZ020×3iF800..MID..PH201712-202305

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-BZ220iF800..MID..PH201712-202305

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-BZ210iF800..MID..PH201712-202305

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-BZ350iF800201712-201905

L/IDN MARK

main68101-BZ351iF800..MID..PH201905-202305

W/IDN MARK

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-BZ350iF800201712-201905

L/IDN MARK

main68102-BZ351iF800..MID..PH201905-202305

W/IDN MARK

68141ERUN, FRONT DOOR GLASS, RH

main68141-BZ200iF800..MID..PH201712-202305

68143ARUN, FRONT DOOR GLASS, NO.2

main68143-BZ110×2iF800..MID..PH201712-202305

68151ERUN, FRONT DOOR GLASS, LH

main68151-BZ200iF800..MID..PH201712-202305

68161BWEATHERSTRIP, FRONT DOOR GLASS, OUTER RH

main68161-BZ211iF800..MID..PH201712-202305

68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH

main68162-BZ201iF800..MID..PH201712-202305

68610BCHECK ASSY, FRONT DOOR, RH

main68610-BZ160iF800..MID..PH201712-202305

68620CHECK ASSY, FRONT DOOR, LH

main68610-BZ160iF800..MID..PH201712-202305

9004A10260

main9004A-10260

9004A11252

main9004A-11252

9004A11294

main9004A-11294

33 parts on this diagram · 4 diagrams in section
