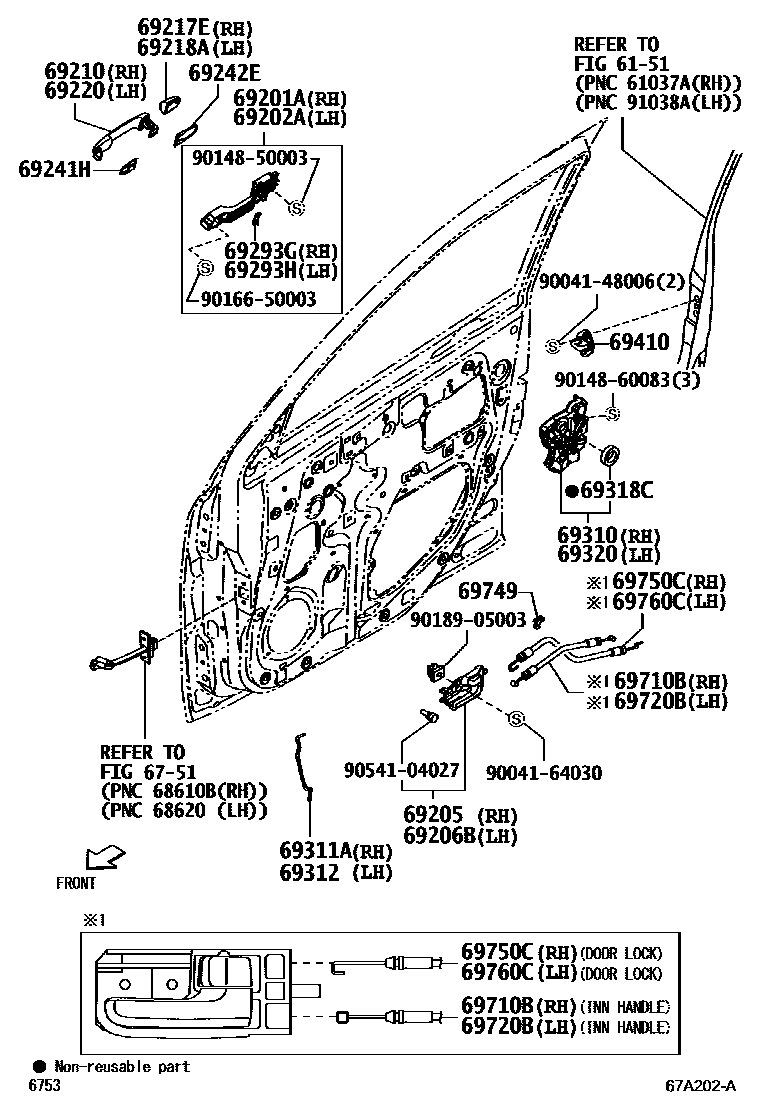

Toyota RUSH — FRONT DOOR LOCK & HANDLE
6151SIDE MEMBER
6751FRONT DOOR PANEL & GLASS
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
HI-G PACKAGE,DK.GRAY,TRIM1#; MID PACKAGE,DK.GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
HI-G PACKAGE,DK.GRAY,TRIM1#; MID PACKAGE,DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE,W23
GRAY ME.,S33
CHAMPAGNE ME.,T23
BRITISH GREEN MC.,G37
BLUE M.M.,B58
RED,R40
SILVER ME.,S28
BLACK M.M.,X07
NO PAINT REQ.
PLATING,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(ECONEPEACE)
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK
WHITE W20 ONAJI 2C1B,W23
GRAY ME.,S33
CHAMPAGNE ME.,T23
BRITISH GREEN MC.,G37
BLUE M.M.,B58
RED,R40
SILVER ME.,S28
BLACK M.M.,X07
69218ACOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE,W23
GRAY ME.,S33
CHAMPAGNE ME.,T23
BRITISH GREEN MC.,G37
BLUE M.M.,B58
RED,R40
SILVER ME.,S28
BLACK M.M.,X07
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE,W23
GRAY ME.,S33
CHAMPAGNE ME.,T23
BRITISH GREEN MC.,G37
BLUE M.M.,B58
RED,R40
SILVER ME.,S28
BLACK M.M.,X07
NO PAINT REQ.
PLATING,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(ECONEPEACE)
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
INN HANDLE SIDE
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
INN HANDLE SIDE
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
DOOR LOCK
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
DOOR LOCK
9004148006
main90041-48006
9004164030
main90041-64030
9014850003
main90148-50003
9014860083
main90148-60083
9016650003
main90166-50003
9018905003
main90189-05003
9054104027
main90541-04027
32 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota RUSH
This section contains 32 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota RUSH. Key components include: SIDE MEMBER, FRONT DOOR PANEL & GLASS, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
