Toyota RUSH — FRONT AXLE HUB

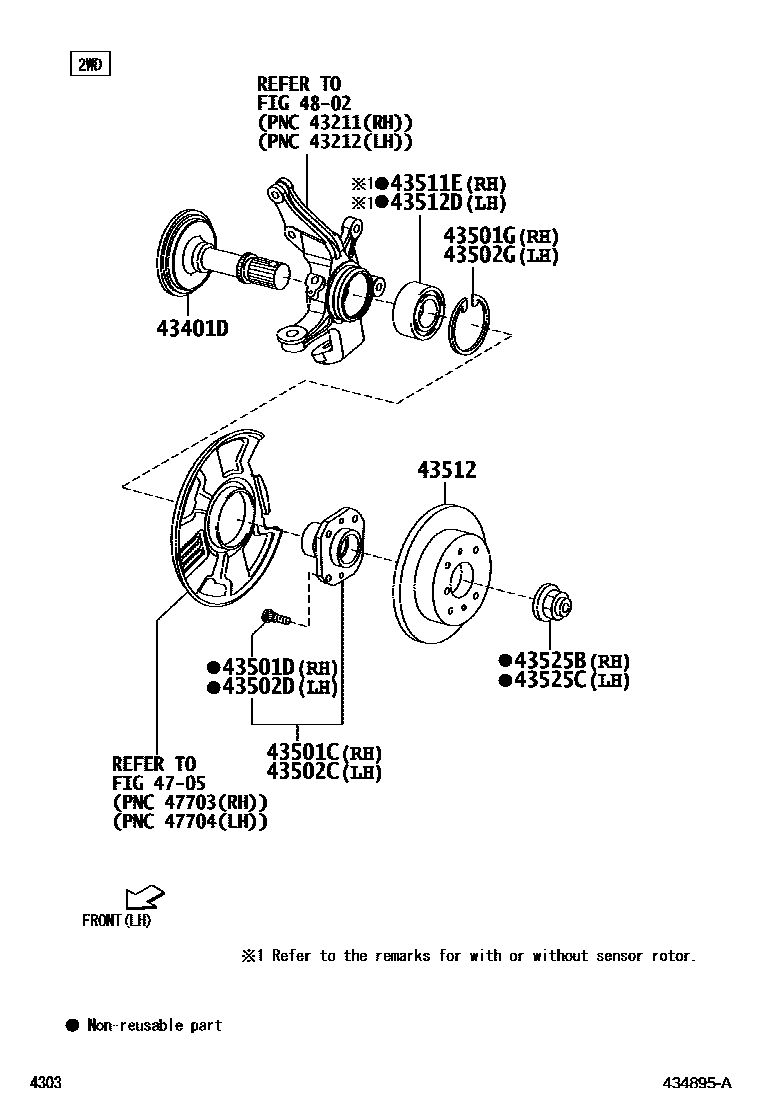

Parts diagram
43401DSPINDLE SUB-ASSY, STEERING KNUCKLE
main43401-B4010×2i200811
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-87401i200811
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90049-12055×5i200811
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90045-21111i200811
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-87401i200811
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90049-12055×5i200811
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90045-21111i200811
43511EBEARING (FOR FRONT AXLE HUB RH)
main90043-63368i200811-200911
W/O SENSOR ROTOR
main90043-63369i201605-201806
W/SENSOR ROTOR
43512DISC, FRONT
main43512-87402×2i200811-200911
main43512-B4010×2i201605
43512DBEARING (FOR FRONT AXLE HUB LH)
main90043-63368i200811-200911
W/O SENSOR ROTOR
main90043-63369i201605-201806
W/SENSOR ROTOR
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
main90041-70379i200811
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
main90041-70379i200811
4705FRONT DISC BRAKE CALIPER & DUST COVER
→ Go to FIG 47-05
4802FRONT AXLE ARM & STEERING KNUCKLE
→ Go to FIG 48-02

14 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota RUSH

This section contains 15 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota RUSH. Key components include: FRONT DRIVE SHAFT, SPINDLE SUB-ASSY, STEERING KNUCKLE, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
