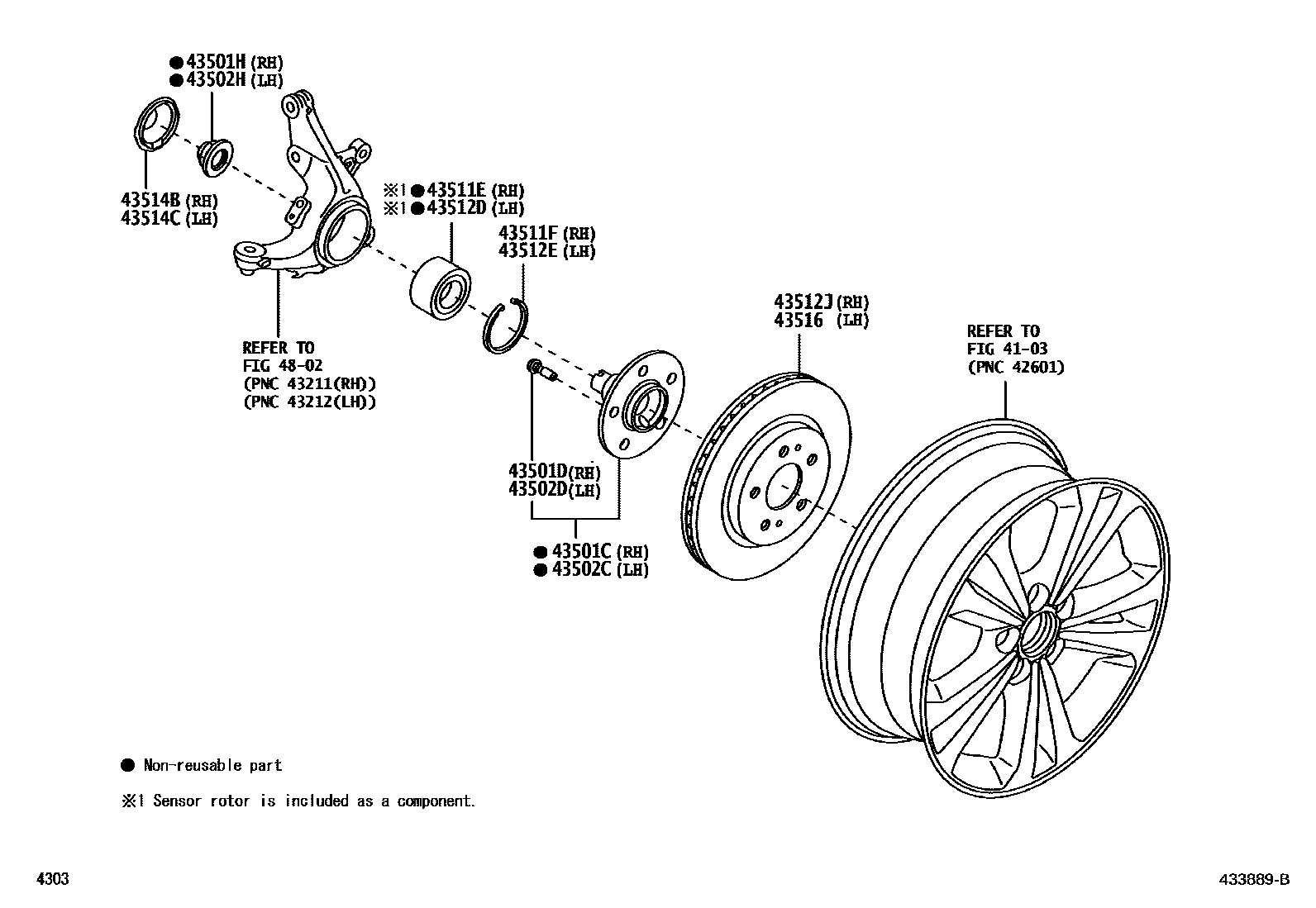

Toyota RUSH — FRONT AXLE HUB

4103

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-BZ200iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12055×5iF800..MID..PH201712-202305

43501HNUT (FOR FRONT AXLE SHAFT RH)

main9004A-17227iF800..MID..PH201712-202305

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-BZ200iF800..MID..PH201712-202305

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12055×5iF800..MID..PH201712-202305

43502HNUT (FOR FRONT AXLE SHAFT LH)

main9004A-17227iF800..MID..PH201712-202305

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-BZ050iF800..MID..PH201712-202305

W/SENSOR ROTOR

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21188iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-BZ050iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

W/SENSOR ROTOR

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21188iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

43512JDISC, FRONT RH

main43512-BZ330iF800..IDN201712

main43512-BZ340iF800..MID..PH201804-202305

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-BZ040iF800..MID..PH201712-202305

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-BZ040iF800..MID..PH201712-202305

43516DISC, FRONT LH

main43512-BZ330iF800..IDN201712

main43512-BZ340iF800..MID..PH201804-202305

4802

16 parts on this diagram · 1 diagram in section
