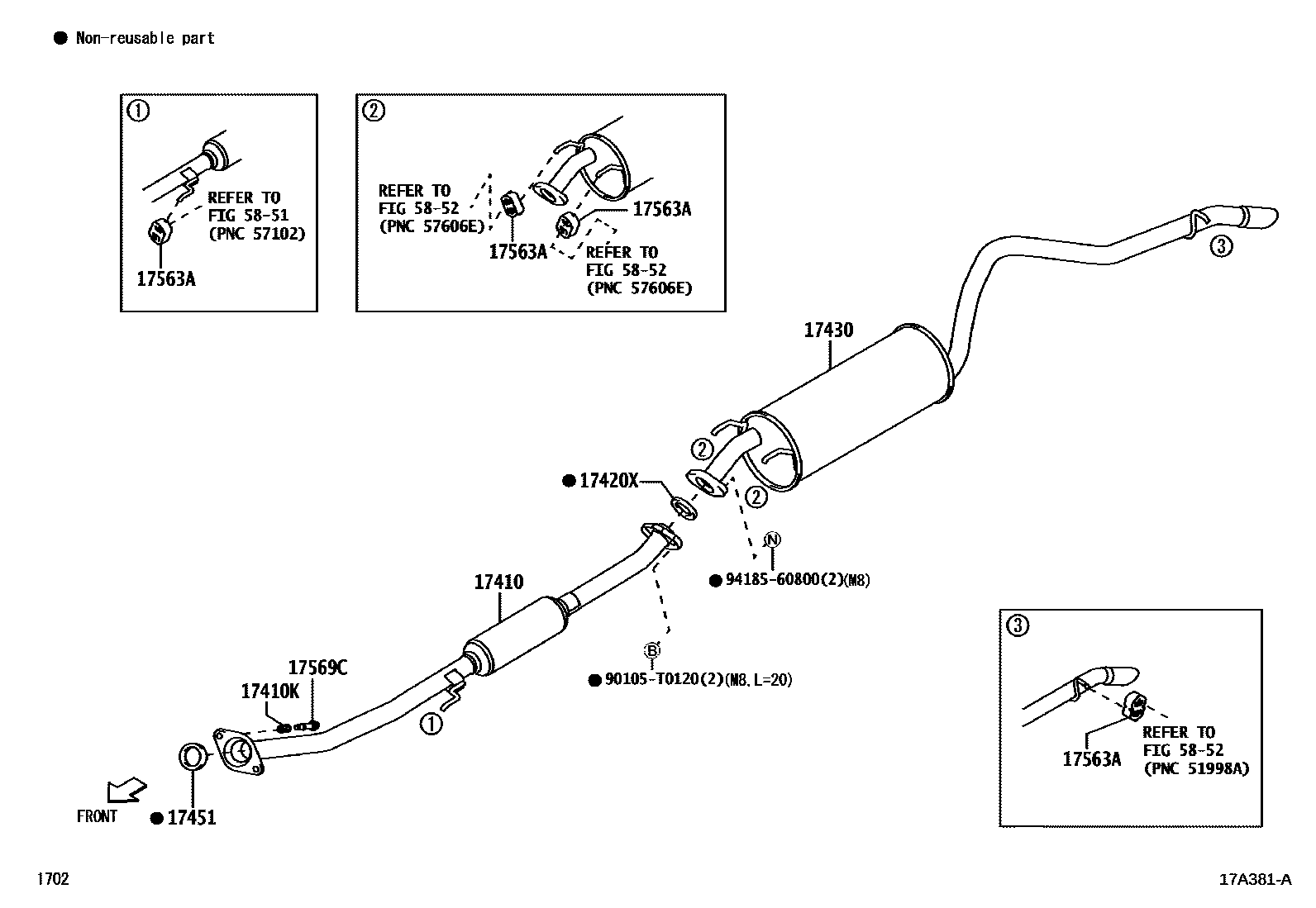

Toyota RUSH — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410KSPRING, EXHAUST PIPE
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17563ASUPPORT, EXHAUST PIPE, NO.3
17569CBOLT, EXHAUST PIPE SUPPORT
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
5852REAR FLOOR PANEL & REAR FLOOR MEMBER
90105T0120
main90105-T0120
9418560800
main94185-60800
11 parts on this diagram · 1 diagram in section
EXHAUST PIPE for Toyota RUSH
This section contains 11 genuine Toyota parts for the EXHAUST PIPE system of the Toyota RUSH. Key components include: PIPE ASSY, EXHAUST, FRONT, SPRING, EXHAUST PIPE, GASKET, EXHAUST PIPE, CENTER, PIPE ASSY, EXHAUST, TAIL, GASKET, EXHAUST PIPE.
