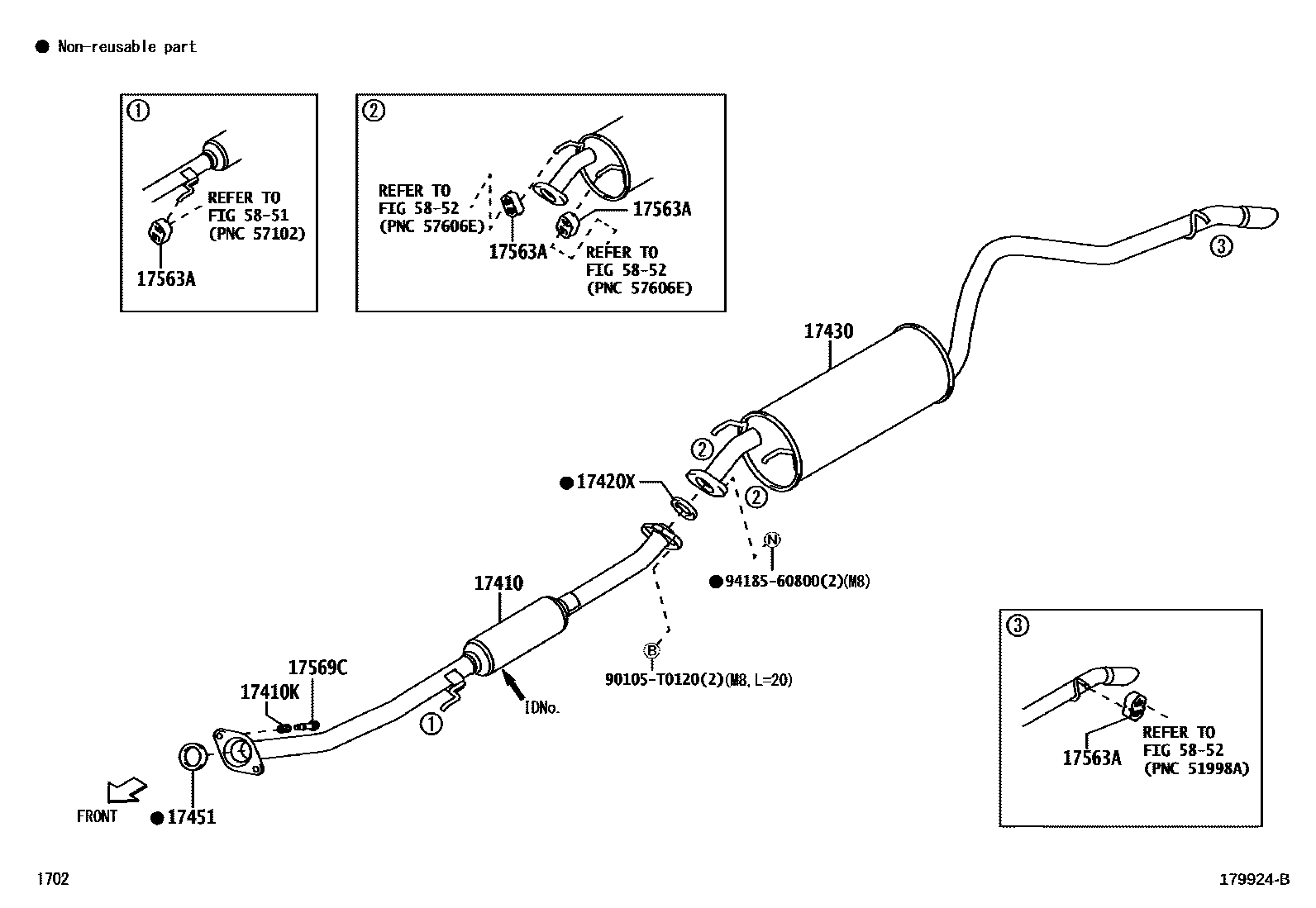

Toyota RUSH — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-BZ660supersedes 17410-BZ830i2NRVE..F800..GCC,GEN201712

ID NO. = 3BZ21

main17410-BZ830supersedes 17410-BZ830i2NRVE..F800..LHD..GEN201804

ID NO. = BZ150,NEPAL

main17410-BZB30i2NRVE..F800..RHD..E4AT..HI..GEN202101

MALAYSIA

17410KSPRING, EXHAUST PIPE

main17152-B1010×2i2NRVE..F800201712-202304

main17152-BZ100×2i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,IDN,VN202305

17420XGASKET, EXHAUST PIPE, CENTER

main17451-BZ010i2NRVE..F800..MID..PH201712-202305

17430PIPE ASSY, EXHAUST, TAIL

main17430-BZ460i2NRVE..F800..MID..PH201712-202305

17451GASKET, EXHAUST PIPE

main17451-21030i2NRVE..F800..MID..PH201712-202305

17563ASUPPORT, EXHAUST PIPE, NO.3

main17567-BZ030×4i2NRVE..F800201712-202004

main17567-BZ031×4i2NRVE..F800..MID..PH202005-202305

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97501×2i2NRVE..F800..MID..PH201712-202305

5851

5852

90105T0120

main90105-T0120

9418560800

main94185-60800

11 parts on this diagram · 1 diagram in section
