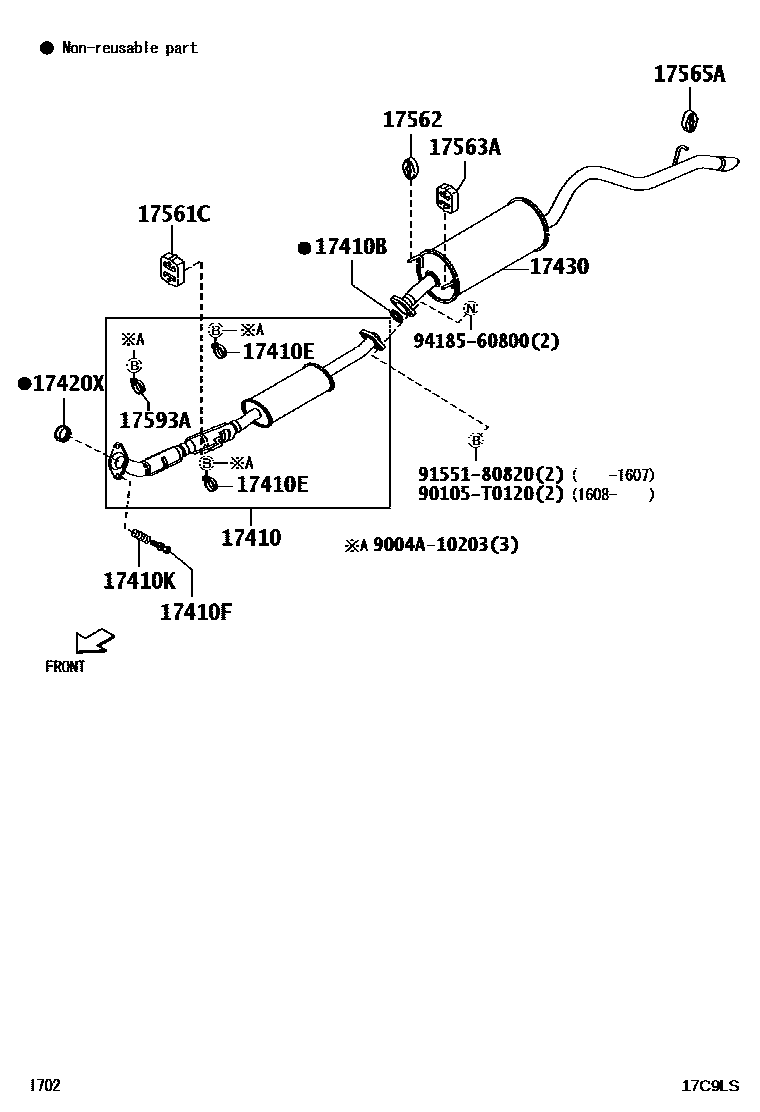

Toyota RUSH — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17410KSPRING, EXHAUST PIPE
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17561CSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17593ACLAMP
9004A10203
main9004A-10203
90105T0120
main90105-T0120
9155180820
main91551-80820
9418560800
main94185-60800
16 parts on this diagram · 1 diagram in section
EXHAUST PIPE for Toyota RUSH
This section contains 16 genuine Toyota parts for the EXHAUST PIPE system of the Toyota RUSH. Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT), BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT), SPRING, EXHAUST PIPE.
