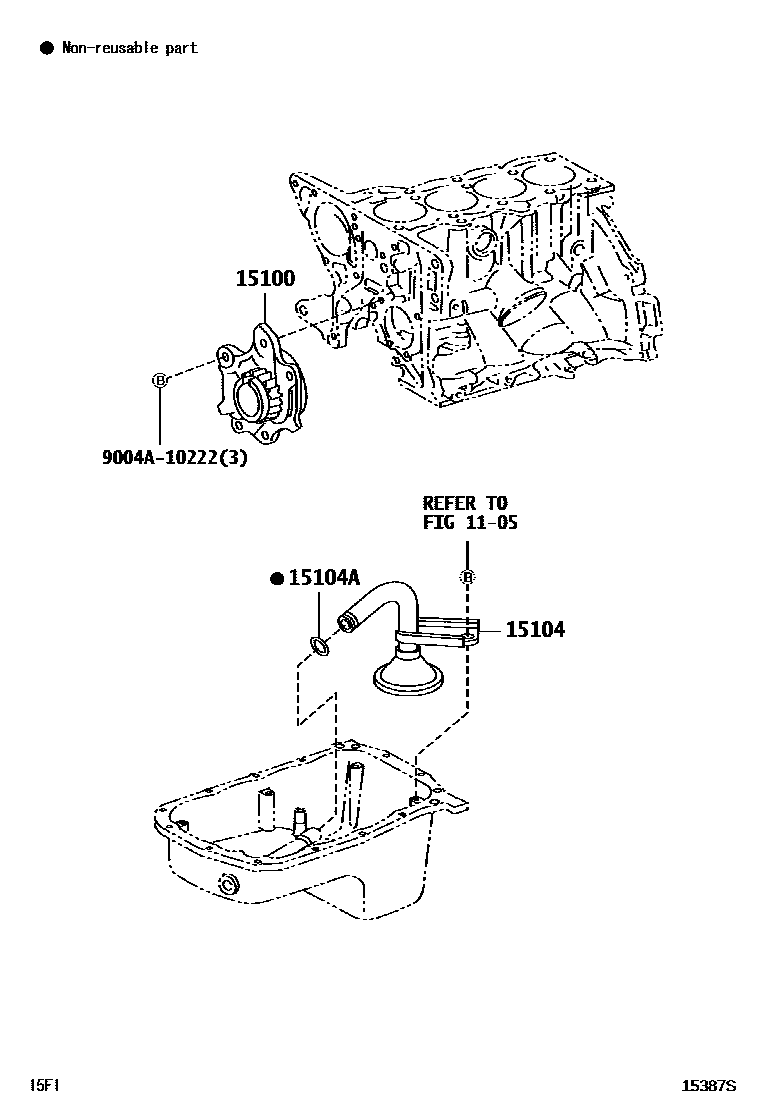

Toyota RUSH — ENGINE OIL PUMP

1105CYLINDER BLOCK

→ Go to FIG 11-05

15100PUMP ASSY, OIL

main15100-B0020i200612-201009

main15100-BZ060i201210-201503

15104STRAINER SUB-ASSY, OIL

main15140-B0010i200612-201009

15104ARING, O(FOR OIL STRAINER)

main96723-24016i200612-201009

9004A10222

main9004A-10222

5 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota RUSH

This section contains 5 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota RUSH. Key components include: CYLINDER BLOCK, PUMP ASSY, OIL, STRAINER SUB-ASSY, OIL, RING, O(FOR OIL STRAINER).
