Toyota RUSH — ELECTRONIC FUEL INJECTION SYSTEM

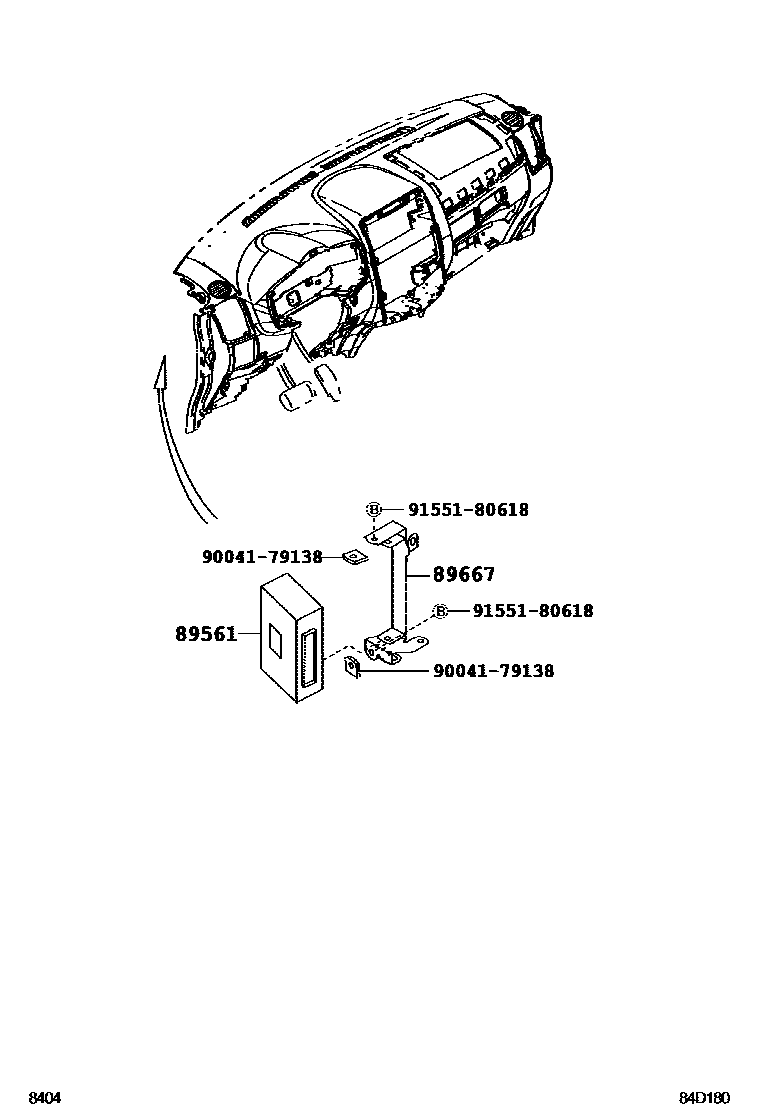

Parts diagram
89561COMPUTER, FUEL INJECTION
main89560-B4860i200811-200911
DENSO
main89560-B4870i200811-200911
DENSO
main89560-B4C50supersedes 89560-B4C40i201605
DENSO,HI-G PACKAGE
main89560-B4C70supersedes 89560-B4C60i201605
DENSO,HI-G PACKAGE
89667BRACKET, ENGINE CONTROL COMPUTER
main89667-B4030i200811-200911
9004179138
main90041-79138
9155180618
main91551-80618

4 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota RUSH

This section contains 4 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota RUSH. Key components include: COMPUTER, FUEL INJECTION, BRACKET, ENGINE CONTROL COMPUTER.
