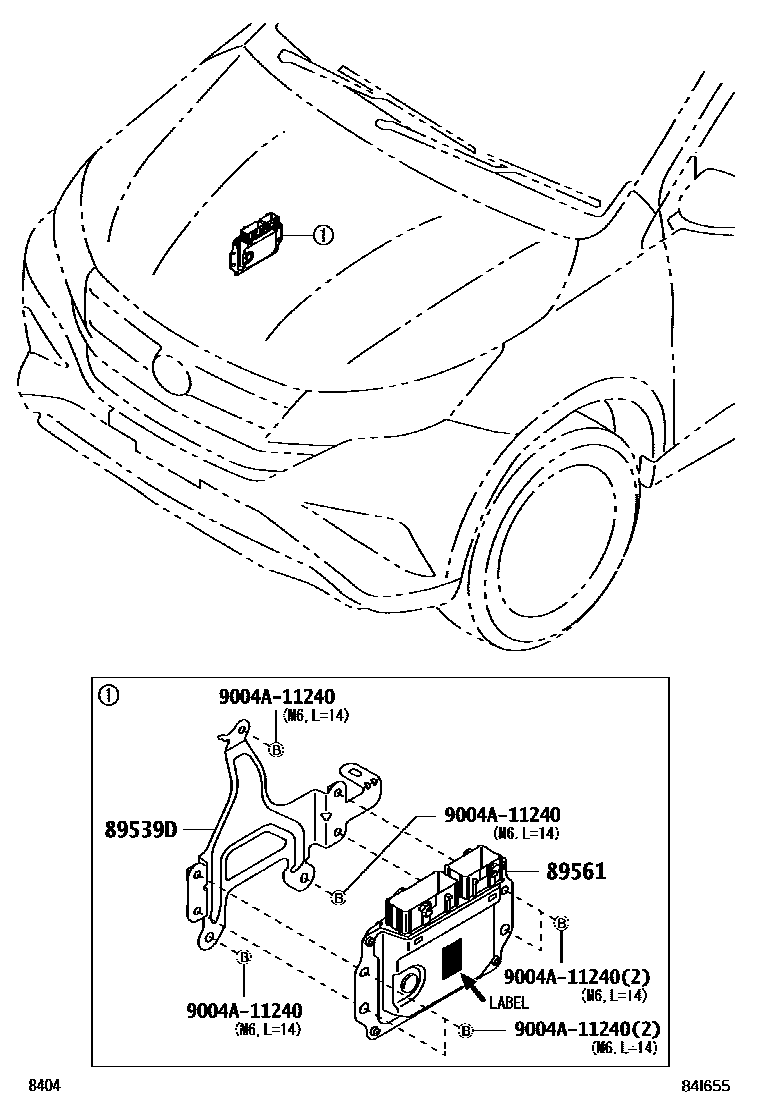

Toyota RUSH — ELECTRONIC FUEL INJECTION SYSTEM

89539DBRACKET, COMPUTER

main89539-BZ130iF800201712

89561COMPUTER, FUEL INJECTION

main89560-BZB91iF800..5F..VN;F800..RHD..5F..GEN202204-202504

DENSO,W/PART NUMBER LABEL

main89560-BZS90iF800..5F..PH201804-202204

FUJITSU TEN,W/PART NUMBER LABEL

main89560-BZS91iF800..5F..PH202204-202504

DENSO,W/PART NUMBER LABEL

main89560-BZT30iF800..E4AT..PH201804-202204

FUJITSU TEN,W/PART NUMBER LABEL

main89560-BZT31iF800..E4AT..PH202204-202504

DENSO,W/PART NUMBER LABEL

main89560-BZW60supersedes 89560-BZW60iF800..E4AT..GEN201804-202204

FUJITSU TEN,W/PART NUMBER LABEL

main89560-BZW61iF800..E4AT..(GEN,VN)202204-202504

DENSO,W/PART NUMBER LABEL

main89560-BY530supersedes 89560-BZB90iF800..RHD..5F..GEN201812-202204

DENSO,ZIMBABWE,W/PART NUMBER LABEL

main89560-BY531supersedes 89560-BZB90iF800..RHD..5F..GEN202204-202306

DENSO,ZIMBABWE,W/PART NUMBER LABEL

main89560-BY540iF800..RHD..E4AT..GEN201812-202204

DENSO,ZIMBABWE,W/PART NUMBER LABEL

main89560-BY541iF800..RHD..E4AT..GEN202204-202306

DENSO,ZIMBABWE,W/PART NUMBER LABEL

main89560-BYW20supersedes 89560-BZW51iF800..LHD..5F..GEN202009-202204

DENSO,COSTA RICA,W/PART NUMBER LABEL

main89560-BYW21supersedes 89560-BZW51iF800..LHD..5F..GEN202204-202504

DENSO,COSTA RICA,W/PART NUMBER LABEL

main89560-BYW30iF800..RHD..E4AT..HI..GEN202101-202204

DENSO,MALAYSIA,W/PART NUMBER LABEL

main89560-BYW31iF800..RHD..E4AT..HI..GEN202204-202504

DENSO,MALAYSIA,W/PART NUMBER LABEL

main89560-BZT40supersedes 89560-BZW51iF800..LHD..5F..GEN201804-202204

FUJITSU TEN,PERU,W/PART NUMBER LABEL

main89560-BZT41supersedes 89560-BZW51iF800..LHD..5F..GEN202204-202504

DENSO,PERU,W/PART NUMBER LABEL

main89560-BZT51iF800..RHD..E4AT..GEN202204-202504

DENSO,ECUADOR,W/PART NUMBER LABEL

main89560-BZV81supersedes 89560-BZB90iF800..RHD..5F..GEN202204-202504

DENSO,NEPAL,W/PART NUMBER LABEL

main89560-BZX40supersedes 89560-BZZ81iF800..5F..GCC201804-202204

FUJITSU TEN,UAE,W/PART NUMBER LABEL

main89560-BZX41supersedes 89560-BZZ81iF800..5F..GCC202204-202401

DENSO,UAE,W/PART NUMBER LABEL

main89560-BZX50supersedes 89560-BZZ91iF800..E4AT..GCC201804-202204

FUJITSU TEN,UAE,W/PART NUMBER LABEL

main89560-BZX51supersedes 89560-BZZ91iF800..E4AT..GCC202204-202401

DENSO,UAE,W/PART NUMBER LABEL

main89560-BZZ70supersedes 89560-BZV50iF800..E4AT..IDN201810-202108

FUJITSU TEN,INDONESIA(FROM '18/10),W/PART NUMBER LABEL

9004A11240

main9004A-11240

3 parts on this diagram · 1 diagram in section
