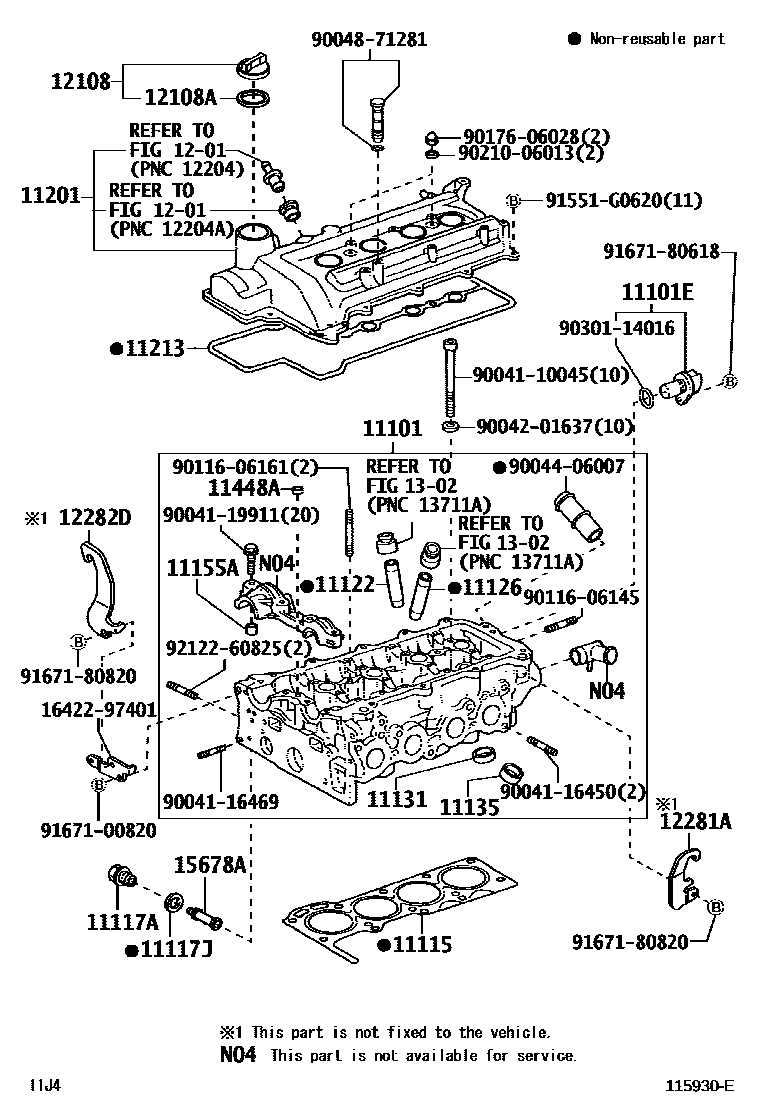

Toyota RUSH — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ESENSOR, CAM POSITION
11115GASKET, CYLINDER HEAD
T=0.41,NIPPON GASKET
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
11131SEAT, INTAKE VALVE
STD
11135SEAT, EXHAUST VALVE
STD
11155APIN, RING W/HEAD
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11448AORIFICE, CYLINDER HEAD OIL
1201VENTILATION HOSE
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
BLACK
SILVER
12282DHANGER, ENGINE, NO.2
BLACK
SILVER
1302CAMSHAFT & VALVE
15678AFILTER, OIL CONTROL VALVE
1642297401PIPE, RADIATOR TANK, LOWER NO.2
main16422-97401
9004110045
main90041-10045
9004116450
main90041-16450
9004116469
main90041-16469
9004119911
main90041-19911
9004201637
main90042-01637
9004406007
main90044-06007
9004871281
main90048-71281
9011606145
main90116-06145
9011606161
main90116-06161
9017606028
main90176-06028
9021006013
main90210-06013
9030114016
main90301-14016
91551G0620
main91551-G0620
9167100820
main91671-00820
9167180618
main91671-80618
9167180820
main91671-80820
9212260825
main92122-60825
38 parts on this diagram · 1 diagram in section
CYLINDER HEAD for Toyota RUSH
This section contains 38 genuine Toyota parts for the CYLINDER HEAD system of the Toyota RUSH. Key components include: HEAD SUB-ASSY, CYLINDER, SENSOR, CAM POSITION, GASKET, CYLINDER HEAD, PLUG, W/HEAD TAPER SCREW, NO.1, GASKET(FOR CYLINDER HEAD SCREW PLUG).
