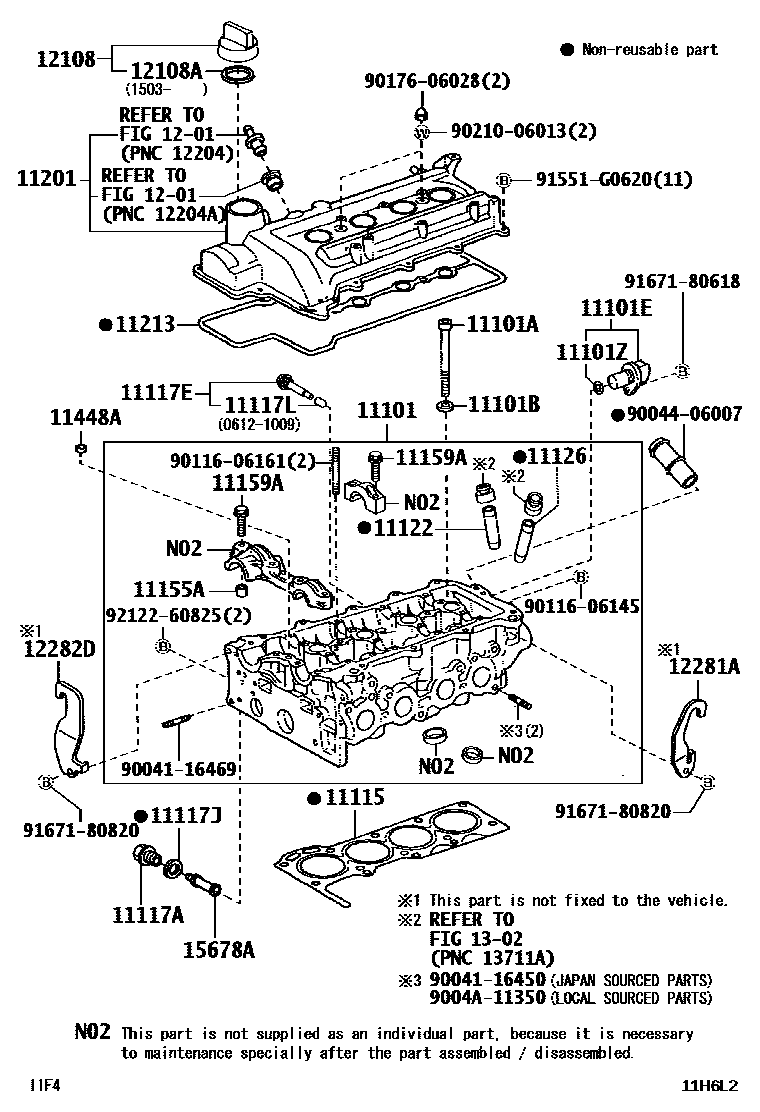

Toyota RUSH — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101ZO RING, CAM POSITION SENSOR
11115GASKET, CYLINDER HEAD
T=0.41
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11122BUSH, INTAKE VALVE GUIDE
STD,REPAIR
O/S 0.05,REPAIR
11126BUSH, EXHAUST VALVE GUIDE
STD,REPAIR
O/S 0.05,REPAIR
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
JAPAN SOURCED PARTS
11448AORIFICE, CYLINDER HEAD OIL
1201VENTILATION HOSE
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
BLACK
SILVER GRAY
12282DHANGER, ENGINE, NO.2
BLACK
SILVER GRAY
1302CAMSHAFT & VALVE
15678AFILTER, OIL CONTROL VALVE
9004116450
main90041-16450
9004116469
main90041-16469
9004406007
main90044-06007
9004A11350
main9004A-11350
9011606145
main90116-06145
9011606161
main90116-06161
9017606028
main90176-06028
9021006013
main90210-06013
91551G0620
main91551-G0620
9167180618
main91671-80618
9167180820
main91671-80820
9212260825
main92122-60825
36 parts on this diagram · 1 diagram in section
CYLINDER HEAD for Toyota RUSH
This section contains 36 genuine Toyota parts for the CYLINDER HEAD system of the Toyota RUSH. Key components include: HEAD SUB-ASSY, CYLINDER, BOLT(FOR CYLINDER HEAD SET), WASHER, PLATE(FOR CYLINDER HEAD SET), SENSOR, CAM POSITION, O RING, CAM POSITION SENSOR.
