Toyota RUSH — CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25,REPAIR
11711BEARING, CRANKSHAFT
MARK2
MARK3
MARK4
MARK5
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
O/S 0.125,REPAIR
O/S 0.25,REPAIR
13011RING SET, PISTON
STD
O/S 0.50,JAPAN SOURCED PARTS
O/S 0.50,LOCAL SOURCED PARTS
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
STD
O/S 0.50,JAPAN SOURCED PARTS
O/S 0.50,JAPAN SOURCED PARTS
O/S 0.50,LOCAL SOURCED PARTS
13201ROD SUB-ASSY, CONNECTING
JAPAN SOURCED PARTS
LOCAL SOURCED PARTS
13202BEARING SET, CONNECTING ROD
U/S 0.25,REPAIR
U/S 0.25,LOCAL SOURCED PARTS
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
LOCAL SOURCED PARTS
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
13457RING, FLYWHEEL SPACER
13471PULLEY, CRANKSHAFT
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
9004105255
main90041-05255
9004105395
main90041-05395
9004105445
main90041-05445
9004250196
main90042-50196

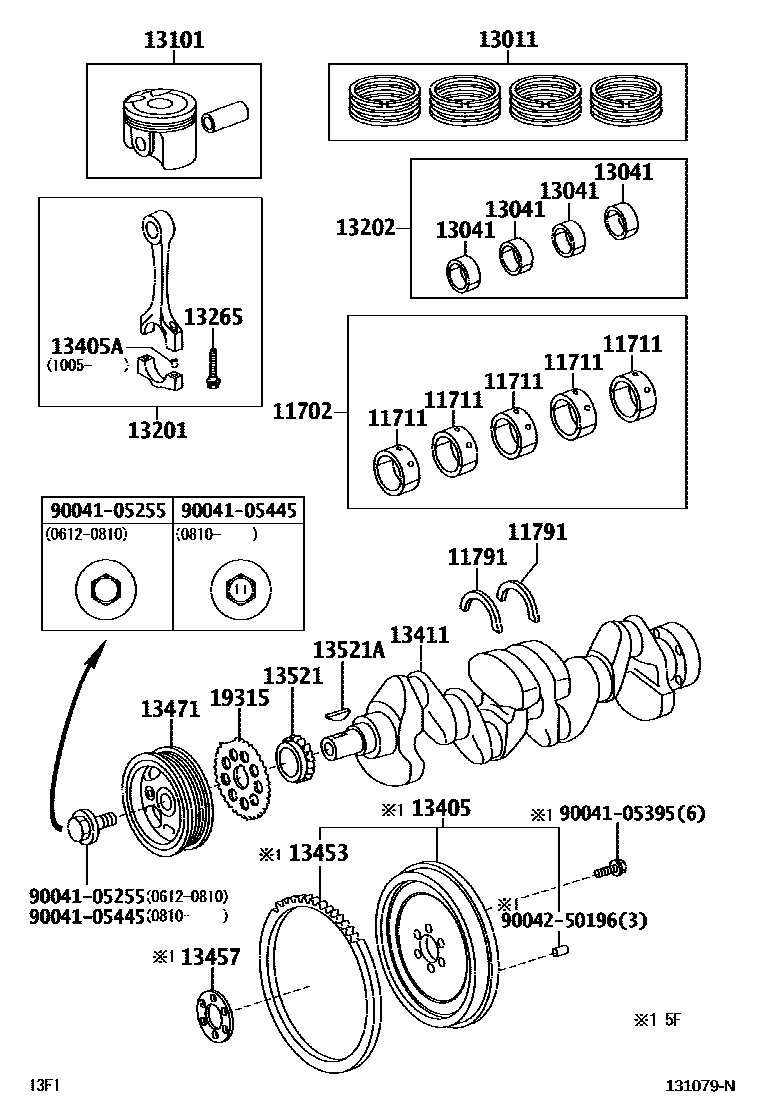

22 parts on this diagram · 1 diagram in section
CRANKSHAFT & PISTON for Toyota RUSH
This section contains 22 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota RUSH. Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
