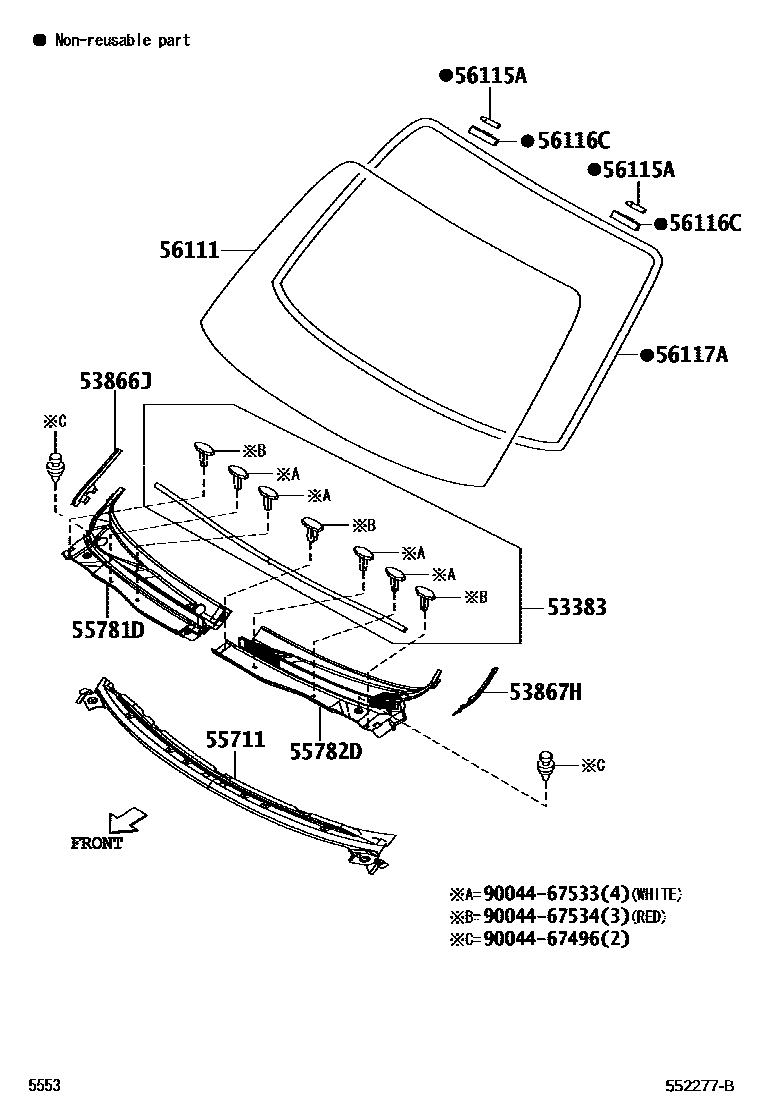

Toyota RUSH — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-B4011i200811

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53868-B4010i200811

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53869-B4010i200811

55711PANEL, COWL TOP, OUTER

main55711-B4010i200811

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-B4020i200811-200911

main55781-B4021i201605

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-B4020i200811-200911

main55782-B4021i201605

56111GLASS, WINDSHIELD

main56101-B4041i200811

W/INNER MIRROR BASE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-B5020×2i200811

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2i200811

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B1010i200811

L=3795

9004467496

main90044-67496

9004467533

main90044-67533

9004467534

main90044-67534

13 parts on this diagram · 2 diagrams in section

COWL PANEL & WINDSHIELD GLASS for Toyota RUSH

This section contains 15 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota RUSH. Key components include: SEAL, HOOD TO COWL TOP, FRONT FENDER APRON & DASH PANEL, SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, PANEL SUB-ASSY, COWL TOP, INNER.
