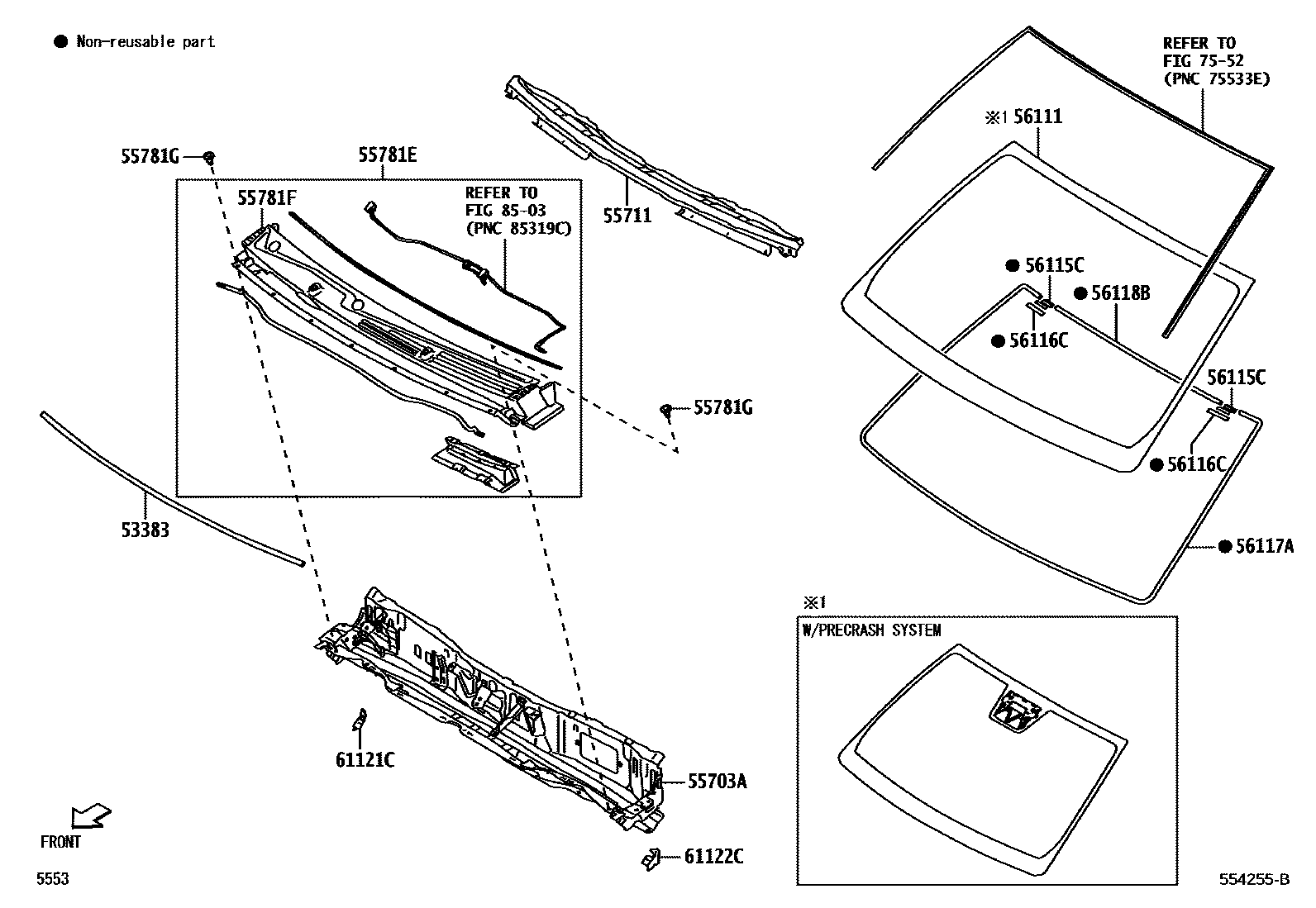

Toyota RUSH — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-BZ090iF850201812-202310

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ700iF850201812-202310

55711PANEL, COWL TOP, OUTER

main55711-BZ290iF850201812-202310

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-BZ140iF850201812-202310

55781FLOUVER, COWL TOP VENTILATOR

main55781-BZ250iF850201812-202310

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67579-C2×2iF850201812-202310

BLACK

56111GLASS, WINDSHIELD

main56111-BZ531iF850201812-202310

main56101-BZ150iF850..EXT201812-202310

WITH(PRE-COLLISION SYSTEM)

56115CSTOPPER, WINDSHIELD GLASS

main56115-97402×2iF850201812-202310

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2iF850201812-202310

56117ADAM, WINDOW GLASS ADHESIVE

main56117-BZ210iF850201812-202310

L=2966

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-BZ230iF850201812-202310

L=760

61121CPANEL, COWL SIDE, OUTER RH

main61121-BZ050iF850201812-202310

61122CPANEL, COWL SIDE, OUTER LH

main61122-BZ050iF850201812-202310

7552

8503

15 parts on this diagram · 1 diagram in section
